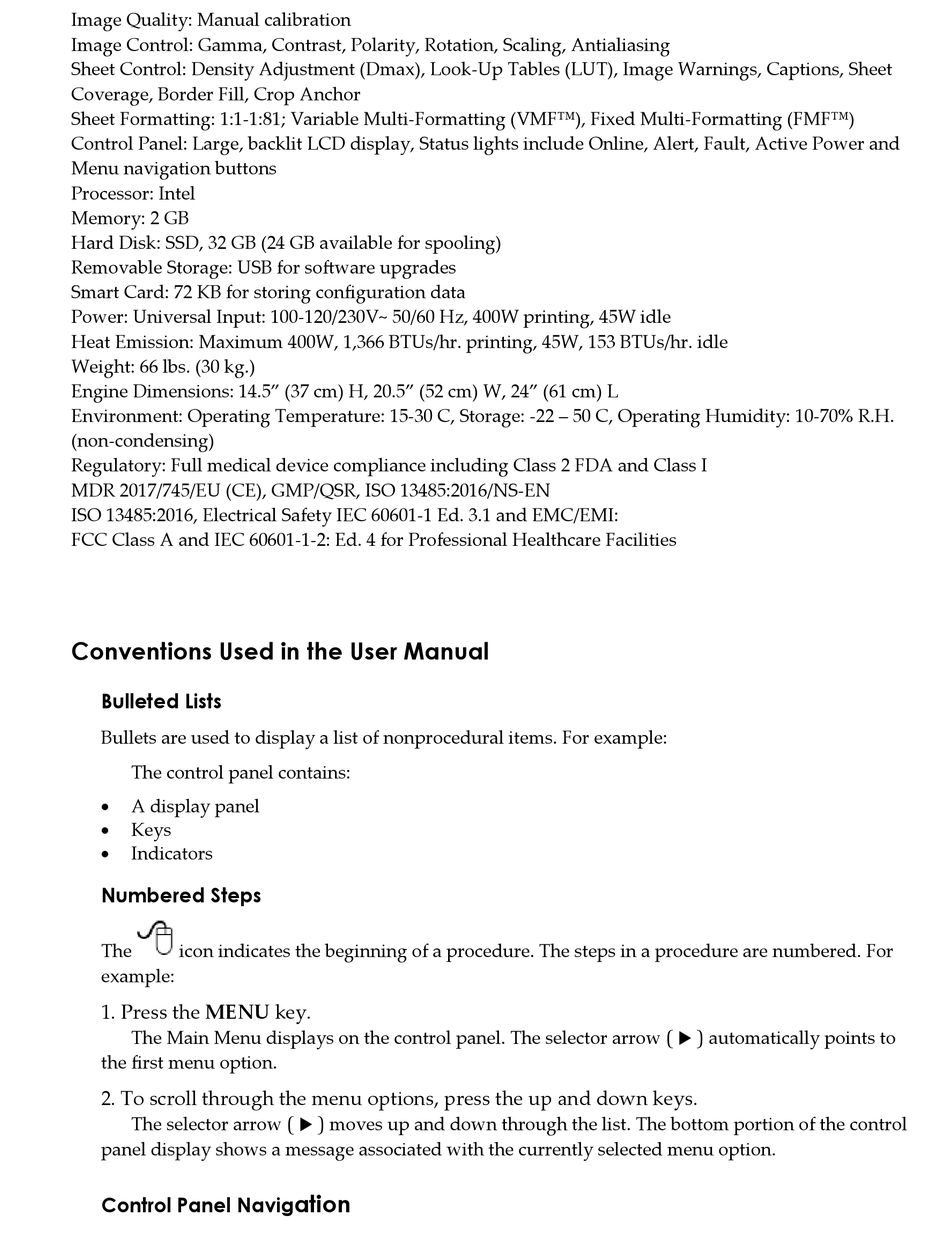

Codonics HORIZON G1 Bedienungsanleitung Seite 7

Image Quality: Manual calibration
Image Control: Gamma, Contrast, Polarity, Rotation, Scaling, Antialiasing
Sheet Control: Density Adjustment (Dmax), Look-Up Tables (LUT), Image Warnings, Captions, Sheet
Coverage, Border Fill, Crop Anchor
Sheet Formatting: 1:1-1:81; Variable Multi-Formatting (VMF™), Fixed Multi-Formatting (FMF™)
Control Panel: Large, backlit LCD display, Status lights include Online, Alert, Fault, Active Power and
Menu navigation buttons
Processor: Intel
Memory: 2 GB
Hard Disk: SSD, 32 GB (24 GB available for spooling)
Removable Storage: USB for software upgrades
Smart Card: 72 KB for storing configuration data
Power: Universal Input: 100-120/230V~ 50/60 Hz, 400W printing, 45W idle
Heat Emission: Maximum 400W, 1,366 BTUs/hr. printing, 45W, 153 BTUs/hr. idle
Weight: 66 lbs. (30 kg.)
Engine Dimensions: 14.5" (37 cm) H, 20.5" (52 cm) W, 24" (61 cm) L
Environment: Operating Temperature: 15-30 C, Storage: -22 – 50 C, Operating Humidity: 10-70% R.H.
(non-condensing)
Regulatory: Full medical device compliance including Class 2 FDA and Class I
MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN
ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI:
FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities
Conventions Used in the User Manual
Bulleted Lists
Bullets are used to display a list of nonprocedural items. For example:
The control panel contains:
•
A display panel
•
Keys
•
Indicators
Numbered Steps
The icon indicates the beginning of a procedure. The steps in a procedure are numbered. For
example:
1. Press the MENU key.
The Main Menu displays on the control panel. The selector arrow
the first menu option.
2. To scroll through the menu options, press the up and down keys.
The selector arrow
panel display shows a message associated with the currently selected menu option.
Control Panel Navig
( )

moves up and down through the list. The bottom portion of the control
ation
( )

automatically points to
