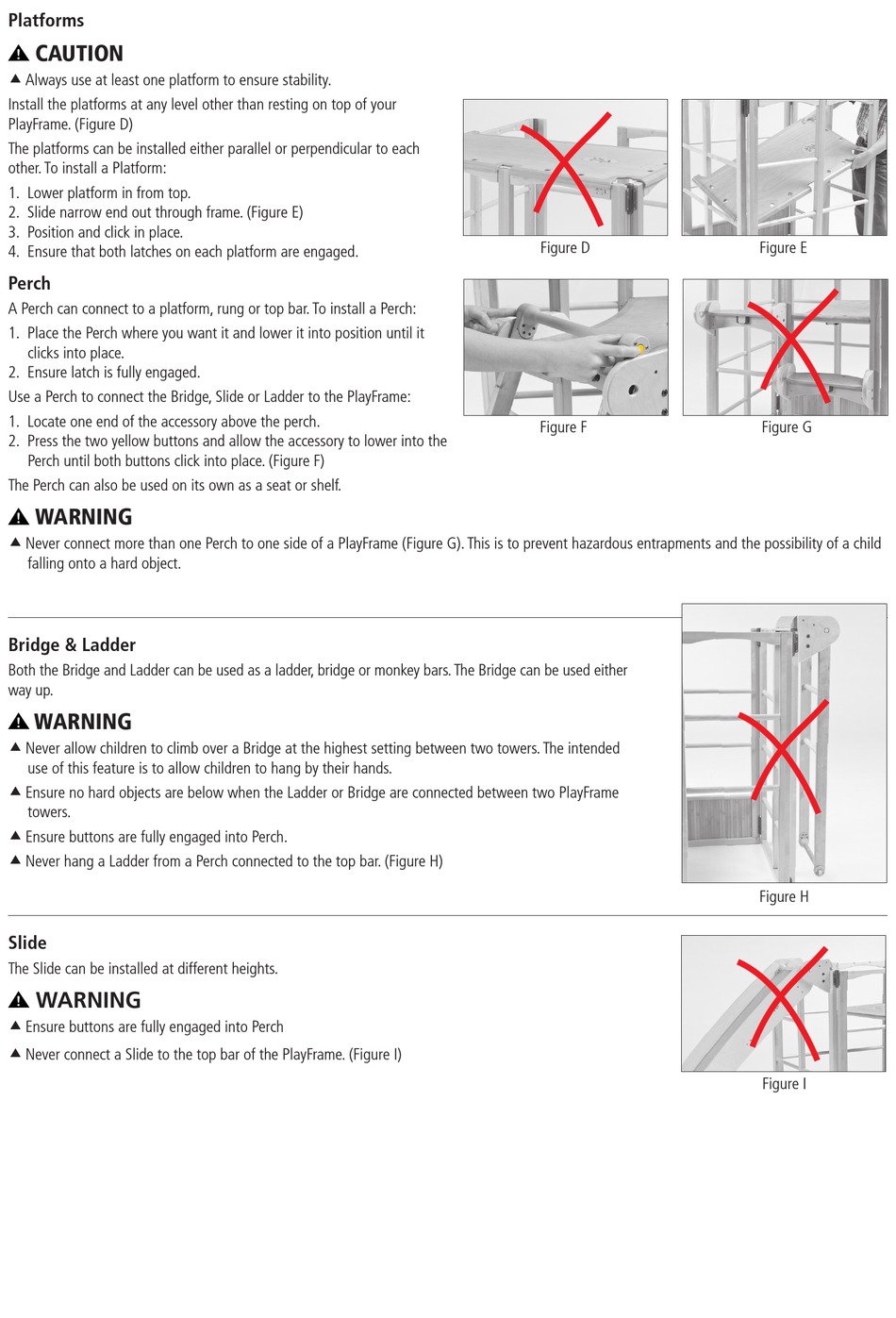

Platforms
CAUTION
c Always use at least one platform to ensure stability.
Install the platforms at any level other than resting on top of your
PlayFrame. (Figure D)
The platforms can be installed either parallel or perpendicular to each
other. To install a Platform:
1. Lower platform in from top.
2. Slide narrow end out through frame. (Figure E)
3. Position and click in place.
4. Ensure that both latches on each platform are engaged.
Perch
A Perch can connect to a platform, rung or top bar. To install a Perch:
1. Place the Perch where you want it and lower it into position until it
clicks into place.
2. Ensure latch is fully engaged.
Use a Perch to connect the Bridge, Slide or Ladder to the PlayFrame:
1. Locate one end of the accessory above the perch.
2. Press the two yellow buttons and allow the accessory to lower into the
Perch until both buttons click into place. (Figure F)
The Perch can also be used on its own as a seat or shelf.
WARNING
c Never connect more than one Perch to one side of a PlayFrame (Figure G). This is to prevent hazardous entrapments and the possibility of a child
falling onto a hard object.
Bridge & Ladder
Both the Bridge and Ladder can be used as a ladder, bridge or monkey bars. The Bridge can be used either
way up.
WARNING
c Never allow children to climb over a Bridge at the highest setting between two towers. The intended
use of this feature is to allow children to hang by their hands.
c Ensure no hard objects are below when the Ladder or Bridge are connected between two PlayFrame
towers.
c Ensure buttons are fully engaged into Perch.
c Never hang a Ladder from a Perch connected to the top bar. (Figure H)
Slide
The Slide can be installed at different heights.
WARNING
c Ensure buttons are fully engaged into Perch
c Never connect a Slide to the top bar of the PlayFrame. (Figure I)
Figure D
Figure F
Figure E
Figure G
Figure H
Figure I
