WARNING
Failure to follow these warnings and the assembly instruc-
tions could result in serious injury or death.
c The PlayFrame is intended for use by children of immature judgment.
Only for supervised use in childcare or domestic settings.
c The PlayFrame is appropriate for children aged 3-6 years, not
weighing more than 35kg each.
c Not suitable for children under 36 months. Risk of finger entrapment.
c The Square is suitable for use by up to 10 children, and the Grand
PlayFrame is suitable for use by up to 20 children.
c To reduce injuries through falls, never install over asphalt, concrete
or any other hard surface. Mats or other surfacing with a minimum
fall height rating of 1.5 meters (as per EN 1177), extending at least
1 metre around your PlayFrame must be used at all times. PlayFrame
mats are recommended.
Assembly
The PlayFrame must be assembled by adults. The steps below will help you set up your PlayFrame quickly and safely.
Mats
• If using PlayFrame mats, we recommend laying them down first with no gaps between them, and then erecting the PlayFrame on top of the
mats. (Mats other than PlayFrame mats may not be firm enough to allow this.)
• Ensure that the mats extend at least 1 metre all around the PlayFrame.

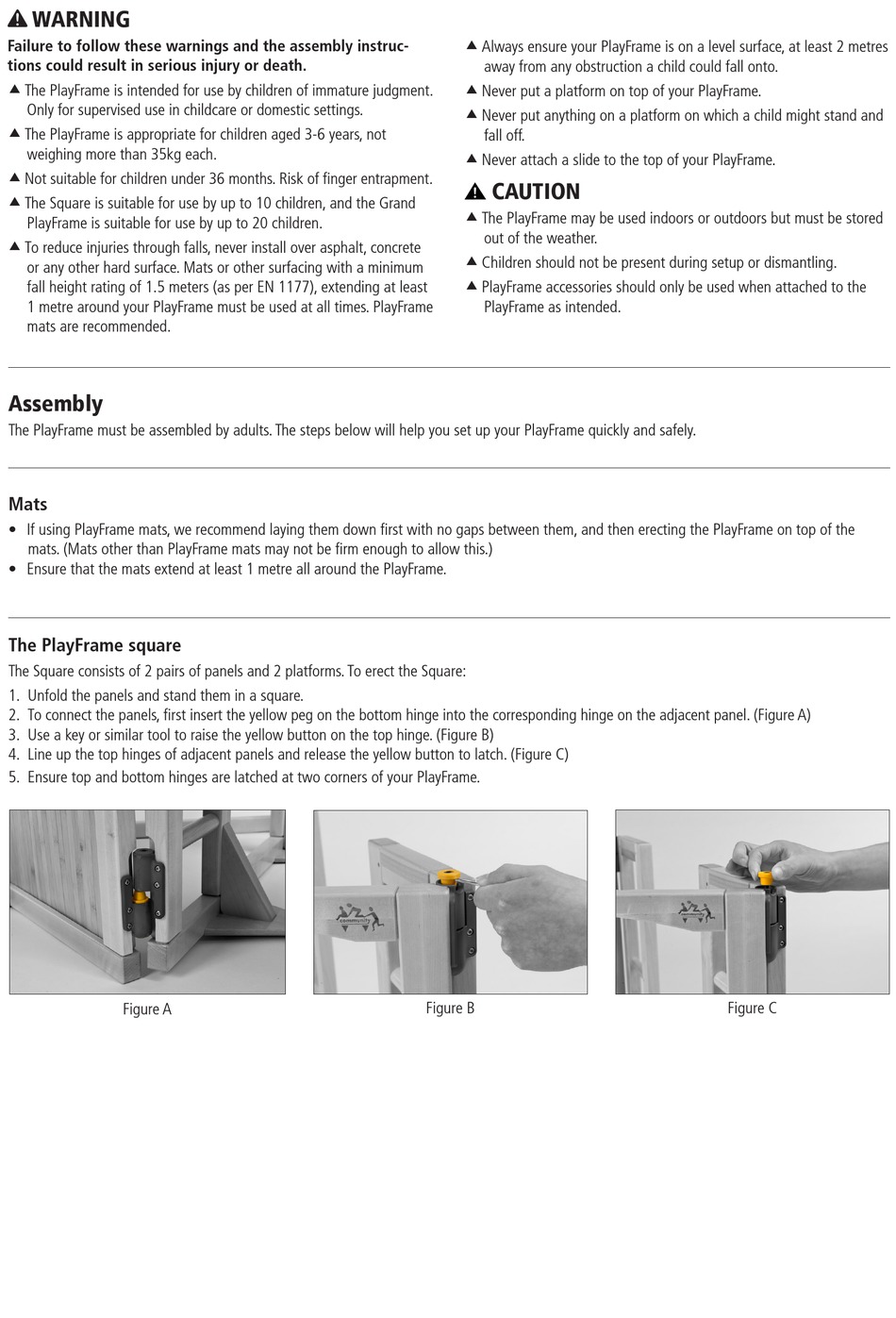

The PlayFrame square
The Square consists of 2 pairs of panels and 2 platforms. To erect the Square:
1. Unfold the panels and stand them in a square.
2. To connect the panels, first insert the yellow peg on the bottom hinge into the corresponding hinge on the adjacent panel. (Figure A)
3. Use a key or similar tool to raise the yellow button on the top hinge. (Figure B)
4. Line up the top hinges of adjacent panels and release the yellow button to latch. (Figure C)
5. Ensure top and bottom hinges are latched at two corners of your PlayFrame.
Figure A
c Always ensure your PlayFrame is on a level surface, at least 2 metres
away from any obstruction a child could fall onto.
c Never put a platform on top of your PlayFrame.
c Never put anything on a platform on which a child might stand and
fall off.
c Never attach a slide to the top of your PlayFrame.
CAUTION
c The PlayFrame may be used indoors or outdoors but must be stored
out of the weather.
c Children should not be present during setup or dismantling.
c PlayFrame accessories should only be used when attached to the
PlayFrame as intended.
Figure B Figure C
