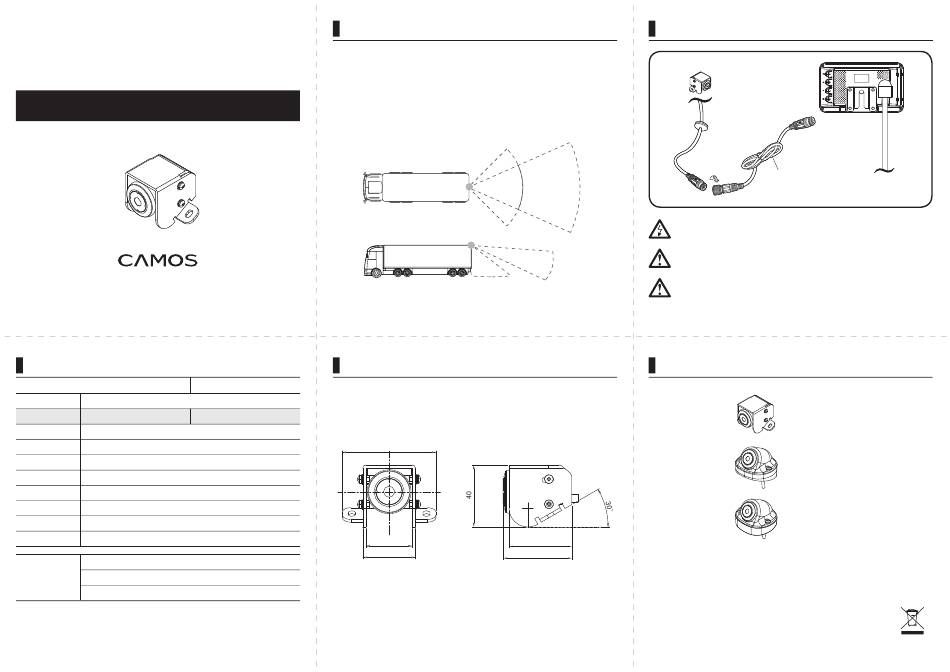

INSTRUCTION MANUAL
Thank you for purchasing this product.
For correct usages and application,
please read this instruction manual thoroughly
CM-5180M
1.3MEGA HD MULTI-VUE
SPECIFICATIONS
Drive view
Pick-up Device 1.3Mega CMOS
80(H) / 60(V) / 95(D)
View of angle
Total Pixels 1280(H) x 960(V)
Min. Illumination 0.2Lux (F=2.4)
Resolution 1000 TV Lines
Input Voltage DC12V ~ 24V
Operating Temp. -20˚C ~ 60˚C
Storage Temp. -30˚C ~ 70˚C
Dimension 28(Ø) x 33(D) mm (w/o bracket)
Weight 44.5g (w/o bracket)
Box Contents Camera ........................................................................................................... 1EA
Screws set ................................................................................................... 1SET
Instruction Manual ................................................................................... 1EA
* Design and specifications are subject to change without notice.
FEATURE
• One Lens / Two view [ Drive view 80˚(H) / Rear view 120˚(H) ]
• 1.3Mega color CMOS
• Waterproof (IP68)
• Metal case
• Compact size
DIMENSIONS
Rear view
120(H) / 90(V) /140(D)
60
30
34
parking 120°(H)
CAM
driving 80° (H)
CAM
driving 60° (V)
parking 90°(V)
40
44
CONNECTION
CAMERA
Extension Cable
for Camera
(Optional)
Before making the connection, disconnect the ground terminal of
the car battery to avoid short circuiting.
The plug should be fully inserted into the connector, should be
check pin arrangement before inserting. A loose connection may
be caused mallfunction or problem of the unit.
When use extension cable, connect it as follows arrow direction.
BRACKET TYPE
STANDARD TYPE
TYPE-A
TYPE-B
MONITOR
(Optional)
ver. 1.1
PRINTED IN KOREA
