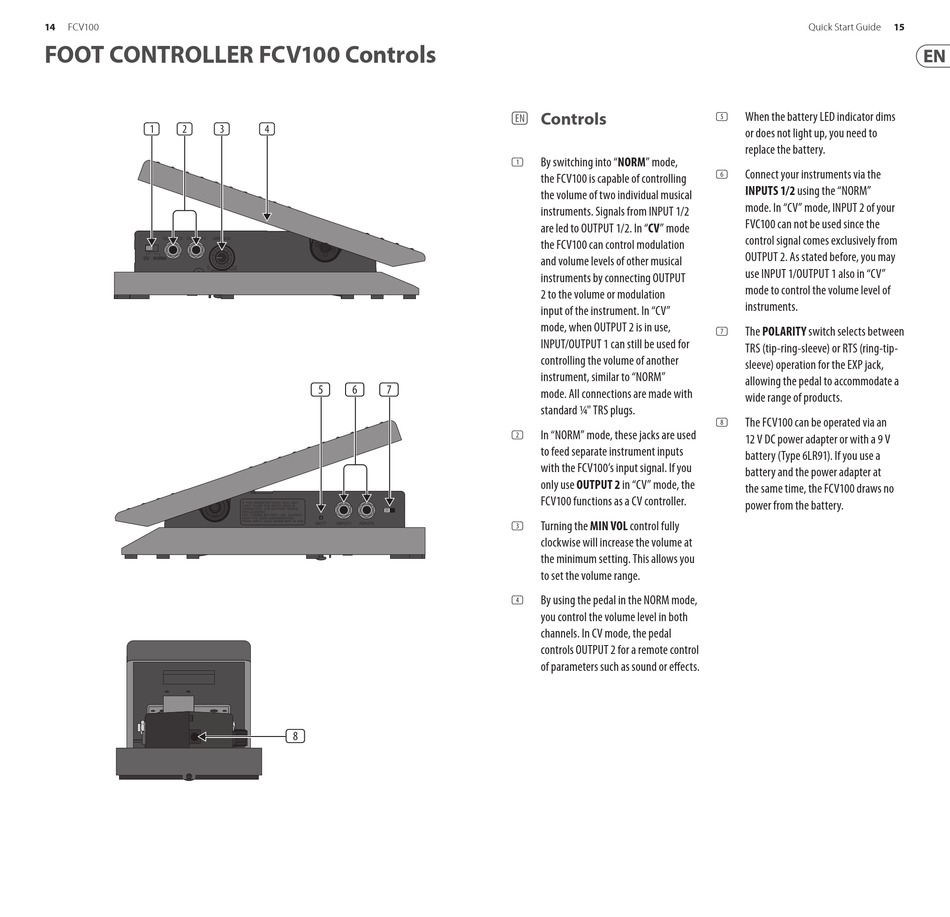

FOOT CONTROLLER FCV100 Controls
(1) (2) (3)
CV NORM
(4)
(5) (6) (7)
(8)
(EN) Controls
By switching into "NORM" mode,
(1)
the FCV100 is capable of controlling
the volume of two individual musical
instruments. Signals from INPUT 1/2
are led to OUTPUT 1/2. In "CV" mode
the FCV100 can control modulation
and volume levels of other musical
instruments by connecting OUTPUT
2 to the volume or modulation
input of the instrument. In "CV"
mode, when OUTPUT 2 is in use,
INPUT/OUTPUT 1 can still be used for
controlling the volume of another
instrument, similar to "NORM"
mode. All connections are made with
standard ¼" TRS plugs.
In "NORM" mode, these jacks are used
(2)
to feed separate instrument inputs
with the FCV100's input signal. If you
only use OUTPUT 2 in "CV" mode, the
FCV100 functions as a CV controller.
Turning the MIN VOL control fully
(3)
clockwise will increase the volume at
the minimum setting. This allows you
to set the volume range.
By using the pedal in the NORM mode,
(4)
you control the volume level in both
channels. In CV mode, the pedal
controls OUTPUT 2 for a remote control
of parameters such as sound or effects.
15
Quick Start Guide
When the battery LED indicator dims
(5)
or does not light up, you need to
replace the battery.
Connect your instruments via the
(6)
INPUTS 1/2 using the "NORM"
mode. In "CV" mode, INPUT 2 of your
FVC100 can not be used since the
control signal comes exclusively from
OUTPUT 2. As stated before, you may
use INPUT 1/OUTPUT 1 also in "CV"
mode to control the volume level of
instruments.
The POLARITY switch selects between
(7)
TRS (tip-ring-sleeve) or RTS (ring-tip-
sleeve) operation for the EXP jack,
allowing the pedal to accommodate a
wide range of products.
The FCV100 can be operated via an
(8)
12 V DC power adapter or with a 9 V
battery (Type 6LR91). If you use a
battery and the power adapter at
the same time, the FCV100 draws no
power from the battery.
