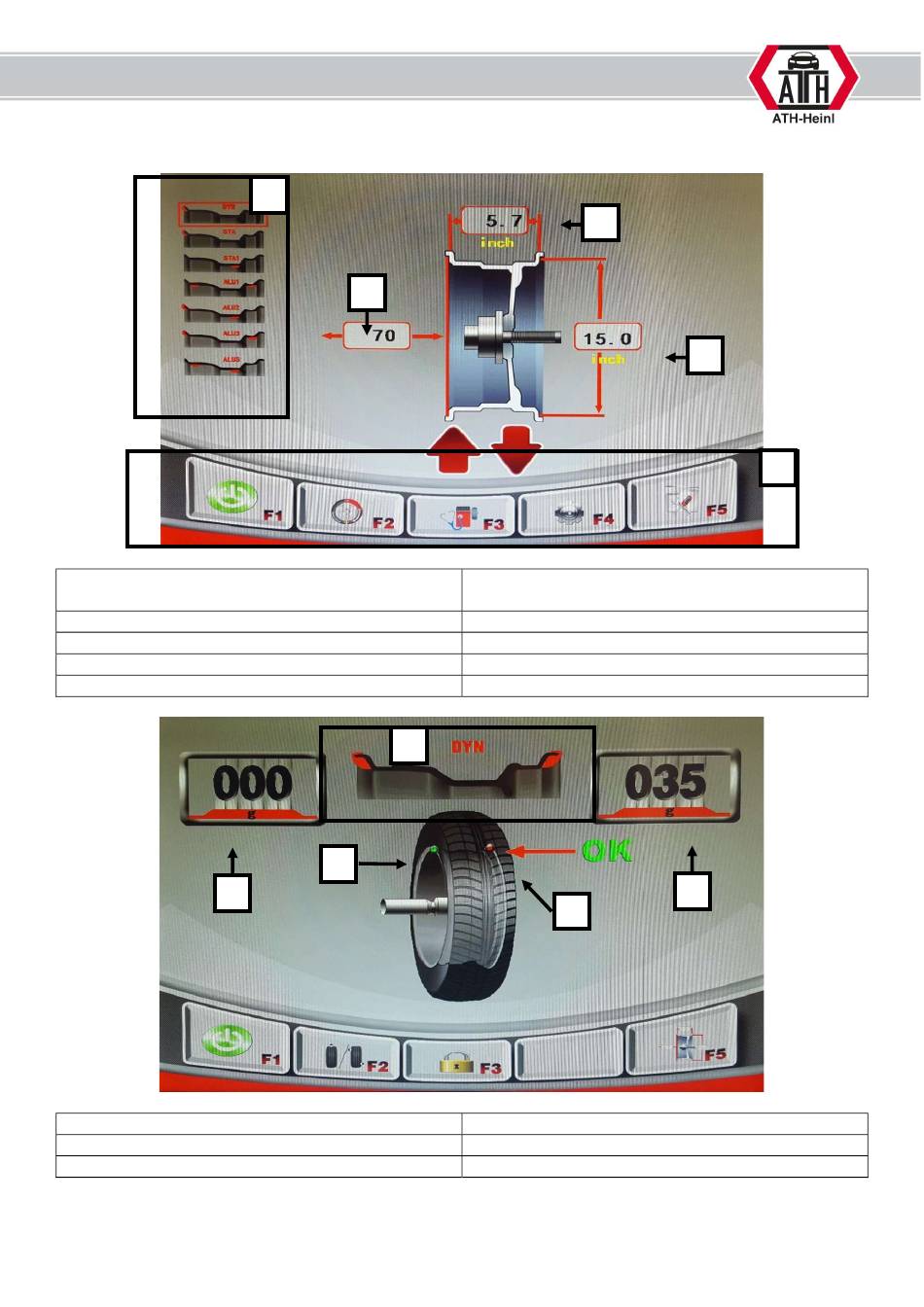

Display of measurement values:
1) Selecting the balancing programmes
3) Wheel rim diameter
5) Main menu
F2) Optimisation programme
F4) Settings
5
5) Display INTERNAL imbalance
7) Display position of the INTERNAL imbalance
9) Display weight position
® Copyright ATH-Heinl GmbH & Co. KG, All rights reserved / Misprints and technical changes reserved / As of: 2020-03
1
2
9
7
Manufacturer ATH-Heinl GmbH & CO.KG
4
2) Gap between the machine and the first weight
point
4) Wheel rim width
F1) Start
F3) Diagnostics
F5) Calibration programme
8
6) Display EXTERNAL imbalance
8) Display position of the EXTERNAL imbalance
