10. Mark out the fixing point for the REHAU
fixing unit (see Fig. 4).
11. Remove the RAUTITAN radiator connecting
bend fittings from the ball valve block again.
12. Drill the fixing hole.
13. Attach the RAUTITAN radiator connecting
bend fittings to the ball valve block again.
14. Screw on the union nuts by hand.
15. Screw the REHAU fixing unit to the floor
using the accompanying fixing set (see Fig. 5).
16. Assemble the soft seal REHAU screw connec-
tions according to the enclosed assembly
instructions.
Push the REHAU screw connection set
G ¾ - 15 up to the stop.
17. Create the compression sleeve connection to
the heating pipes (see Fig. 6).
18. Carry out the leak test.
19. Fully insulate the pipe and fittings.

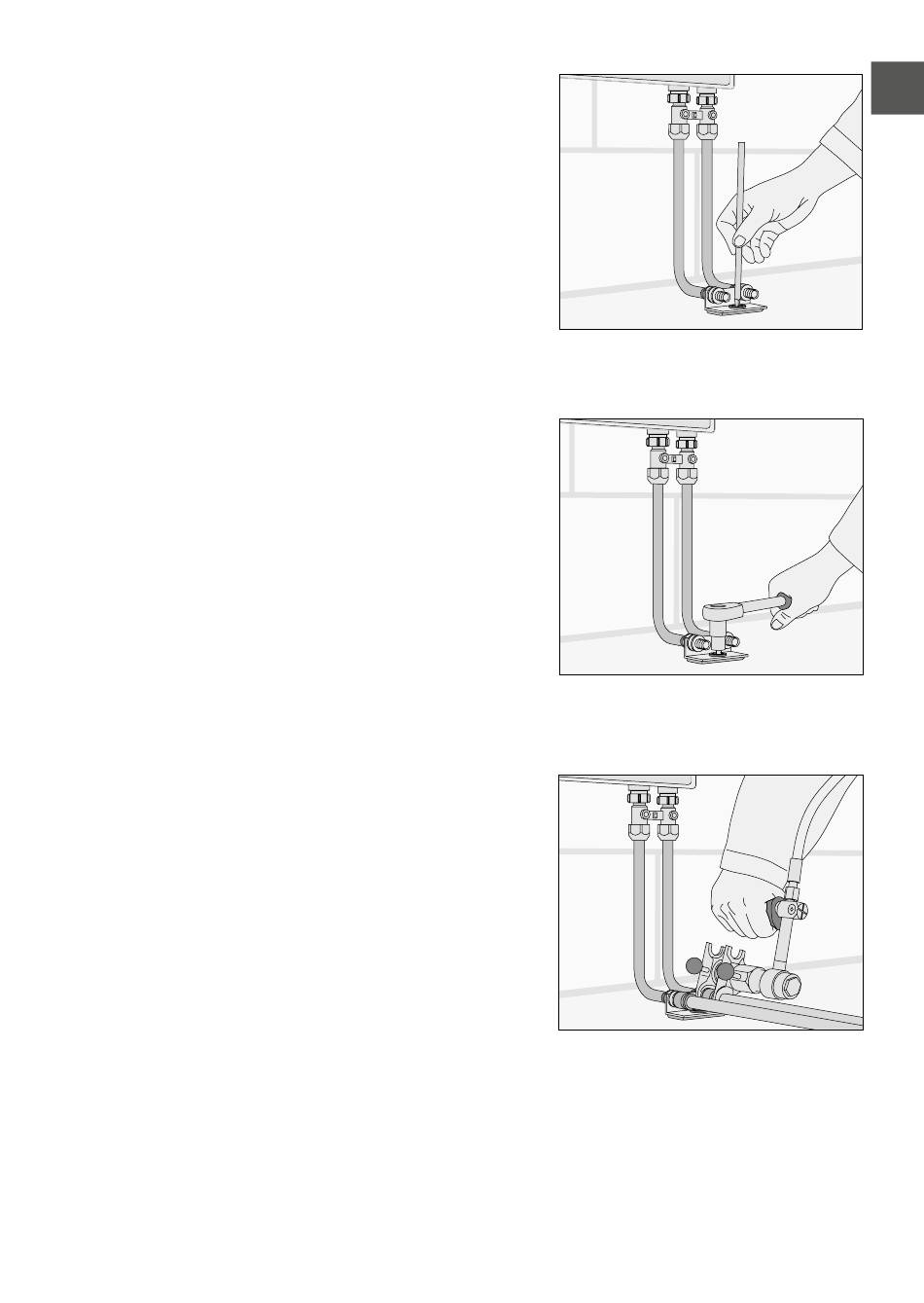

Fig. 4 Mark out the fixing point
Fig. 5 Screw in the fixing unit
Fig. 6 Create the compression
sleeve connection
