Energy meter 100A
direct connection

MECHANICAL DATA

6.2
Screw terminals:
- Depth of the terminals: 8mm
- Lengths of the wire stripping: 8mm
Screw head
:
- Voltage connection terminals (L1, L2, L3): screws with
countersunk head with hexagon socket and Pozidriv No. 2
- Neutral (N) connection terminal: screw/screws with countersunk
head with hexagon socket and Pozidriv No. 2
- Terminal boards in the upper part of the meter (input, impulse
output): screws with countersunk head with hexagon socket
Recommended torque
:
- Voltage connection terminals (L1, L2, L3): 3 Nm
- Neutral (N) connection terminal: 1 Nm
- Terminal boards in the upper part of the meter (input, impulse
output): 0.2 N/m
Maximum torque:
- Voltage connection terminals (L1, L2, L3): 4 Nm
- Neutral (N) connection terminal: 1,2 Nm
- Terminal boards in the upper part of the meter (input, impulse
output): 0.3 Nm
Terminal protection:
- The power terminals are protected with sliding and sealable
terminal front covers which are integrated in the device
Technical data sheet: IDP000207EN_01 Updated: -
Tomek GmbH - messtechnik@tomek.at - 01/61003-0
Codes: CE6DJ0DTCL1
Model: CONTO D6-Pd

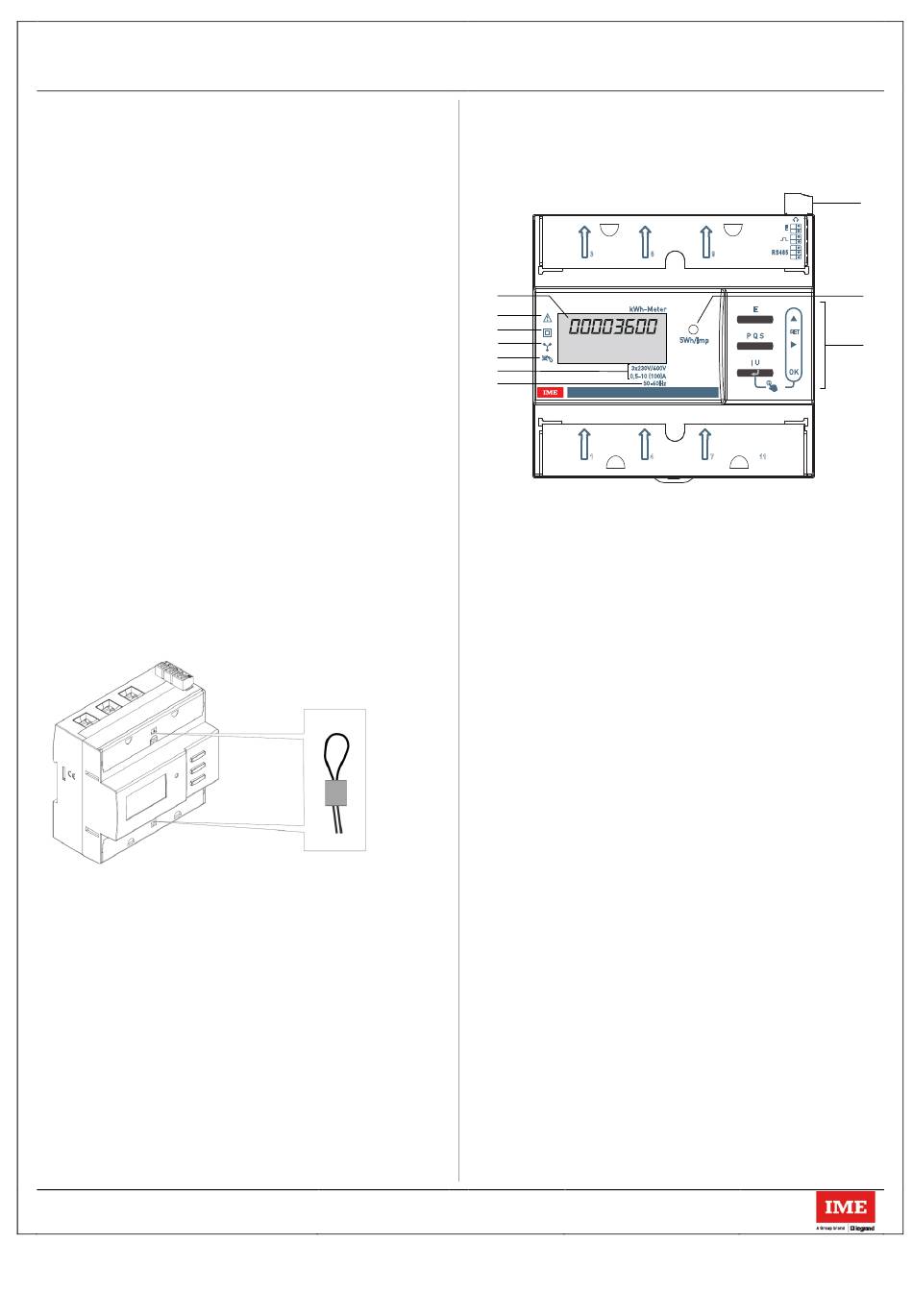

7. GENERAL FEATURES

Marking data:
Indelible marking
L1 L2
3
4
kWh-Meter
5
6
7
k W h
8
T
9
3x230V/400V
10 0,5-10 (100)A
50-60Hz
L1 L2
1
1. Keypad made up of 3 double-function pushbuttons
(display/configurations)
2. Metrological LED
3. Output connection terminals
4. LCD Display
5. Consult the user manual before installation
6. Double insulation
7. Connection on 4-wire three-phase line
8. Anti-rotation device (anti-decreasing)
9. Voltage/Current
10. Frequency
Created: 02/04/2019
(continues)
E
L3
6 9
E
SET
P Q S
5Wh/imp
I U
OK
3"
CONTO D6
L3 N
4 7 11
3
2
1
3 | 7
