Fastening without external fixing brackets

You need the following for fastening the charging station:
„
4 screws (diameter maximum 6 mm, screw head at least 8.5 mm, maximum 10.5 mm)
„
4 matching dowels

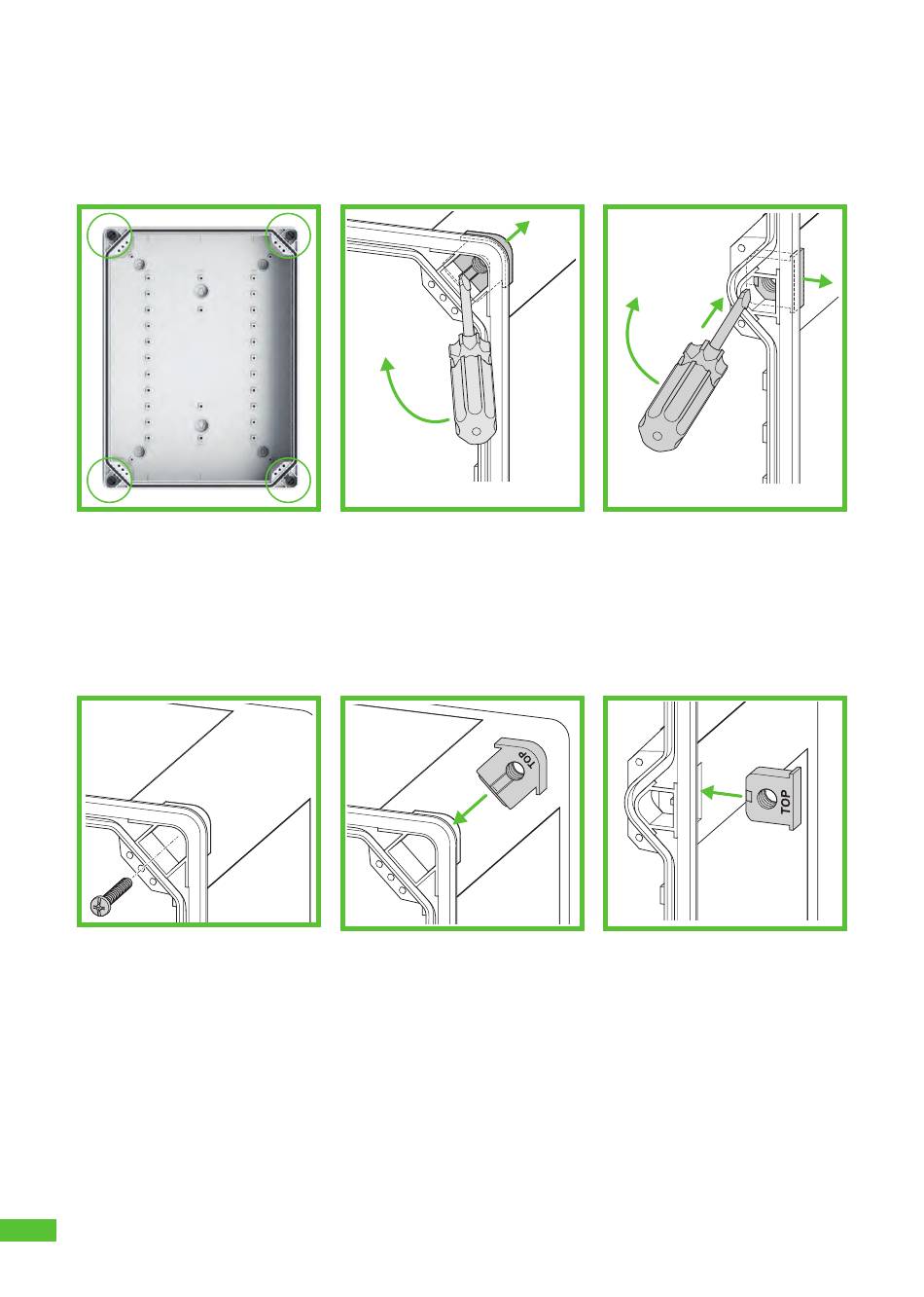

Figure 4: Fixing points
►
Mark the fixing points (Abb. 4).
►
Unscrew the housing cover.
►
Using the screwdriver, lever out the threaded inserts (Abb. 5 and Abb. 6).
►
Drill holes for the fixing points.
► ►
Push the dowel into the holes.
Figure 7: Mount the charging station
on the wall
►
Screw the charging station tight by screwing one screw each through the boreholes (Abb. 7).
►
Mount the threaded inserts (Abb. 8 and Abb. 9). The lettering "TOP" must point to the housing cover.
►
Screw on the housing cover of the charging station.
26
Figure 5: Lever out the threaded insert
(corner)
Figure 8: Mount the threaded insert
(corner)
Figure 6: Lever out the threaded insert
(side)
Figure 9: Mount the threaded insert
(side)
