Helios AIR1-KP Montage- Und Betriebsvorschrift Seite 11

Installation and Operating Instructions
Condensate pump AIR1-KP

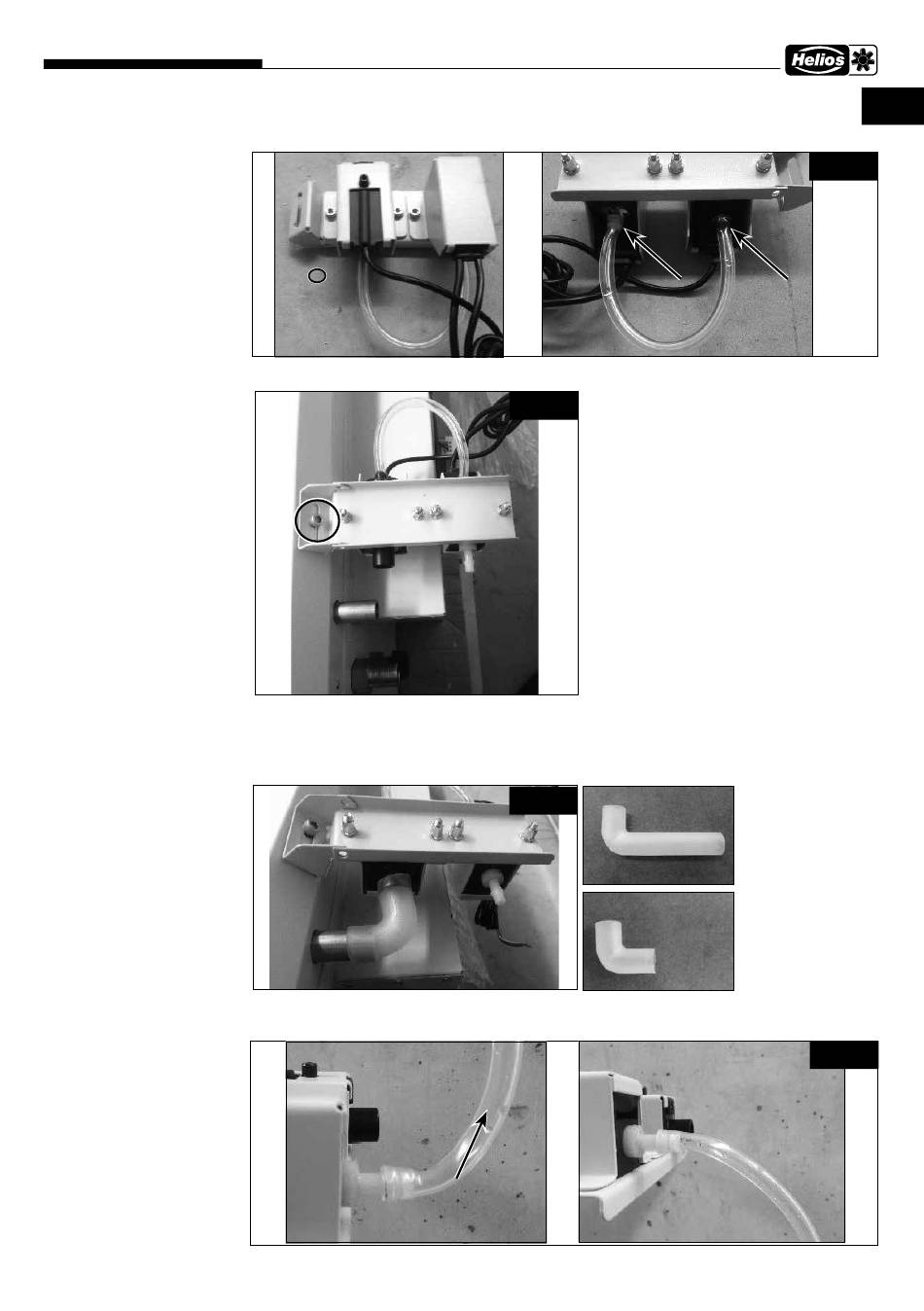

2. Connect the pump and float with a small hose, see Fig.8.
3. Mount the pump holder to the unit as follows, see Fig.9, view from below.
4. Use the large hose to connect the float unit and the condensate drain connector,
see Fig.10.
If necessary, the hose can be shortened on the long side.
Fix the long hose to the connector with the two provided cable ties.
The pump unit outlet hose must always be higher than the float unit, so that it does not
run dry, see Fig.11.
Fig.9
Fig.10
4
EN
Fig.8
Fig.11
X
