R911332623 | PSI 6xxx.256xx
Jumpers from X4.1
and X4.2 to X10.3
and X10.4 when
used with internal
power supply
When operated with
external power
supply: no jumpers
Fig. 2: I/O board
Bosch Rexroth AG

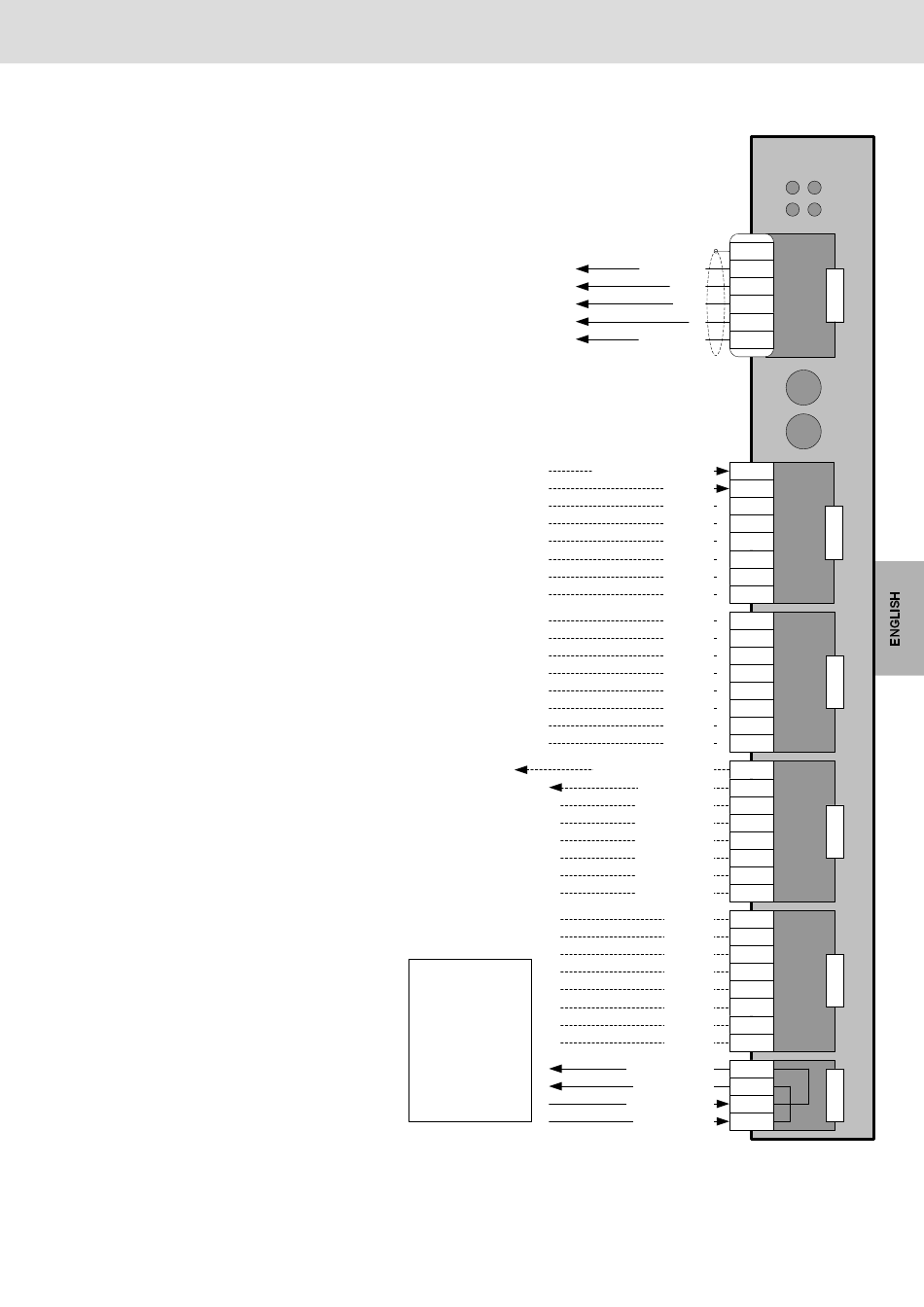

Connection diagram
1
RxD/TxD -P 3
Cntr-P 4
DGnd 5
VP 6
RxD/TxD -N 8
Weld contactor closed E00
Not used E01
Not used E 02
Not used E 03
Not used E 04
Not used E 05
Not used E 06
Not used E 07
Not used E 08
Not used E 09
Not used E 10
Not used E 11
Not used E 12
Not used E 13
Not used E 14
Not used E 15
Close Weld Contactor A 00
Magnet Valve A 01
Transformer 1 A 02
Transformer 2 A 03
Transformer 3 A 04
Transformer 4 A 05
Transformer 5 A 06
Transformer 6 A 07
Not used A 08
Not used A 09
Not used A 10
Not used A 11
Not used A 12
Not used A 13
Not used A 14
Not used A 15
24VDC external +24V
0VDC external 0 V
24VDC external +24V
0VDC external 0 V
27/39
X
1
5
X
1
4
X
1
3
X
1
2
X
1
1
X
1
0
