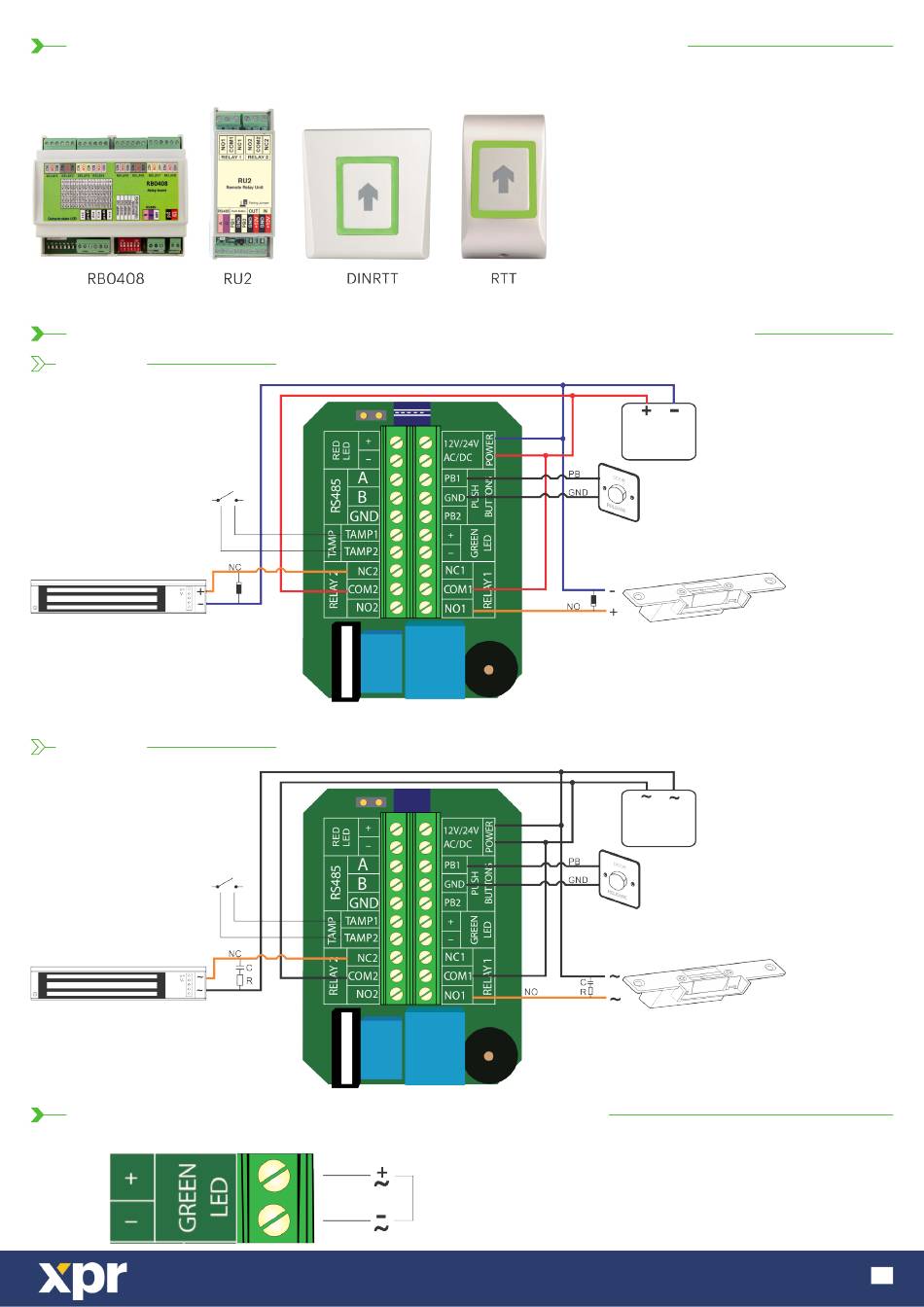

AVAILABLE ACCESSORIES/ ACCESSOIRES DISPONIBLES/ ACCESSORI DISPONIBILI/
ACCESORIOS DISPONIBLES/ WEITERES ZUBEHÖR/ BESCHIKBARE ACCESSOIRES
WIRING/ CÂBLAGE/ COLLEGAMENTO ELETTRICO/ CABLEADO/ VERDRAHTUNG/ BEDRADING
12 - 24 VDC(CC)
to alarm system
Electro Magnetic Lock
(DC powered)
Diode
ex. 1N4001
12 - 24 VAC(CA)
to alarm system
Electro Magnetic Lock
(AC powered)
C = 470 nF
R = 10K / ½W
VOLTAGE FREE LEDS/ LED SANS TENSION/ LED PRIVI DI TENSIONE/
LED LIBRES DE TENSIÓN/ POTENTIALFREIE LEDS/ SPANNINGSLOZE LEDS
LED
ex. 1N4001
R = 10K / ½W
12 - 24 V AC/DC (CA/CC)
www.xprgroup.com
DC Power
Supply
Exit Button
(NO, mechanical or relay
dry contact)
Electric Door Strike
(DC powered)
Diode
DC Power
Supply
Exit Button
(NO, mechanical or relay
dry contact)
Electric Door Strike
(AC powered)
C = 470 nF
3
