CONNECTING THE TCA QUADRANT ADD-ON AIRBUS
EDITION MODULES TO THE TCA QUADRANT AIRBUS
EDITION*
*Sold separately
In order to use the TCA Quadrant Add-On Airbus Edition modules, you m ust own a T C A
Quadrant Airbus Edition (sold separately). The TCA Quadrant Add-On Airbus Edition
modules are an extensi o n of the TCA Quadrant Airbus Edition throttle quadrant, and only
work when connected to both sides of the TCA Quadrant Airbus Edition.
This modularity adds new axes and action buttons, and lets you ex tend t he kinemat ics
(takeoff, in-flight and landing) of the TCA Quadrant Airbus Edition.

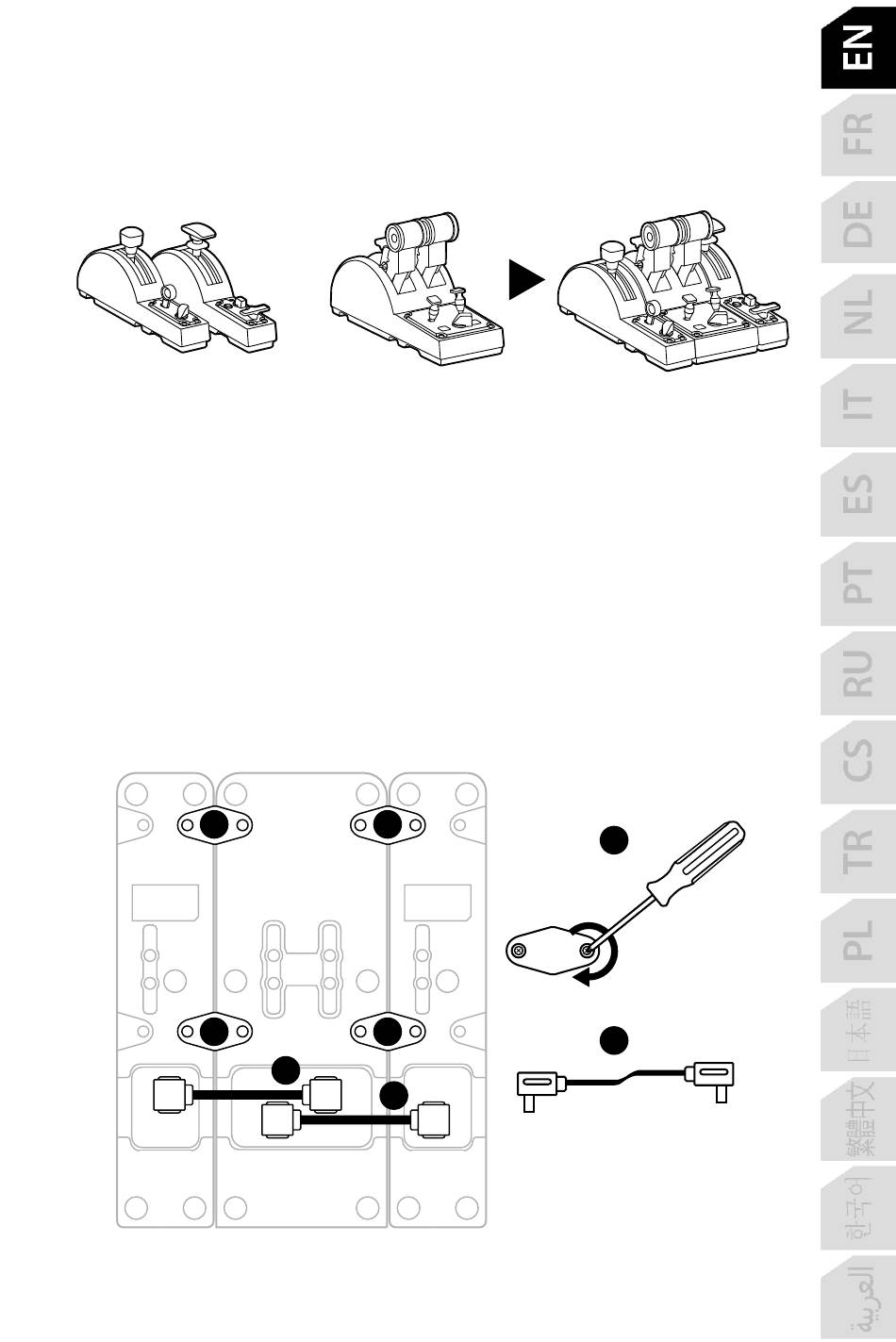

1. Turn all of the devices upside down and, using a screwdriver with the corresponding head
shape (not included), screw on the four attachment pieces included with the TCA
Quadrant Airbus Edition and the TCA Quadrant Add-On Airbus Edition modules, to attach
everything together.
2. Connect the speed brake module to the left of the TCA Quadrant Airbus Edition and t he
flaps module to the right, usi n g the SATA cables included with the TCA Quadrant Add-On
Airbus Edition.
