CONNECTING THE TCA QUADRANT AIRBUS EDITION
THROTTLE QUADRANT TO THE TCA QUADRANT ADD-ON
AIRBUS EDITION*
* Sold separately
The TCA Quadrant Airbus Edition throttle quadrant lets you connect t he additional T CA
Quadrant Add-On Airbus Edition modules (sold separately) on both sides of the TCA
Quadrant Airbus Edition.
This modularity adds new axes and action buttons and lets you expand the takeoff, in-flight
and landing kinematics for the TCA Quadrant Airbus Edition throttle quadrant.

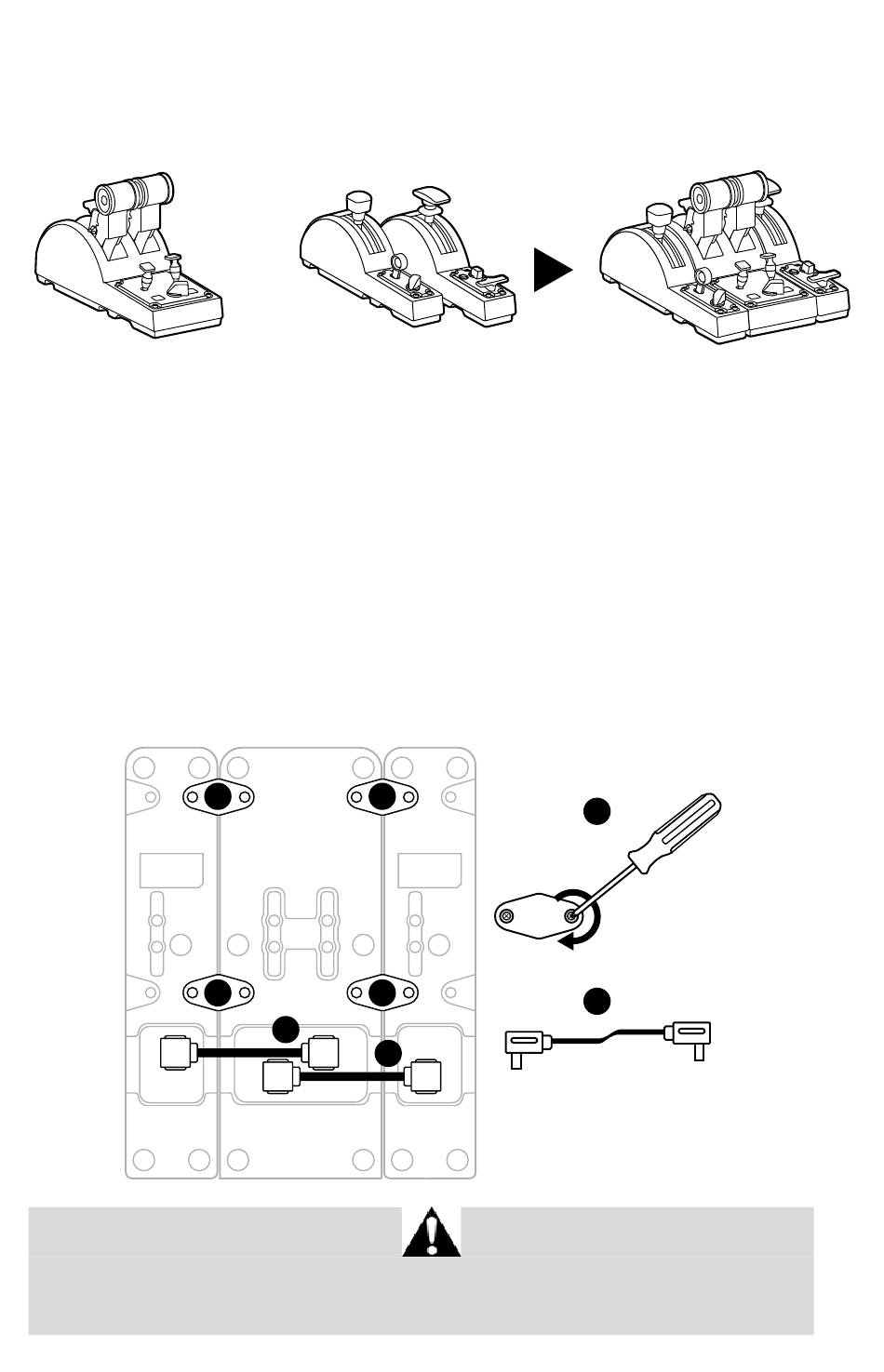

1. Turn the TCA Quadrant Airbus Edition throttle quadrant and the two additional TCA
Quadrant Add-On Airbus Edition modules upside down, and (using a screwdriver wi t h the
corresponding head shape) screw on the four attachment pieces included with the T CA
Quadrant Airbus Edition throttle quadrant and the TCA Quadrant Add-On Airbus Edition,
attaching all three devices together: the Speed brake module to the left of the TCA
Quadrant Airbus Edition, and the Flaps module to the right.
2. Connect the SATA cables included with the TCA Quadrant Add-On Airbus Edition to t he
SATA connectors on the TCA Quadrant Airbus Edition.
3.
- To avoid damaging the products, use a screwdriver with the corresponding head shape to
tighten/untighten the screws.
- Only use the official cables provided by Thrustmaster.
+
