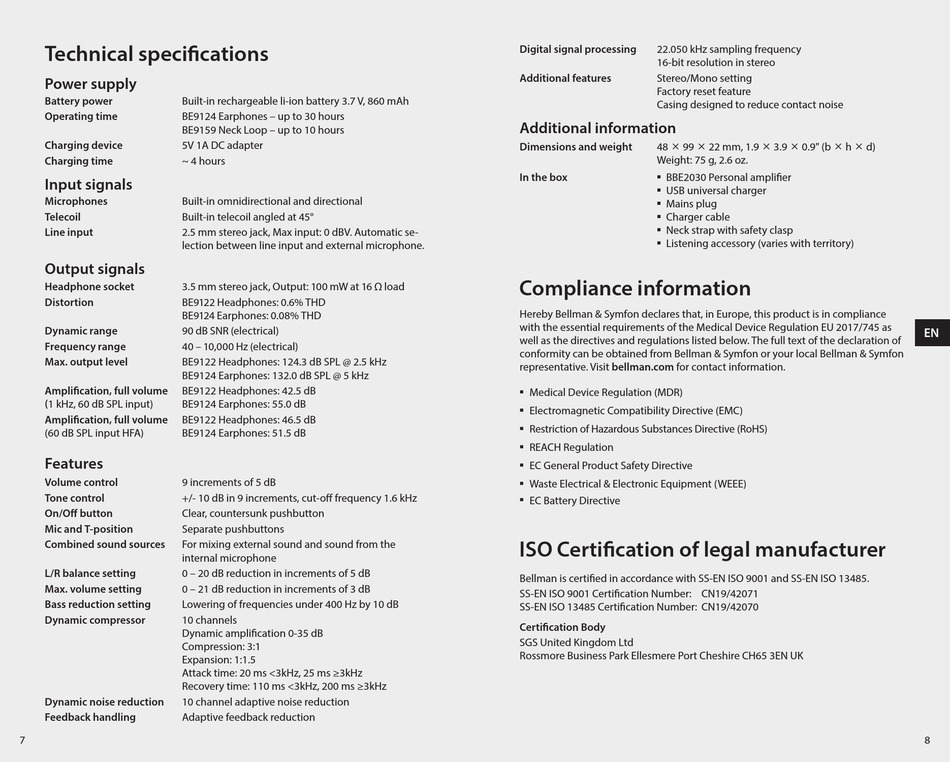

Technical specifications

Power supply
Battery power Built-in rechargeable li-ion battery 3.7 V, 860 mAh
Operating time BE9124 Earphones – up to 30 hours
BE9159 Neck Loop – up to 10 hours
Charging device 5V 1A DC adapter
Charging time
~ 4 hours
Input signals
Microphones Built-in omnidirectional and directional
Telecoil
Built-in telecoil angled at 45°
Line input 2.5 mm stereo jack, Max input: 0 dBV. Automatic se-
lection between line input and external microphone.
Output signals
Headphone socket 3.5 mm stereo jack, Output: 100 mW at 16 Ω load
Distortion BE9122 Headphones: 0.6% THD
BE9124 Earphones: 0.08% THD
Dynamic range 90 dB SNR (electrical)
Frequency range 40 – 10,000 Hz (electrical)
Max. output level BE9122 Headphones: 124.3 dB SPL @ 2.5 kHz
BE9124 Earphones: 132.0 dB SPL @ 5 kHz
Amplification, full volume
BE9122 Headphones: 42.5 dB
(1 kHz, 60 dB SPL input) BE9124 Earphones: 55.0 dB
Amplification, full volume BE9122 Headphones: 46.5 dB
(60 dB SPL input HFA) BE9124 Earphones: 51.5 dB
Features
Volume control 9 increments of 5 dB
Tone control
+/- 10 dB in 9 increments, cut-off frequency 1.6 kHz
On/Off button Clear, countersunk pushbutton
Mic and T-position
Separate pushbuttons
Combined sound sources For mixing external sound and sound from the
internal microphone
L/R balance setting 0 – 20 dB reduction in increments of 5 dB
Max. volume setting
0 – 21 dB reduction in increments of 3 dB
Bass reduction setting Lowering of frequencies under 400 Hz by 10 dB
Dynamic compressor
10 channels
Dynamic amplification 0-35 dB
Compression: 3:1
Expansion: 1:1.5
Attack time: 20 ms <3kHz, 25 ms ≥3kHz
Recovery time: 110 ms <3kHz, 200 ms ≥3kHz
Dynamic noise reduction 10 channel adaptive noise reduction
Feedback handling Adaptive feedback reduction
7
Digital signal processing 22.050 kHz sampling frequency
16-bit resolution in stereo
Additional features Stereo/Mono setting
Factory reset feature
Casing designed to reduce contact noise

Additional information

Dimensions and weight 48  99  22 mm, 1.9  3.9  0.9" (b  h  d)
Weight: 75 g, 2.6 oz.
In the box BBE2030 Personal amplifier

USB universal charger

Mains plug

Charger cable

Neck strap with safety clasp

Listening accessory (varies with territory)


Compliance information

Hereby Bellman & Symfon declares that, in Europe, this product is in compliance
with the essential requirements of the Medical Device Regulation EU 2017/745 as
well as the directives and regulations listed below. The full text of the declaration of
conformity can be obtained from Bellman & Symfon or your local Bellman & Symfon
representative. Visit bellman.com for contact information.
Medical Device Regulation (MDR)

Electromagnetic Compatibility Directive (EMC)

Restriction of Hazardous Substances Directive (RoHS)

REACH Regulation

EC General Product Safety Directive

Waste Electrical & Electronic Equipment (WEEE)

EC Battery Directive

ISO Certification of legal manufacturer
Bellman is certified in accordance with SS-EN ISO 9001 and SS-EN ISO 13485.
SS-EN ISO 9001 Certification Number: CN19/42071
SS-EN ISO 13485 Certification Number: CN19/42070
Certification Body
SGS United Kingdom Ltd
Rossmore Business Park Ellesmere Port Cheshire CH65 3EN UK
