Alternative installation – visible pipes

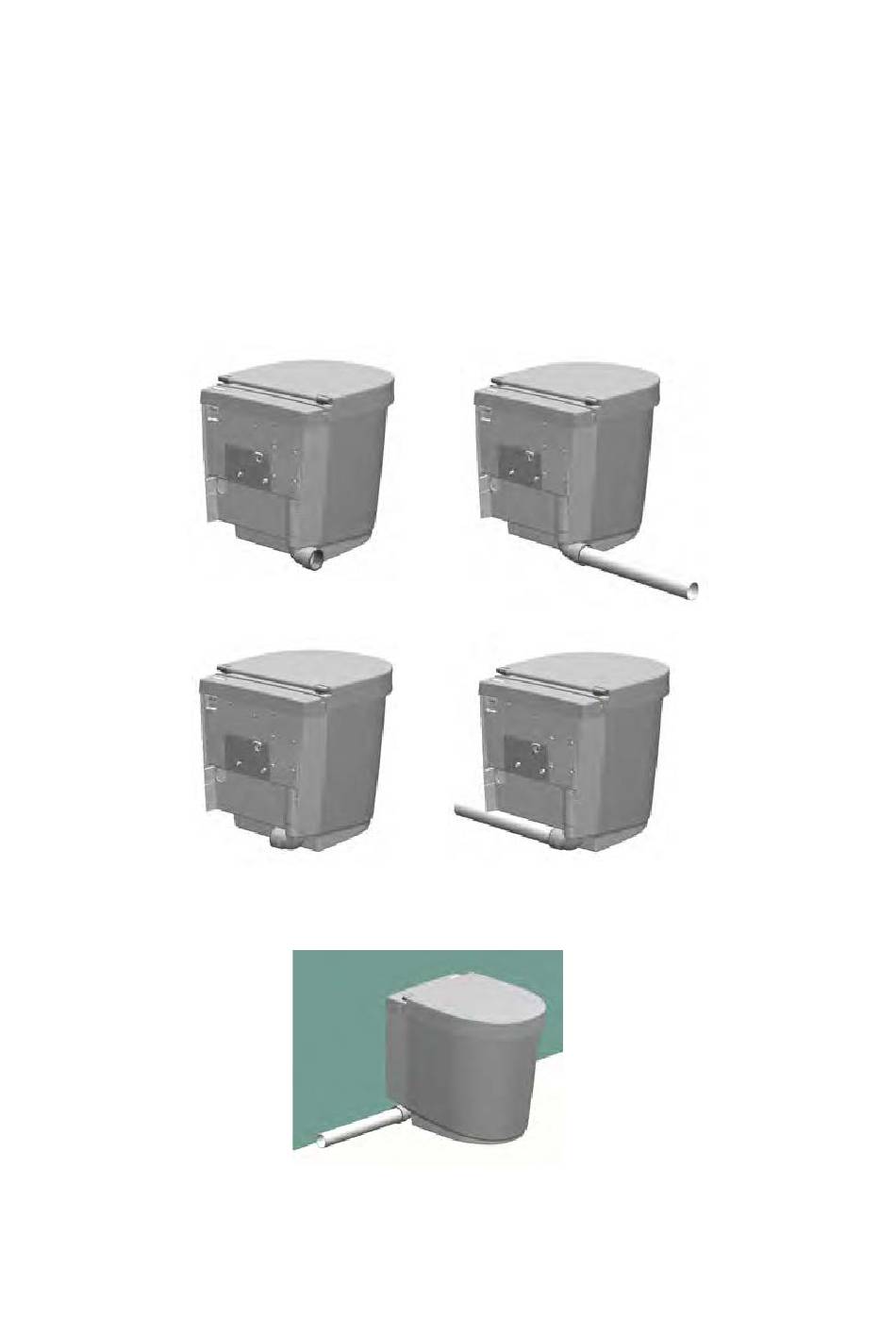

In cases where installation with hidden pipes is not possible, the ventilation duct is guided to the right or
left by turning the 90-degree bend according to the pictures below. The piping must then be carried out in
accordance with the recommendations for the installation of ventilation pipes.
If additional pipes are needed to direct the air out of the house, the Separett ventilation kit (art. no. 1344) is
recommended for Tiny. It includes 4 meters (13 ft) of piping and bends to ensure a simple extended installa-
tion. These can also be used to extend the piping onto the facade of the house. Please note that as short an
installation as possible is recommended to guarantee full function throughout the year.
