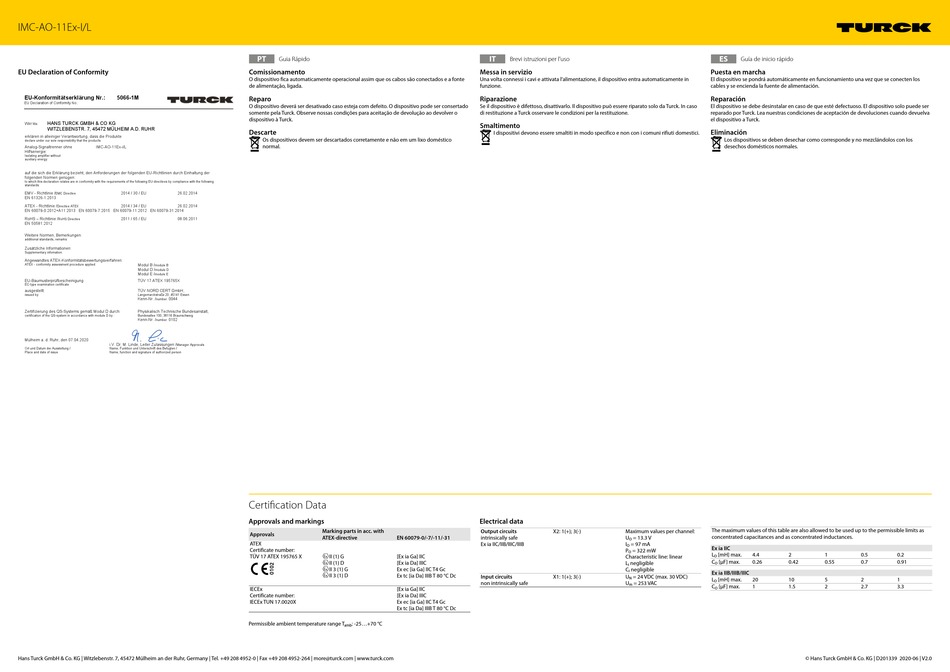

IMC-AO-11Ex-I/L
EU Declaration of Conformity
EU-Konformitätserklärung Nr.:
5066-1M
EU Declaration of Conformity No.:
Wir
:
HANS TURCK GMBH & CO KG
/ We
WITZLEBENSTR. 7, 45472 MÜLHEIM A.D. RUHR
erklären in alleiniger Verantwortung, dass die Produkte
declare under our sole responsibility that the products
Analog-Signaltrenner ohne
IMC-AO-11Ex-i/L
Hilfsenergie:
Isolating amplifier without
auxiliary energy:
auf die sich die Erklärung bezieht, den Anforderungen der folgenden EU-Richtlinien durch Einhaltung der
folgenden Normen genügen:
to which this declaration relates are in conformity with the requirements of the following EU-directives by compliance with the following
standards:
EMV - Richtlinie /
2014 / 30 / EU
26.02.2014
EMC Directive
EN 61326-1:2013
ATEX - Richtlinie /
2014 / 34 / EU
26.02.2014
Directive ATEX
EN 60079-0:2012+A11:2013 EN 60079-7:2015 EN 60079-11:2012 EN 60079-31:2014
RoHS – Richtlinie /
RoHS Directive
2011 / 65 / EU
08.06.2011
EN 50581:2012
Weitere Normen, Bemerkungen:
additional standards, remarks:
Zusätzliche Informationen:
Supplementary infomation:
Angewandtes ATEX-Konformitätsbewertungsverfahren:
ATEX - conformity assessment procedure applied:
Modul B /
module B
Modul D /
module D
Modul E /
module E
EU-Baumusterprüfbescheinigung
TÜV 17 ATEX 195765X
EC-type examination certificate
ausgestellt:
TÜV NORD CERT GmbH,
issued by:
Langemarckstraße 20, 45141 Essen
Kenn-Nr. /
number:
0044
Zertifizierung des QS-Systems gemäß Modul D durch:
Physikalisch Technische Bundesanstalt,
certification of the QS-system in accordance with module D by :
Bundesallee 100, 38116 Braunschweig
Kenn-Nr. /
0102
number:
Mülheim a. d. Ruhr, den 07.04.2020
i.V. Dr. M. Linde, Leiter Zulassungen /
Manager Approvals
Ort und Datum der Ausstellung /
Name, Funktion und Unterschrift des Befugten /
Place and date of issue
Name, function and signature of authorized person
Hans Turck GmbH & Co. KG | Witzlebenstr. 7, 45472 Mülheim an der Ruhr, Germany | Tel. +49 208 4952-0 | Fax +49 208 4952-264 | more@turck.com | www.turck.com
PT
Guia Rápido
Comissionamento
O dispositivo fica automaticamente operacional assim que os cabos são conectados e a fonte
de alimentação, ligada.
Reparo
O dispositivo deverá ser desativado caso esteja com defeito. O dispositivo pode ser consertado
somente pela Turck. Observe nossas condições para aceitação de devolução ao devolver o
dispositivo à Turck.
Descarte
Os dispositivos devem ser descartados corretamente e não em um lixo doméstico
normal.
Certification Data
Approvals and markings
Marking parts in acc. with
Approvals
ATEX-directive
EN 60079-0/-7/-11/-31
ATEX
Certificate number:
TÜV 17 ATEX 195765 X
ÉII (1) G
[Ex ia Ga] IIC
ÉII (1) D
[Ex ia Da] IIIC
ÉII 3 (1) G
Ex ec [ia Ga] IIC T4 Gc
ÉII 3 (1) D
Ex tc [ia Da] IIIB T 80 °C Dc
IECEx
[Ex ia Ga] IIC
Certificate number:
[Ex ia Da] IIIC
IECEx TUN 17.0020X
Ex ec [ia Ga] IIC T4 Gc
Ex tc [ia Da] IIIB T 80 °C Dc
Permissible ambient temperature range T
: -25...+70 °C
amb
IT
Brevi istruzioni per l'uso
Messa in servizio
Una volta connessi i cavi e attivata l'alimentazione, il dispositivo entra automaticamente in
funzione.
Riparazione
Se il dispositivo è difettoso, disattivarlo. Il dispositivo può essere riparato solo da Turck. In caso
di restituzione a Turck osservare le condizioni per la restituzione.
Smaltimento
I dispositivi devono essere smaltiti in modo specifico e non con i comuni rifiuti domestici.
Electrical data
Output circuits
X2: 1(+); 3(-)
Maximum values per channel:
intrinsically safe
U
= 13.3 V
O
Ex ia IIC/IIB/IIIC/IIIB
I
= 97 mA
O
P
= 322 mW
O
Characteristic line: linear
L
negligible
i
C
negligible
i
Input circuits
X1: 1(+); 3(-)
U
= 24 VDC (max. 30 VDC)
N
non intrinsically safe
U
= 253 VAC
m
ES
Guía de inicio rápido
Puesta en marcha
El dispositivo se pondrá automáticamente en funcionamiento una vez que se conecten los
cables y se encienda la fuente de alimentación.
Reparación
El dispositivo se debe desinstalar en caso de que esté defectuoso. El dispositivo solo puede ser
reparado por Turck. Lea nuestras condiciones de aceptación de devoluciones cuando devuelva
el dispositivo a Turck.
Eliminación
Los dispositivos se deben desechar como corresponde y no mezclándolos con los
desechos domésticos normales.
The maximum values of this table are also allowed to be used up to the permissible limits as
concentrated capacitances and as concentrated inductances.
Ex ia IIC
L
[mH] max.
4.4
2
1
0.5
O
C
[µF] max.
0.26
0.42
0.55
0.7
O
Ex ia IIB/IIIB/IIIC
L
[mH] max.
20
10
5
2
O
C
[µF] max.
1
1.5
2
2.7
O
© Hans Turck GmbH & Co. KG | D201339 2020-06 | V2.0
0.2
0.91
1
3.3
