Axes

This maschine has 5 axes: 3 linear and 2 rotational
axes.

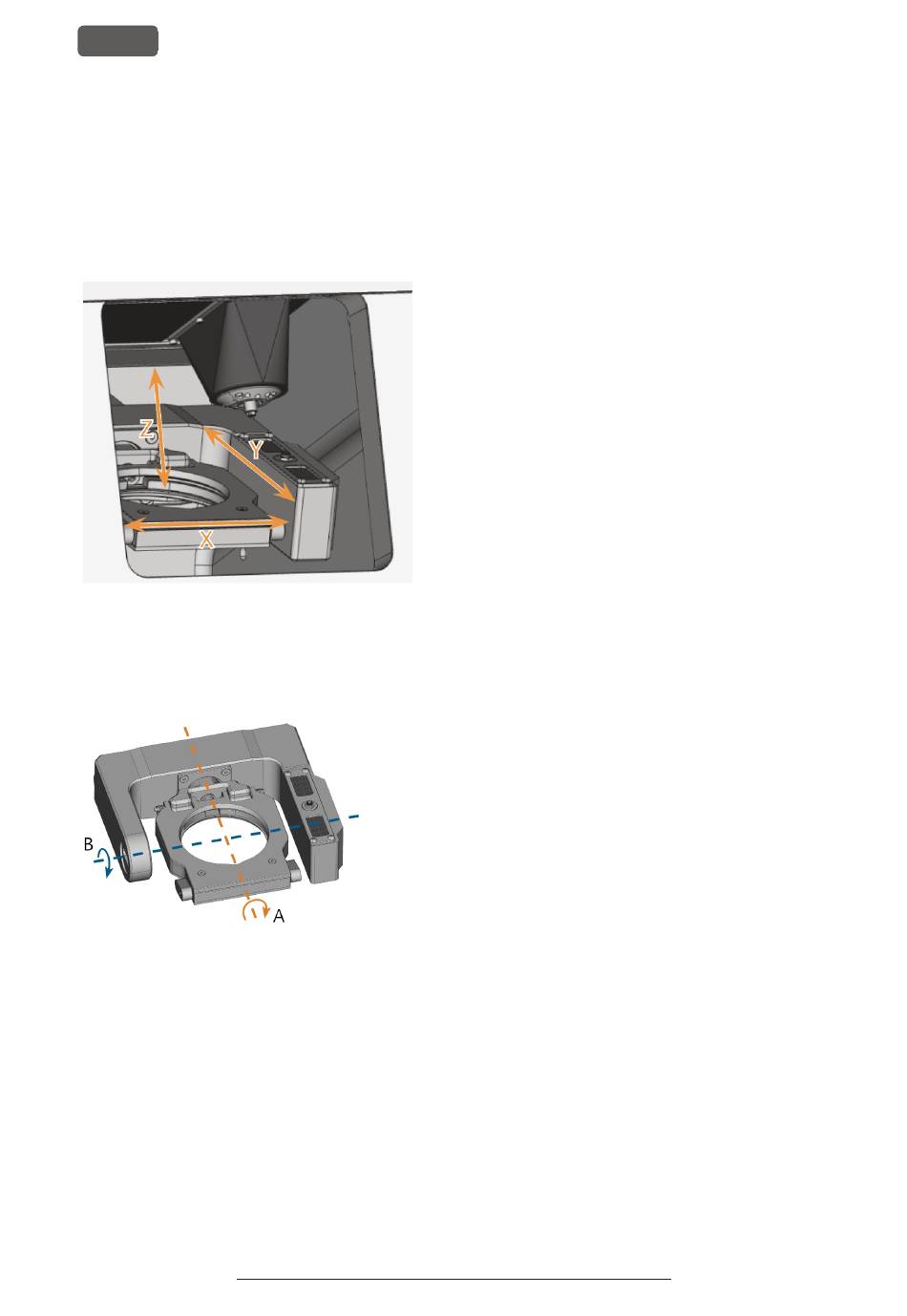

Linear axes

The spindle moves along these axes.
F . 7 – P M D : L
IG ROGRA ILL RY

Rotational axes

The material holder rotates about these axes.
F . 8 – P M D : R
IG ROGRA ILL RY
INEAR AXES
OTATIONAL AXES
