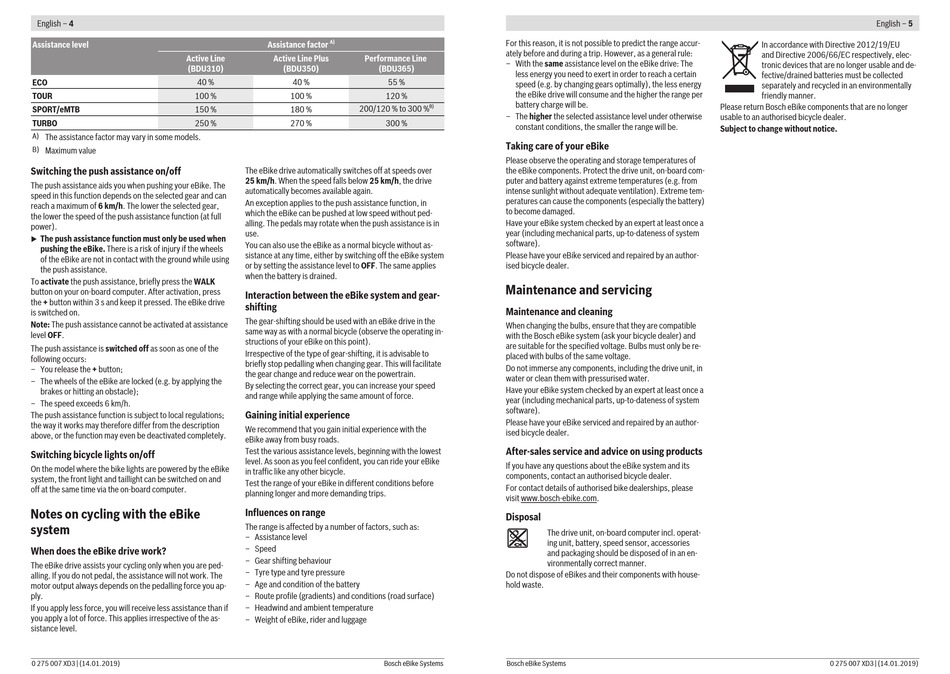

English – 4​
Assistance level
Active Line
(BDU310)
ECO 40 %
TOUR 100 %
SPORT/eMTB 150 %
TURBO 250 %
A) The assistance factor may vary in some models.
B)
Maximum value
Switching the push assistance on/off
The push assistance aids you when pushing your eBike. The
speed in this function depends on the selected gear and can
reach a maximum of 6 km/h. The lower the selected gear,
the lower the speed of the push assistance function (at full
power).
The push assistance function must only be used when
u
pushing the eBike. There is a risk of injury if the wheels
of the eBike are not in contact with the ground while using
the push assistance.
To activate the push assistance, briefly press the WALK
button on your on-board computer. After activation, press
the + button within 3 s and keep it pressed. The eBike drive
is switched on.
Note: The push assistance cannot be activated at assistance
level OFF.
The push assistance is switched off as soon as one of the
following occurs:
– You release the + button;
– The wheels of the eBike are locked (e.g. by applying the
brakes or hitting an obstacle);
– The speed exceeds 6 km/h.
The push assistance function is subject to local regulations;
the way it works may therefore differ from the description
above, or the function may even be deactivated completely.
Switching bicycle lights on/off
On the model where the bike lights are powered by the eBike
system, the front light and taillight can be switched on and
off at the same time via the on-board computer.
Notes on cycling with the eBike
system
When does the eBike drive work?
The eBike drive assists your cycling only when you are ped-
alling. If you do not pedal, the assistance will not work. The
motor output always depends on the pedalling force you ap-
ply.
If you apply less force, you will receive less assistance than if
you apply a lot of force. This applies irrespective of the as-
sistance level.
0 275 007 XD3 | (14.01.2019)
Assistance factor A)
Active Line Plus Performance Line
(BDU350) (BDU365)
40 % 55 %
100 % 120 %
200/120 % to 300 %
180 %
270 % 300 %
The eBike drive automatically switches off at speeds over
25 km/h. When the speed falls below 25 km/h, the drive
automatically becomes available again.
An exception applies to the push assistance function, in
which the eBike can be pushed at low speed without ped-
alling. The pedals may rotate when the push assistance is in
use.
You can also use the eBike as a normal bicycle without as-
sistance at any time, either by switching off the eBike system
or by setting the assistance level to OFF. The same applies
when the battery is drained.
Interaction between the eBike system and gear-
shifting
The gear-shifting should be used with an eBike drive in the
same way as with a normal bicycle (observe the operating in-
structions of your eBike on this point).
Irrespective of the type of gear-shifting, it is advisable to
briefly stop pedalling when changing gear. This will facilitate
the gear change and reduce wear on the powertrain.
By selecting the correct gear, you can increase your speed
and range while applying the same amount of force.
Gaining initial experience
We recommend that you gain initial experience with the
eBike away from busy roads.
Test the various assistance levels, beginning with the lowest
level. As soon as you feel confident, you can ride your eBike
in traffic like any other bicycle.
Test the range of your eBike in different conditions before
planning longer and more demanding trips.
Influences on range
The range is affected by a number of factors, such as:
– Assistance level
– Speed
– Gear shifting behaviour
– Tyre type and tyre pressure
– Age and condition of the battery
– Route profile (gradients) and conditions (road surface)
– Headwind and ambient temperature
– Weight of eBike, rider and luggage
Bosch eBike Systems
For this reason, it is not possible to predict the range accur-
ately before and during a trip. However, as a general rule:
– With the same assistance level on the eBike drive: The
less energy you need to exert in order to reach a certain
speed (e.g. by changing gears optimally), the less energy
the eBike drive will consume and the higher the range per
battery charge will be.
B)
– The higher the selected assistance level under otherwise
constant conditions, the smaller the range will be.
Taking care of your eBike
Please observe the operating and storage temperatures of
the eBike components. Protect the drive unit, on-board com-
puter and battery against extreme temperatures (e.g. from
intense sunlight without adequate ventilation). Extreme tem-
peratures can cause the components (especially the battery)
to become damaged.
Have your eBike system checked by an expert at least once a
year (including mechanical parts, up-to-dateness of system
software).
Please have your eBike serviced and repaired by an author-
ised bicycle dealer.

Maintenance and servicing

Maintenance and cleaning
When changing the bulbs, ensure that they are compatible
with the Bosch eBike system (ask your bicycle dealer) and
are suitable for the specified voltage. Bulbs must only be re-
placed with bulbs of the same voltage.
Do not immerse any components, including the drive unit, in
water or clean them with pressurised water.
Have your eBike system checked by an expert at least once a
year (including mechanical parts, up-to-dateness of system
software).
Please have your eBike serviced and repaired by an author-
ised bicycle dealer.
After-sales service and advice on using products
If you have any questions about the eBike system and its
components, contact an authorised bicycle dealer.
For contact details of authorised bike dealerships, please
visit www.bosch-ebike.com.
Disposal
The drive unit, on-board computer incl. operat-
ing unit, battery, speed sensor, accessories
and packaging should be disposed of in an en-
vironmentally correct manner.
Do not dispose of eBikes and their components with house-
hold waste.
Bosch eBike Systems
English – ​ 5
In accordance with Directive 2012/19/EU
and Directive 2006/66/EC respectively, elec-
tronic devices that are no longer usable and de-
fective/drained batteries must be collected
separately and recycled in an environmentally
friendly manner.
Please return Bosch eBike components that are no longer
usable to an authorised bicycle dealer.
Subject to change without notice.
0 275 007 XD3 | (14.01.2019)
