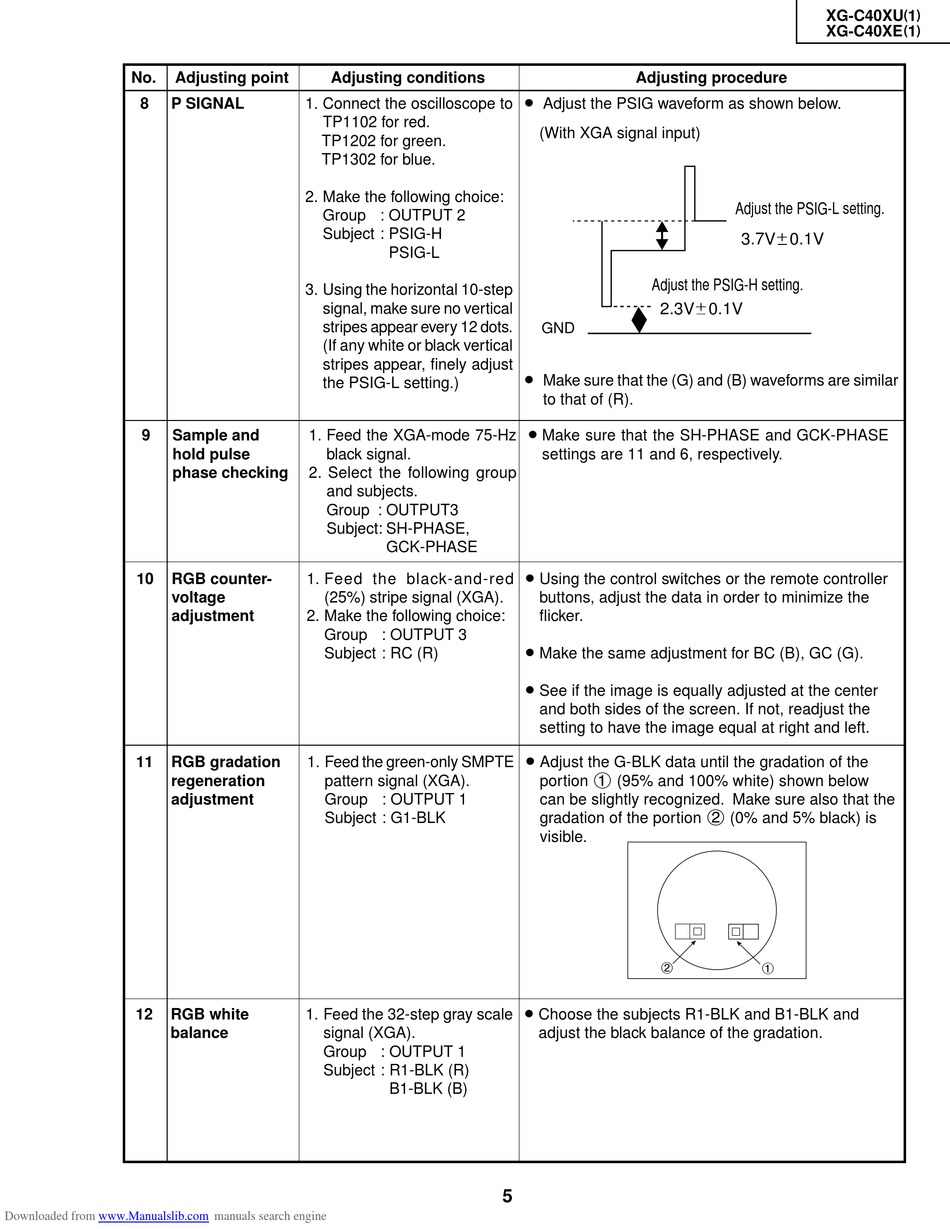

No. Adjusting point
8 P SIGNAL
9 Sample and
hold pulse
phase checking
10 RGB counter-
voltage
adjustment
11 RGB gradation
regeneration
adjustment
12 RGB white
balance
Downloaded from www.Manualslib.com
Adjusting conditions
1. Connect the oscilloscope to
TP1102 for red.
TP1202 for green.
TP1302 for blue.
2. Make the following choice:
Group : OUTPUT 2
Subject : PSIG-H
PSIG-L
3. Using the horizontal 10-step
signal, make sure no vertical
stripes appear every 12 dots.
(If any white or black vertical
stripes appear, finely adjust
the PSIG-L setting.)
1. Feed the XGA-mode 75-Hz
black signal.
2. Select the following group
and subjects.
Group : OUTPUT3
Subject: SH-PHASE,
GCK-PHASE
1. Feed the black-and-red
(25%) stripe signal (XGA).
2. Make the following choice:
Group : OUTPUT 3
Subject : RC (R)
1. Feed the green-only SMPTE
pattern signal (XGA).
Group : OUTPUT 1
Subject : G1-BLK
1. Feed the 32-step gray scale
signal (XGA).
Group : OUTPUT 1
Subject : R1-BLK (R)
B1-BLK (B)
manuals search engine
Adjusting procedure
» Adjust the PSIG waveform as shown below.
(With XGA signal input)
Adjust the PSIG-H setting.
2.3V 0.1V
GND
» Make sure that the (G) and (B) waveforms are similar
to that of (R).
» Make sure that the SH-PHASE and GCK-PHASE
settings are 11 and 6, respectively.
» Using the control switches or the remote controller
buttons, adjust the data in order to minimize the
flicker.
» Make the same adjustment for BC (B), GC (G).
» See if the image is equally adjusted at the center
and both sides of the screen. If not, readjust the
setting to have the image equal at right and left.
» Adjust the G-BLK data until the gradation of the
portion 1 (95% and 100% white) shown below
can be slightly recognized. Make sure also that the
gradation of the portion 2 (0% and 5% black) is
visible.
2
» Choose the subjects R1-BLK and B1-BLK and
adjust the black balance of the gradation.
5
XG-C40XU 1
(
XG-C40XE ( 1
Adjust the PSIG-L setting.
3.7V 0.1V
1
)
)
