Remove all packing from the unit. Retain the packaging if you dispose of it please do so
according to local regulations.
 Main unit
 Remote Control (RC)
 2 AAA batteries
 3.5mm to 3.5mm cable
 AC Power Cord
 Instruction manual

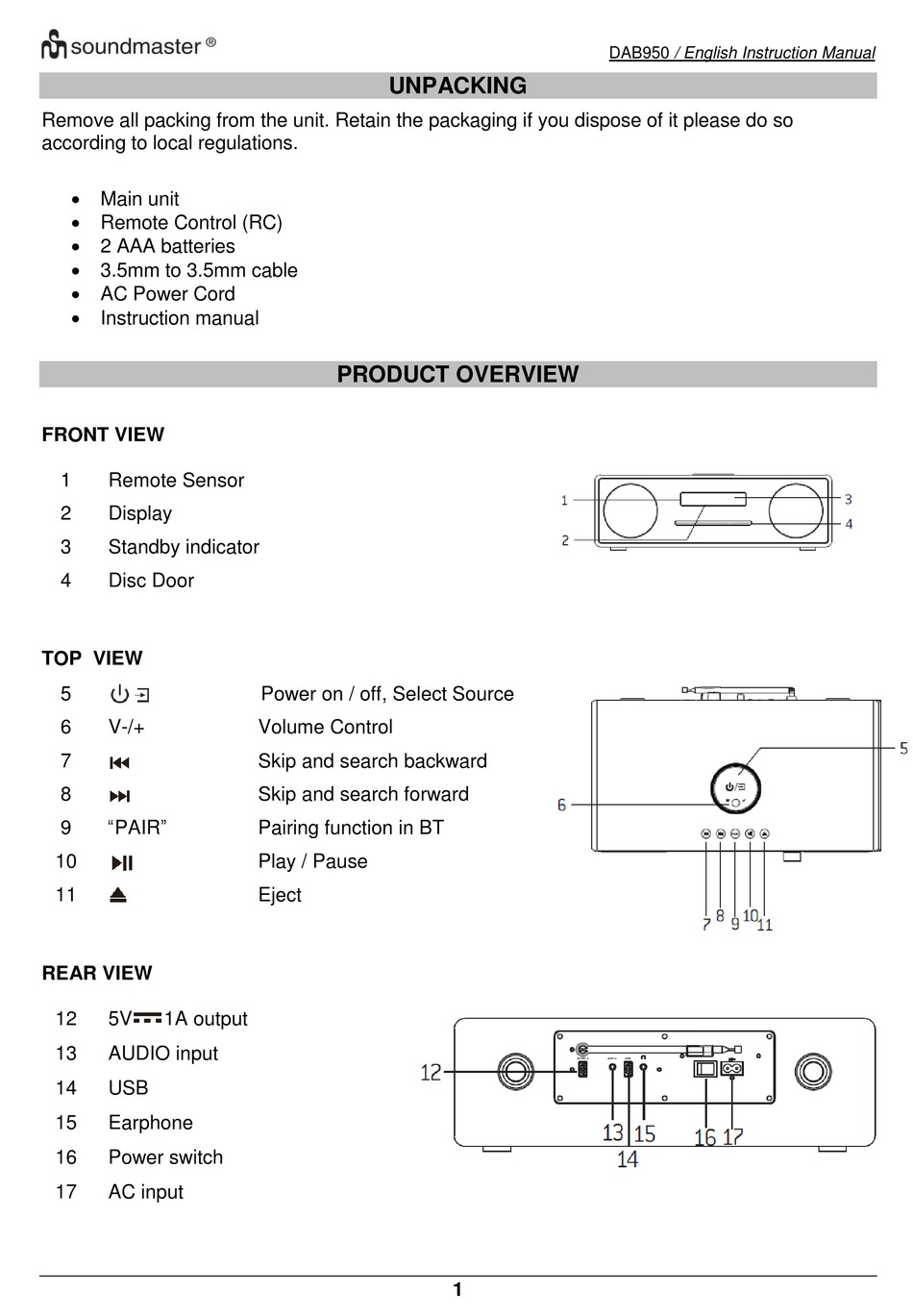

FRONT VIEW
1 Remote Sensor
2 Display
3 Standby indicator
4 Disc Door
TOP VIEW
5
6 V-/+
7
8
"PAIR"
9
10
11
REAR VIEW
12 5V 1A output
13 AUDIO input
14 USB
15 Earphone
16 Power switch
17 AC input
UNPACKING

PRODUCT OVERVIEW

Power on / off, Select Source
Volume Control
Skip and search backward
Skip and search forward
Pairing function in BT
Play / Pause
Eject
DAB950 / English Instruction Manual
1
