2.1

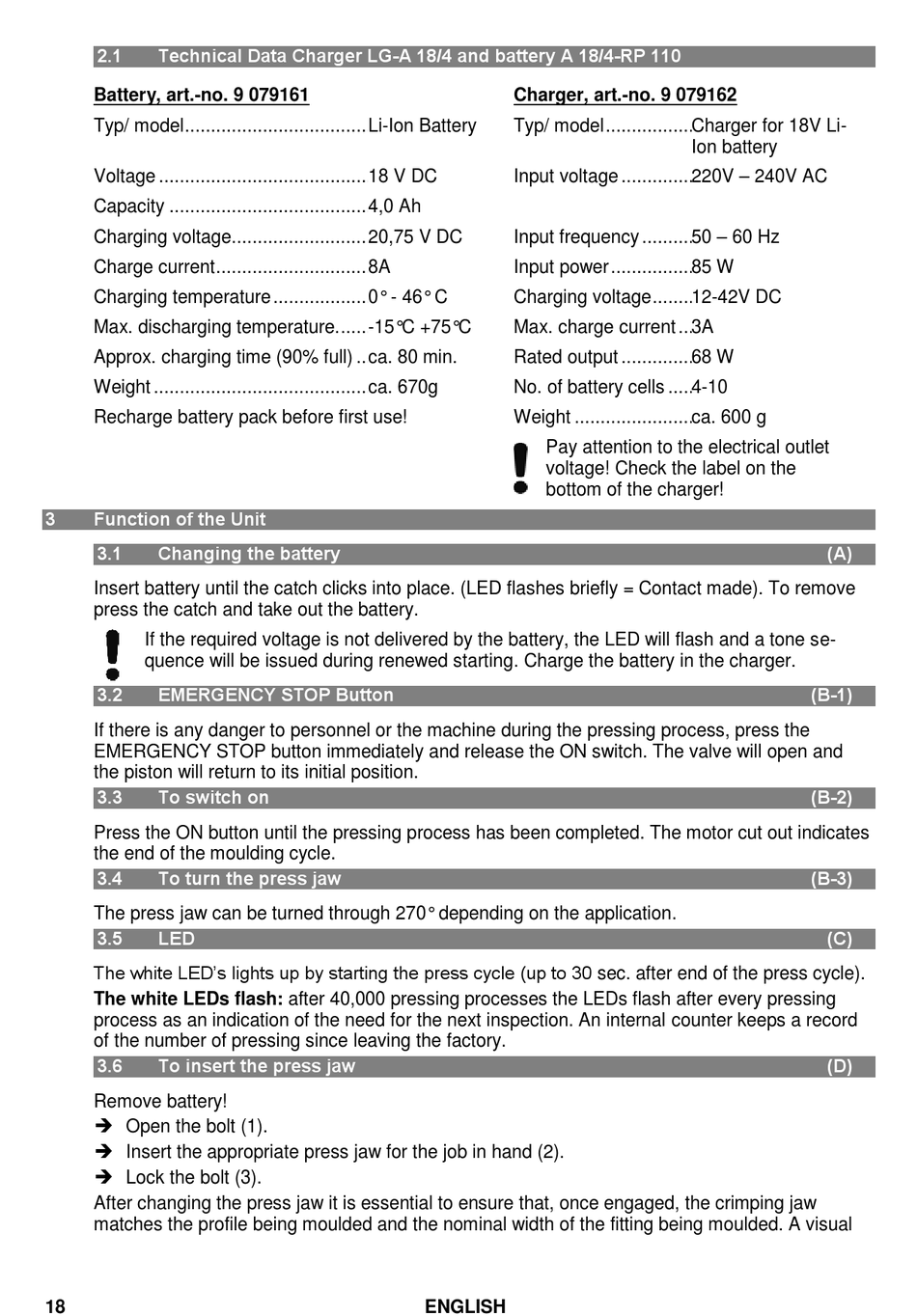

Technical Data Charger LG-A 18/4 and battery A 18/4-RP 110
Battery, art.-no. 9 079161
Typ/ model ...................................... Li-Ion Battery
Voltage ........................................... 18 V DC
Capacity ......................................... 4,0 Ah
Charging voltage............................. 20,75 V DC
Charge current ................................ 8A
Charging temperature ..................... 0° - 46° C
Max. discharging temperature. ........ -15°C +75°C
Approx. charging time (90% full) ..... ca. 80 min.
Weight ............................................ ca. 670g
Recharge battery pack before first use!
3
Function of the Unit
3.1
Changing the battery
Insert battery until the catch clicks into place. (LED flashes briefly = Contact made). To remove
press the catch and take out the battery.
If the required voltage is not delivered by the battery, the LED will flash and a tone se-
quence will be issued during renewed starting. Charge the battery in the charger.
3.2
EMERGENCY STOP Button
If there is any danger to personnel or the machine during the pressing process, press the
EMERGENCY STOP button immediately and release the ON switch. The valve will open and
the piston will return to its initial position.
3.3
To switch on
Press the ON button until the pressing process has been completed. The motor cut out indicates
the end of the moulding cycle.
3.4
To turn the press jaw
The press jaw can be turned through 270° depending on the application.
3.5
LED
The white LED's lights up by starting the press cycle (up to 30 sec. after end of the press cycle).
The white LEDs flash: after 40,000 pressing processes the LEDs flash after every pressing
process as an indication of the need for the next inspection. An internal counter keeps a record
of the number of pressing since leaving the factory.
3.6
To insert the press jaw
Remove battery!
Open the bolt (1).
Insert the appropriate press jaw for the job in hand (2).
Lock the bolt (3).
After changing the press jaw it is essential to ensure that, once engaged, the crimping jaw
matches the profile being moulded and the nominal width of the fitting being moulded. A visual
18
Charger, art.-no. 9 079162
Typ/ model ........................................
Input voltage .....................................
Input frequency .................................
Input power .......................................
Charging voltage ...............................
Max. charge current ..........................
Rated output .....................................
No. of battery cells ............................
Weight ..............................................
Pay attention to the electrical outlet
voltage! Check the label on the
bottom of the charger!
ENGLISH
Charger for 18V Li-
Ion battery
220V – 240V AC
50 – 60 Hz
85 W
12-42V DC
3A
68 W
4-10
ca. 600 g
(A)
(B-1)
(B-2)
(B-3)
(C)
(D)
