mical substances, follow the corresponding
safety instructions.
–Follow the instructions and advice of the
relevant spraying agent manufacturer.
–Dispose of all consumables and spraying
agent in an environmentally responsible man-
ner according to legal regulations.
–Store consumables and spraying agent in an
environmentally responsible manner accor-
ding to legal regulations.
–Dispose of defective components (valves,
diaphragms, valve covers, etc.) which are
contaminated with spraying agent in an envi-
ronmentally responsible manner according to
legal regulations.
–Take advantage of recycling possibilities.

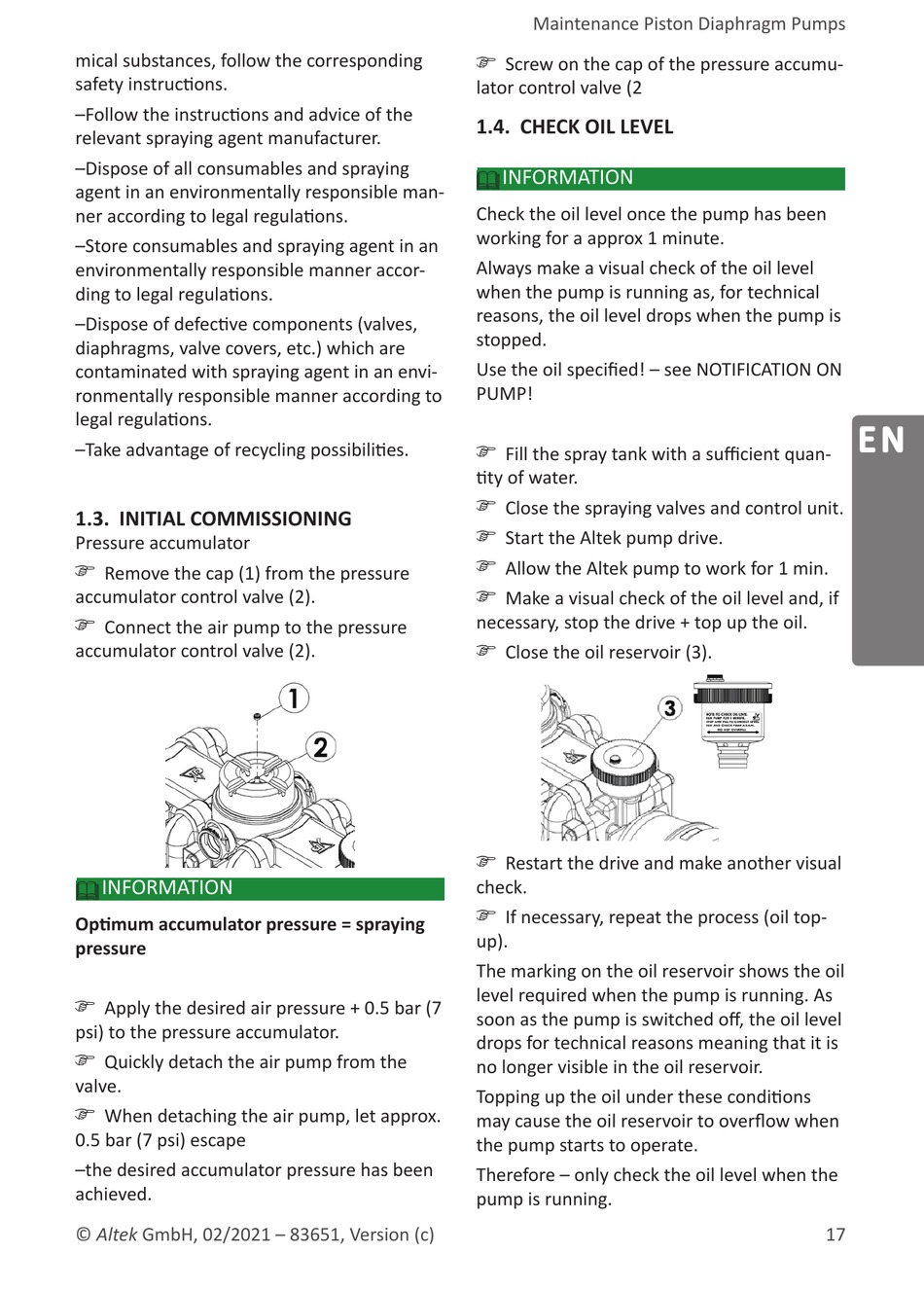

1.3. INITIAL COMMISSIONING

Pressure accumulator

Remove the cap (1) from the pressure
accumulator control valve (2).


Connect the air pump to the pressure

accumulator control valve (2).




⚠



⚠


⚠

INFORMATION

Optimum accumulator pressure = spraying
pressure

Apply the desired air pressure + 0.5 bar (7
psi) to the pressure accumulator.


Quickly detach the air pump from the

valve.


When detaching the air pump, let approx.


0.5 bar (7 psi) escape
⚠

–the desired accumulator pressure has been


achieved.
⚠

© Altek GmbH, 02/2021 – 83651, Version (c)

⚠


Maintenance Piston Diaphragm Pumps


Screw on the cap of the pressure accumu-

lator control valve (2

⚠

1.4. CHECK OIL LEVEL


 INFORMATION

⚠
Check the oil level once the pump has been
working for a approx 1 minute.
Always make a visual check of the oil level
when the pump is running as, for technical

reasons, the oil level drops when the pump is
stopped.
Use the oil specified! – see NOTIFICATION ON
PUMP!

Fill the spray tank with a sufficient quan-
tity of water.


Close the spraying valves and control unit.


Start the Altek pump drive.



Allow the Altek pump to work for 1 min.


⚠

Make a visual check of the oil level and, if



necessary, stop the drive + top up the oil.


⚠


Close the oil reservoir (3).

⚠



⚠


⚠



⚠



Restart the drive and make another visual
check.



If necessary, repeat the process (oil top-

up).

The marking on the oil reservoir shows the oil


level required when the pump is running. As
⚠
soon as the pump is switched off, the oil level

drops for technical reasons meaning that it is
⚠
no longer visible in the oil reservoir.
Topping up the oil under these conditions

may cause the oil reservoir to overflow when
the pump starts to operate.

Therefore – only check the oil level when the
pump is running.
