• Y Inverse: Y axis mirroring of the picture
• X/Y Inverse: mirroring of the Image on both axis

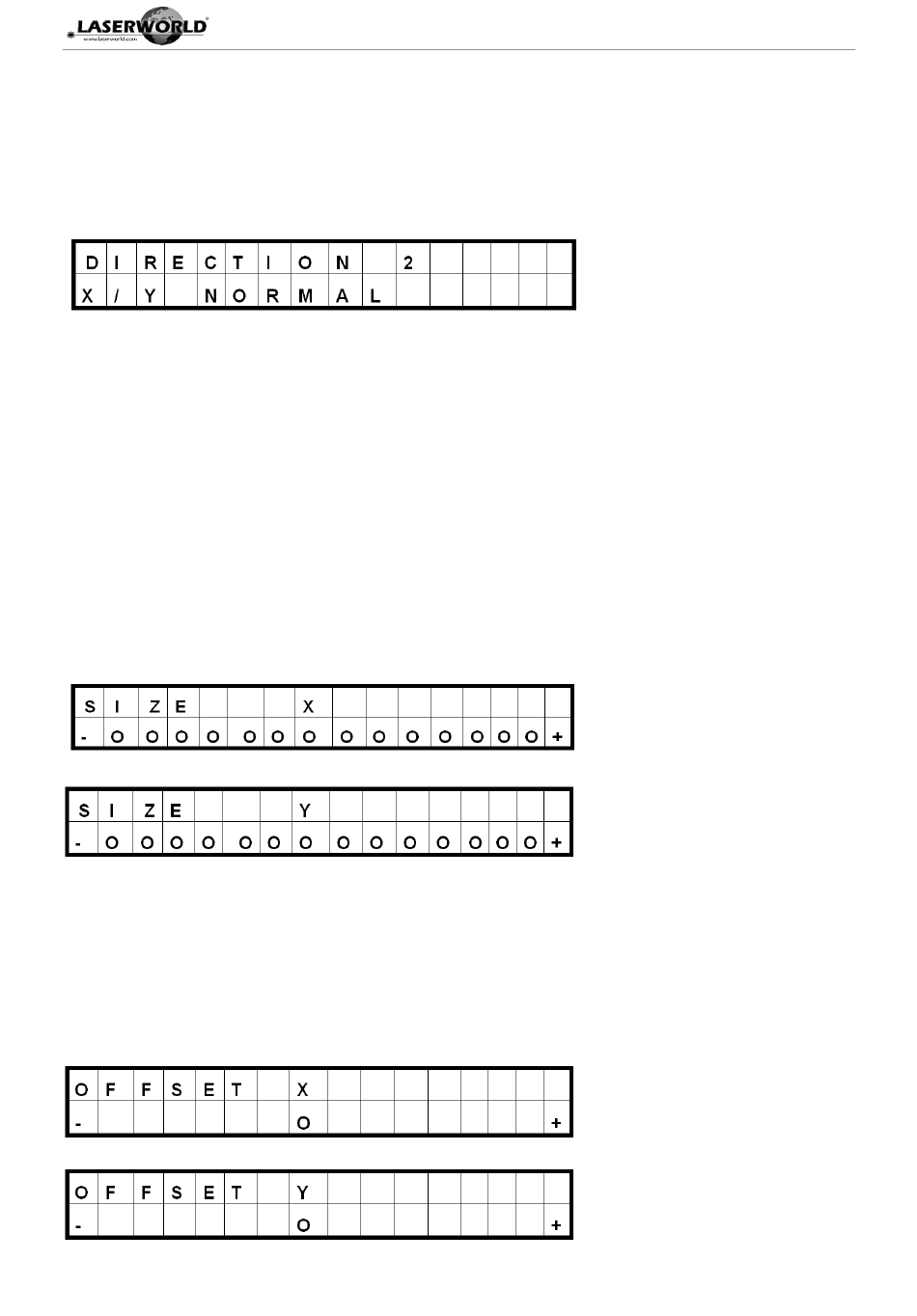

Menu Item DIRECTION 2
If you wish to use the projector in an upright position, you can carry out special settings here:
• X/Y Normal: Image will be depicted 1:1 according to input signal.
• X/Y Swap: Image rotates by 90 degrees.
8.3 Picture Size Settings
By menu item „Size" you can change image size by pressing UP/DOWN button (fine adjust-
ment). For a rough setting hold down the red button while pressing the UP/DOWN buttons
(quick setting). This setting is completely independent of control software. It also works in
Stand-Alone Modes.
Menu option SIZE X
Menu option SIZE Y
8.4 Offset Settings
By Offset settings, the respective image position can be set more precise. You can shape the
shift of the x axis als well as the y axis. Theses settings are completly independent of control
software und work also in Stand-Alone Modes.
Menu option OFFSET X
Menu option OFFSET Y
Manual: PS-5200RGB / PS-9200RGB / PS-18.400RGB
NL NL NL
page 9 / 34
