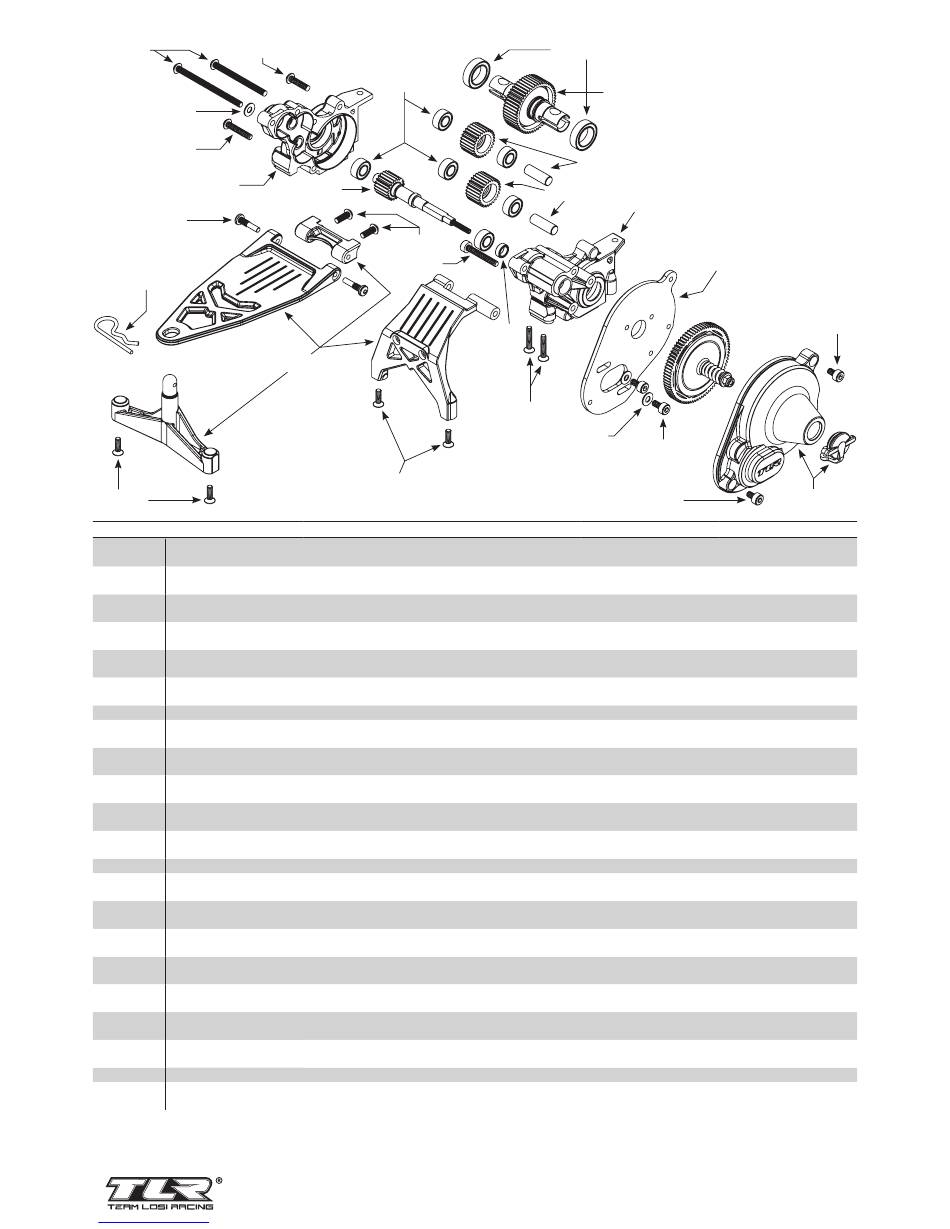

TLR 22T 2.0 Montageanleitung Seite 80

TLR5906
TLR6352
TLR5909
TLR1067
TLR8202
TLR5962
Part # English
Flat Head Screw, M3 x 20mm
TLR5965
(10)
Rod End, 4mm Turnbuckle (12):
TLR6017
22SCT
TLR6023 Ball Stud, 4.8 x 10mm (4): 22
TLR6024 Ball Stud, 4.8 x 8mm (4): 22
TLR6028 Ball Stud, Short Neck, 5mm (2)
Turnbuckle, HD, 70mm (2):
TLR6065
22SCT
TLR6105 E-Clips, 3mm Shaft (12)
Set Screw, M2.5 x 5mm, Cup
TLR6276
Point (10)
TLR6288 Set Screw, M3 x 2.5mm (10)
TLR6289 Set Screw, M3 x 5mm
TLR6312 Locknut, M2.5 x .45 x 5mm (6)
TLR6313 Locknut, M3 x .5 x 5.5mm (10)
TLR6352 Washers, M3 (10)
TLR6932 5x10x4mm HD Bearings (2)
TLR7002 Front/Rear Wheel, Yellow: 22T Rad v/h, gelb: 22T
TLR74006 Silicone Shock oil, 30wt, 2oz
TLR76004 TLR Lok, Threadlock, Blue
High-Pressure Black Grease,
TLR77000
8cc
TLR8058 Truck Body, Rear Motor: 22T
TLR8059 Truck Body, Mid Motor: 22T
TLR8201 Wing Washers (4): 22
TLR8202 Body Clips, Black (12): 22
80
