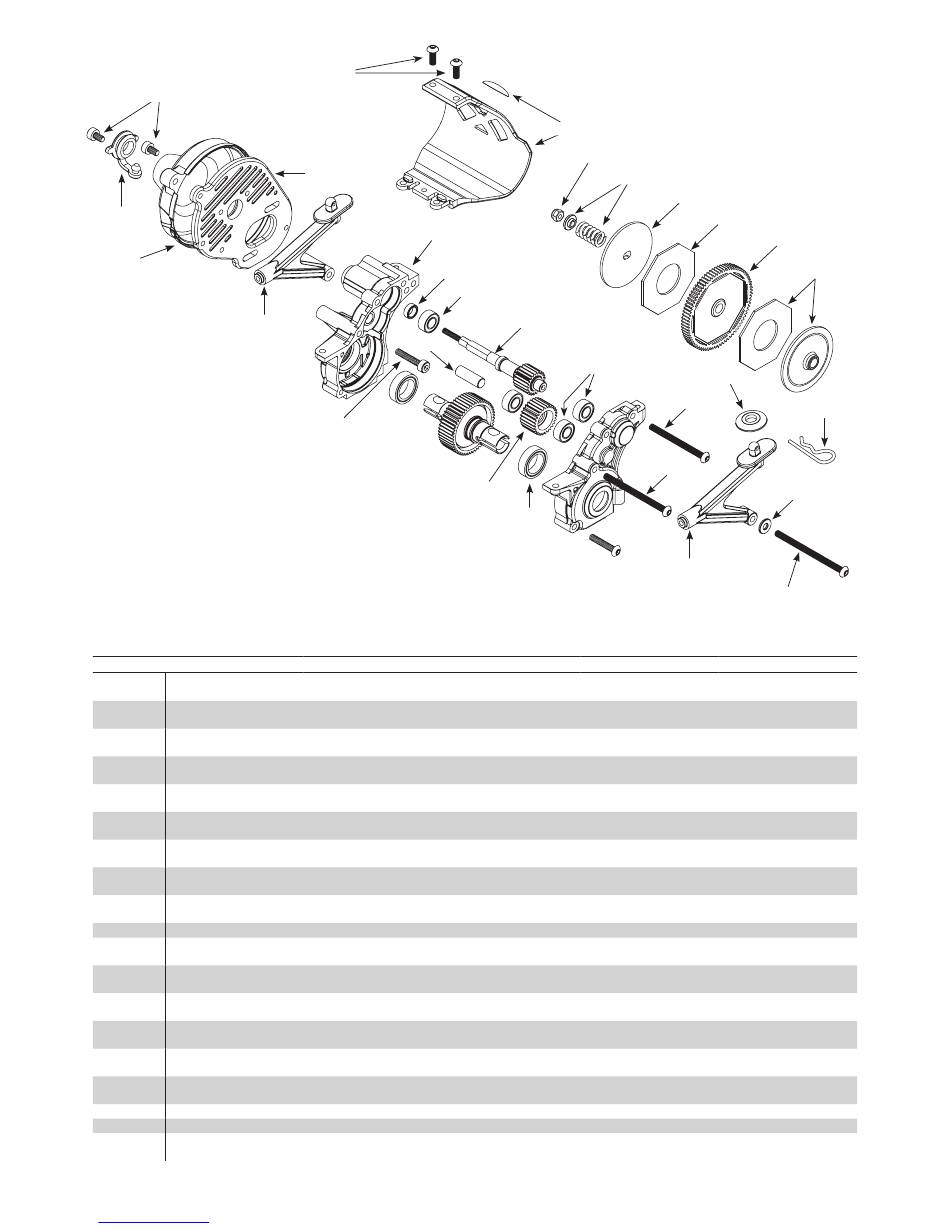

TLR 22T 2.0 Montageanleitung Seite 77

TLR5931
TLR4163
TLR4163
Part # English
Front Hinge/King Pin Set:
TLR234034
22/2.0/T/SCT
Rear Hinge Pin Set: 22/2.0/T/
TLR234035
SCT
Turnbuckle, HD, 75mm (2):
TLR234038
22SCT 2.0
TLR234042 Rear Arm Set: 22T 2.0
Turnbuckle, HD, 80mm (2):
TLR234043
22T 2.0
Front Spindle Set, 2mm Trail:
TLR234044
22T 2.0
Flat Head Screws, M3 x 25mm
TLR235004
(10)
Flat Head Screws, M3 x 18mm
TLR235005
(10)
Button Head Screws, M2.5 x
TLR235006
8mm (10)
TLR237000 5x8x2.5mm Bearings (2)
TLR2929 Front/Rear Wheel Hex: 22T
TLR2937 Fr/R Wheel Hex: 22SCT
Tungsten Carbide Diff Balls,
TLR2947
2mm (6)
Tungsten Carbide Diff Balls,
TLR2951
3/32mm (14) 22/T/SCT
TLR2952 Silicone Diff Grease, 8cc: 22
TLR2953 Diff Gear, 51T: 22
TLR2954 Drive Rings (2): 22
TLR2955 Outdrive Set: 22
TLR2958 Diff Through Screw & Nut: 22
