CONTROL PANEL

• Some functions described in this manual may not be applicable to your unit.
• Consult your nearest authorized dealer for further information.
• For normal operation, the
13
14
15
16
23

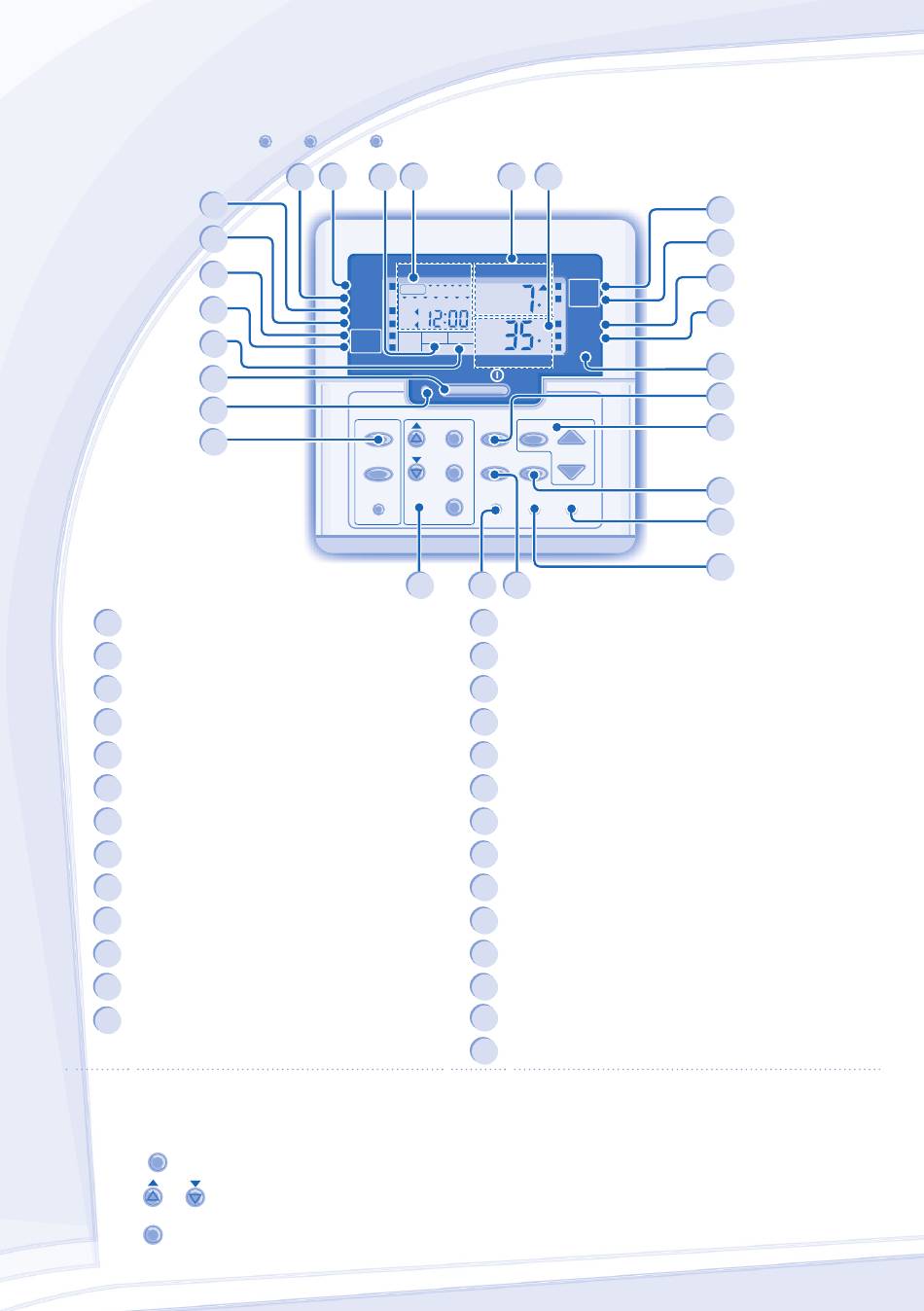

1
OFF/ON Button
2
Operation LED
3
Operation Mode Button
4
Quiet Operation Button
5
Indoor Unit Backup Heater Enabling Button
6
System Setting Mode Buttons
7
Timer Setting Group Buttons
8
Force Heater Mode Button
9
System Pumpdown Mode Button
10
System Status Check Mode Buttons
11
Heat Mode OFF/ON Indicator
12
Cool Mode OFF/ON Indicator
13
Tank Mode OFF/ON Indicator
CONTROL PANEL PREPARATION
Setting Current Day and Time
CLOCK
1. Press .
2. Press or
SET
3. Press to confi rm.
4. Repeat steps 2 and 3 to set the current time.
4
ERROR
PUMPDW
RESET FORCE
, and
12 11
26
HEAT
COOL
TANK
QUIET
HEATER
FORCE
OPERATION
1
2
TIMER
7
OFF/ON
CLOCK
to set current day.
buttons are not in use.
22 24 25
TIMER OUTDOOR
ACTUAL
HEATER
TIMER
1 2 3 4 5 6
BOOSTER
MONTUEWEDTHU FRI SAT SUN
C
ON
SETTING
OFF
STATUS
SOLAR REMOTE
C
PUMPDW
WATER OUTLET
OFF /ON
SETTING STATUS
SET MODE CHECK
SEARCH
SELECT
QUIET HEATER
ERROR
CANCEL
RESET
FORCE PUMPDW
6 27
4
14
Quiet Operation OFF/ON Indicator
15
Backup Heater Enabled/Disabled Indicator
16
Force Heater Request OFF/ON Indicator
17
Backup Heater Actual Operation (OFF/ON) Indicator
18
Booster Heater Actual Operation (OFF/ON) Indicator
19
System Setting Mode OFF/ON Indicator
20
System Status Check Mode OFF/ON Indicator
21
System Pumpdown Mode OFF/ON Indicator
22
Timer/Clock Setting Display
23
External Thermo Controller Connected Display
24
Outdoor Ambient Temperature Display
25
Water Outlet Temperature Display
26
Solar Display
27
Error Reset Button
Notes:
• The current day and time need to be set when:
- The power is turned on for the fi rst time.
- After a long time has elapsed since the power was last
turned on.
• The current time that has been set will be the standard
time for all the Timer operations.
