Batteries must not be connected until the charger is correctly supplied with power.
The charger will warn you of incorrect connection of batteries. If the message 'Re-
verse Polarity' is displayed, remove the battery immediately and only then discon-
nect the charger from the power supply. The charger must be supplied with power
while the batteries are still connected.
Always check that you have set the charging parameters correctly before connect-
ing a battery. If the settings are incorrect, the battery may become damaged. It catch
fire or explode. Check that your wiring has the correct polarity.
Always connect the charging cables to the charger first and only then connect the
other ends to the battery to avoid short-circuits. Conversely, always disconnect a
battery from the charging cables first after charging. Never remove the charging
cables from the charger while the battery is still connected.
Important information on charging/discharging multi-cell lithium batteries with a balan-
cer connection:
Multi-cell lithium batteries usually have a balancer connection. This allows the charger to
monitor the voltage of each individual cell separately.
The charger adjusts the voltage of all cells to one another in the event of deviations. The
balancer therefore prevents one or multiple cells from over or undercharging. The balancer
therefore protects both against overcharging (which can lead to fire or explosion) and against
deep discharge of a single cell, ensuring optimal performance of the battery in your model.
Connecting a battery to the charger:
1. Start by connecting the charging cables to the two battery connections (3 and 4) of the
charging outputs. Ensure that the battery is inserted with the correct polarity (red cable =
positive/+, black cable = negative/-).
2. Connect the charger to the power supply.
The charging cable must not be connected to the battery yet. This may result in
a short-circuit of the charging cable connector, which could cause a fire or explosion.
3. The balancer connection (5) is used for connection of the balancer cable. Always insert
the balancer cable connector into the socket with the connector aligned to the right. The
negative terminal of the battery's balancer connector should usually be marked (e.g. black
cable).
4. If the balancer connector of the battery does not match the shape of the balancer connec-
tion socket, you must use a suitable connection cable. You can obtain the cable from an
accessories retailer.
5. Now, connect the charging cable to the battery. Ensure that the battery is inserted with the
correct polarity (red cable = positive/+, black cable = negative/-).
6. Connect the balancer connector of a multi-cell lithium battery to the corresponding connec-
tion. Do not use force when connecting. Ensure the correct polarity.
• Connect an external temperature sensor for battery temperature monitoring (not included) to
the temperature sensor connection (2). Temperature sensors can be purchased separately
from Conrad using item no. 2258298.
Example for charging a lithium battery with balancer connector:
To disconnect a battery, proceed as follows:
1. If a multi-cell lithium battery is connected to the balancer board via the balancer cable,
disconnect the cable from the balancer board first.
2. Then, disconnect the charging cable from the battery
3. Finally, disconnect the charging cable from the charger. Always proceed as follows:
The battery must always be disconnected from the charging cable (and from the
balancer connection in the case of lithium batteries) first. Only then can the charging
cable be disconnected from the charger.
Any other sequence may cause a short-circuit through the two round plugs of the
charging cable connected to the battery, plus there is also a risk of fire and explo-
sion.
4. If there is no longer a battery connected to the charger, you can disconnect the charger
from the power supply.
e) Charging
1. Connect the charging cables of the battery to the charger, ensuring the correct polarity
(red + positive, black - negative). Connect a balancer board to the balancer connection (5).
2. Connect the charger to the AC power supply and verify that all settings for the battery to be
charged are set correctly.
3. Connect the charging connection cable(s) of the battery to the charging cables connected
to the charger/board.
4. Start the charging function. Wait until the charger starts and the correct charging param-
eters are shown on the LC display (10).
5. When charging is complete, disconnect the balancer cable from the balancer board and
only then remove the battery charging connections from the charging cables.
When a balancer cable is connected, the charger automatically detects the number
of cells.
General information on using the menu
An overview of the menu structure can be found in the next section.
The charger is operated via an illuminated LC display and four buttons.
a) Settings on the charger (general)
The charger must display the main menu.
1. In the main menu, use the STATUS DEC - and/or STATUS INC + buttons (7) and (8) to
select the desired submenu and confirm the selection with one of the ENTER START
buttons (6).
• Use the STATUS DEC - and/or STATUS INC + buttons to select the various settings.
• To change a value or setting, press the ENTER START button (6). The display flashes.
• Now, modify the value flashing on the display with the STATUS DEC - and/or STATUS INC
+ buttons.
• Save the (modified) value with the ENTER START button (6).
• Press the STOP BATT/PROG
button several times returns you to the main menu.

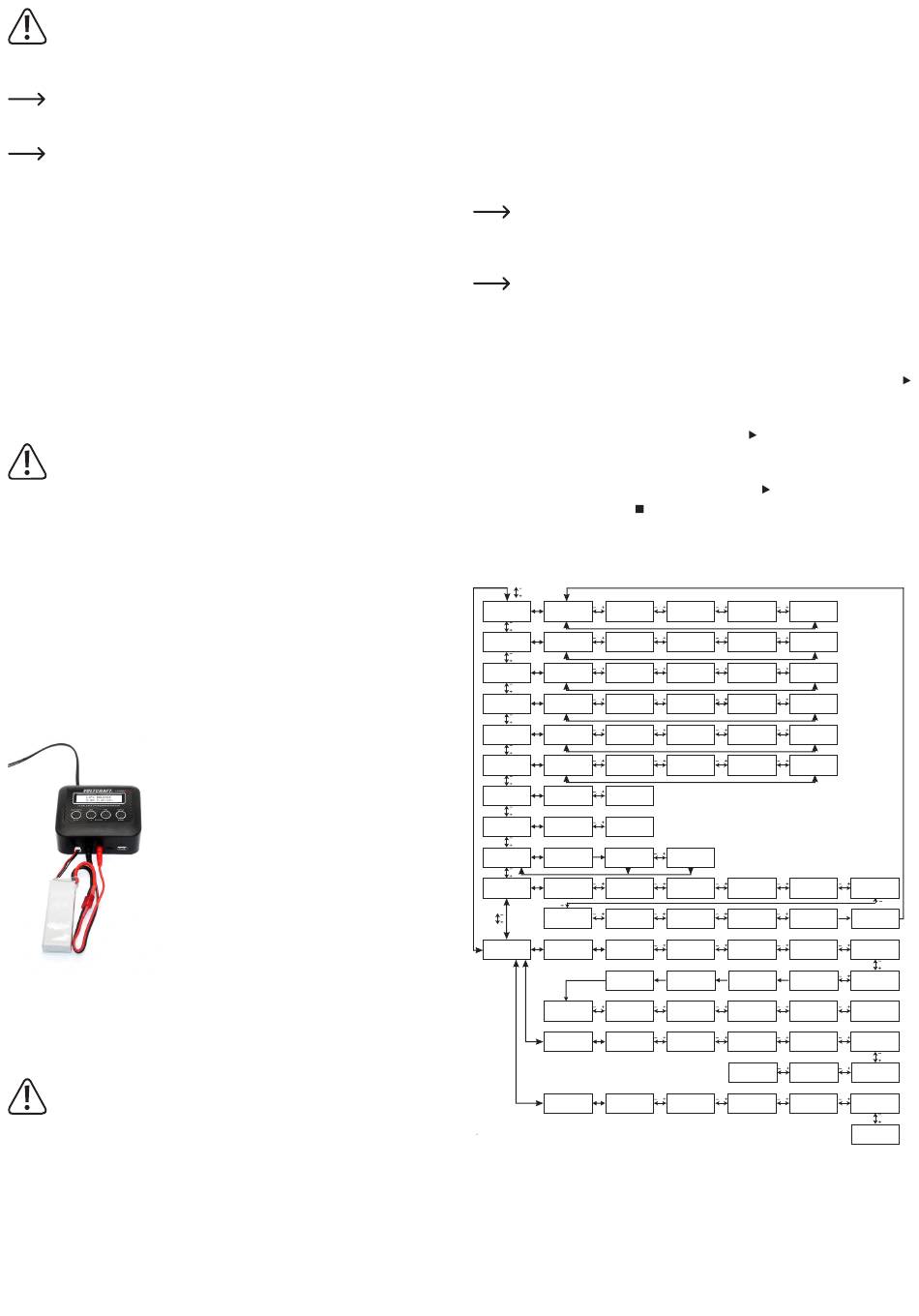

Menu structure

BATT/PROGRAM START LiPo BALANCE LiPo CHARGE
LiPo BATT 2.0A 7.4V (2S) 2.0A 7.4V (2S)
STOP
BATT/PROGRAM LiFe BALANCE LiFe CHARGE
START
LiFe BATT 2.0A 6.6V (2S) 2.0A 6.6V (2S)
STOP
BATT/PROGRAM Lilo BALANCE Lilo CHARGE
START
Lilo BATT 2.0A 7.2V (2S) 2.0A 7.2V (2S)
STOP
BATT/PROGRAM START LiHV BALANCE LiHV CHARGE
LiHV BATT 2.0A 7.6V (2S) 2.0A 7.6V (2S)
STOP
BATT/PROGRAM START NiMH CHARGE NiMH Auto CHARGE
NiMH BATT CURRENT 2.0A CURRENT 3.0A
STOP
BATT/PROGRAM START NiCd CHARGE NiCd Auto CHARGE
NiCd BATT CURRENT 2.0A CURRENT 3.0A
STOP
BATT/PROGRAM Pb CHARGE Pb DISCHARGE
START
Pb BATT 4.0A 12.0V (6P) 1.0A 12.0V (6P)
STOP
BATT/PROGRAM 4.20V 4.20V MAIN 16.80V
START
BATT METER 4.20V 4.20V H4.200V L4.200V
STOP
BATT/PROGRAM START BATTERY CHECK 12mΩ 13mΩ
................................
BATT RESISTANCE 12mΩ 13mΩ
STOP
STOP
BATT/PROGRAM START Safety Timer Capacity Cut-Off
SYSTEM SETTING-> ON 120Min ON 5000mAH
STOP
NiMH Sensitivity NiCd Sensitivity
D.Peak 4mV
D.Peak 4mV
BATT/PROGRAM [ BATT MEMORY 1 ] BATT TYPE
START START
BATT MEMORY ENTER SET LiPo
STOP STOP
[ BATT MEMORY 1 ]
C:4.9A D:2.2A
ENTER CHARGER LiPo BALANCE
LOAD...... 4.9A 7.4V (2S)
[ BATT MEMORY 2 ] BATT TYPE
START START
NiMH 7.2V (6S) NiMH
STOP
STOP
START [ BATT MEMORY 3 ] START BATT TYPE
Pb 12.0V (6S) Pb
STOP
STOP
button (9) to return to the previous menu. Pressing this
LiPo FAST CHG LiPo STORAGE LiPo DISCHARGE
2.0A 7.4V (2S) 2.0A 7.4V (2S) 1.0A 7.4V (2S)
LiFe FAST CHG LiFe STORAGE LiFe DISCHARGE
2.0A 6.6V (2S) 2.0A 6.6V (2S) 1.0A 6.6V (2S)
Lilo FAST CHG Lilo STORAGE Lilo DISCHARGE
2.0A 7.2V (2S) 2.0A 7.2V (2S) 1.0A 7.2V (2S)
LiHV FAST CHG LiHV STORAGE LiHV DISCHARGE
2.0A 7.6V (2S) 2.0A 7.6V (2S) 1.0A 7.6V (2S)
NiMH DISCHARGE NiMH RE-PEAK NiMH CYCLE
1.0A cut: 6.0V 1 CHG>DCHG
STOP
NiCd DISCHARGE NiCd RE-PEAK NiCd CYCLE
1.0A cut: 6.0V 1 CHG>DCHG
BATT PROG/STOP
Total：50mΩ
Temp Cut-Off Temperature unit Ext. Temp
ON 50°C/122°C Celsius Int. Temp
Key Beep ON Version Load Factory Set
HW: 1.00 FW: 2.00
Buzzer ON ENTER
BATT VOLTS CHARGE CURRENT DSCH CURRENT
7.4V ( 2S ) 2.0A
[ BATT MEMORY 1 ] SAVE PROGRAM SAVE PROGRAM
LiPo 7.4V (2S) SAVE.... ENTER
LiPo GHARGE LiPo FAST CHG LiPo STORAGE
4.9A 7.4V (2S) 4.9A 7.4V (2S) 4.9A 7.4V (2S)
BATT VOLTS CHARGE CURRENT TRICKLE
7.2V (6S) 2.0A 100mA
SAVE PROGRAM DSCH VOLTAGE
ENTER 0.5V/CELL
BATT VOLTS CHARGE CURRENT DSCH CURRENT
12.0V (6S) 2.0A
1
1
0C Rest Time
37C CHG>DCHG 10 Min
Enter
Load Factory Set
for 3s
COMPLETE
DSCH VOLTAGE
1.0A 3.0V/CELL
TVC=YOUR RISK
4.20V
LiPo DISCHARGE
2.2A 7.4V (2S)
PEAK DELAY
1 Min
DSCH CURRENT
1.0A
DSCH VOLTAGE
1.0A 1.8V/CELL
SAVE PROGRAM
ENTER
