EN

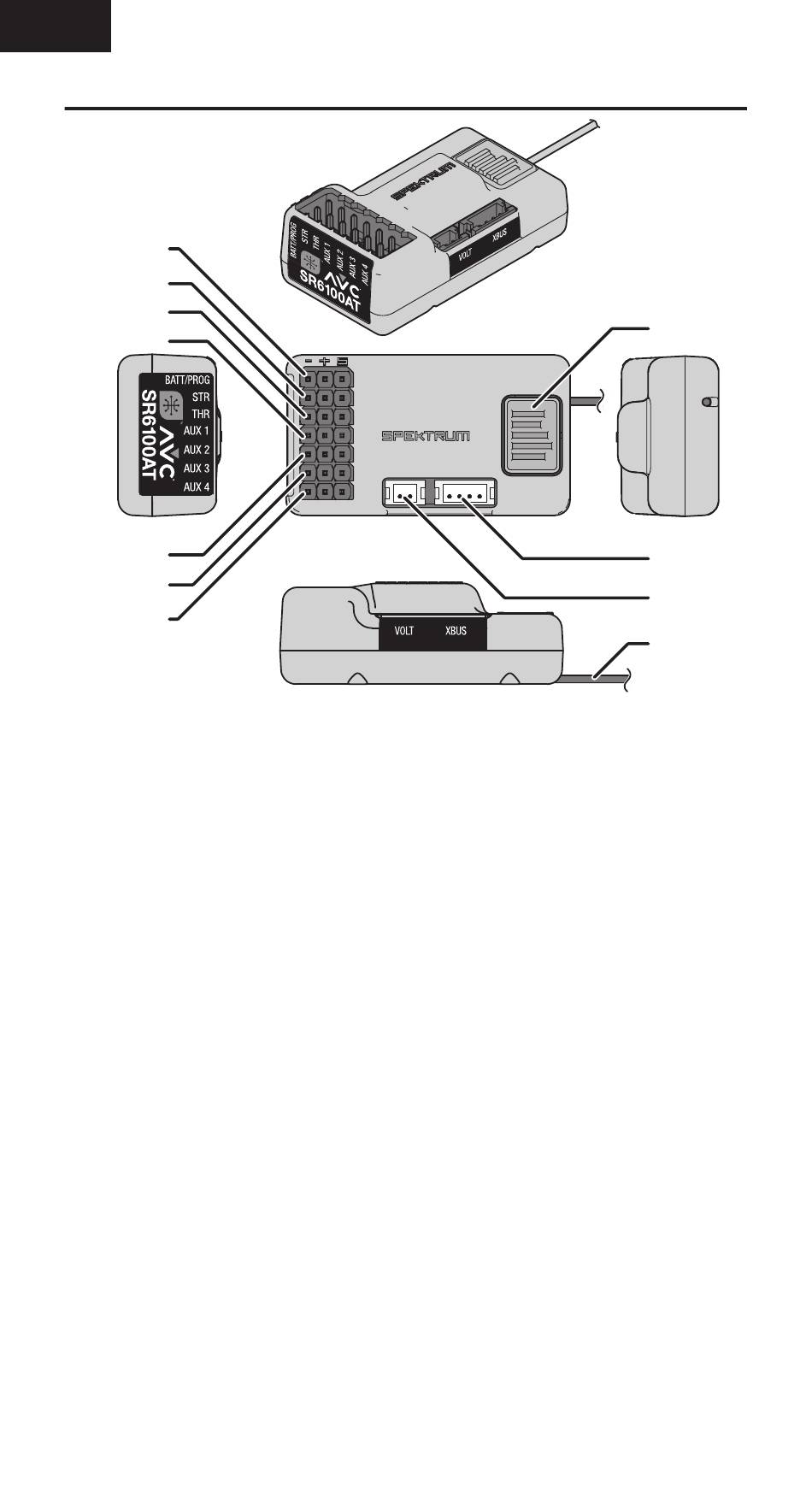

SR6100AT RECEIVER DIAGRAM
Battery/Programming
Steering Port
Throttle Port
AUX 1 Port
AUX 2 Port
AUX 3 Port
AUX 4 Port
POWERING THE RECEIVER WITH A SEPARATE RECEIVER PACK
1.
Connect the steering servo to the steering port (STR)
2.
Connect the throttle servo to the throttle port (THR)
3.
Connect the switch harness and a 3.5V–9.6V battery to the battery (BATT)
port to power on receiver.

POWERING THE RECEIVER WITH AN ESC

1.
Connect the steering servo to the steering port (STR)
2.
Connect the throttle servo to the throttle port (THR). Most ESCs will have an
integrated BEC (battery eliminator circuit) which will power the ESC from the
motor battery, through the throttle lead. Connecting the ESC to any of the ports
on the servo rail will power the receiver when the ESC is turned on.
SMART THROTTLE:
The SR6100AT receiver throttle port includes SMART Throttle. The SR6100AT receiver
throttle port will automatically detect when a SMART Throttle compatible ESC is plugged in
and the throttle port will begin to operate in SMART Throttle mode.
ESCs with SMART Throttle and IC series connectors can also pass along battery
data from compatible Spektrum SMART batteries.
The SR6100AT is compatible with the Spektrum Firma™ line of ESCs for SMART Throttle.
NORMAL SERVO SIGNAL (PWM):
If a standard ESC or servo is plugged into the throttle port on the SR6100AT receiver,
the throttle port will operate normally like any conventional RC system (PWM signal).
4
Bind Button
XBus Port
Voltage Port
Antenna
