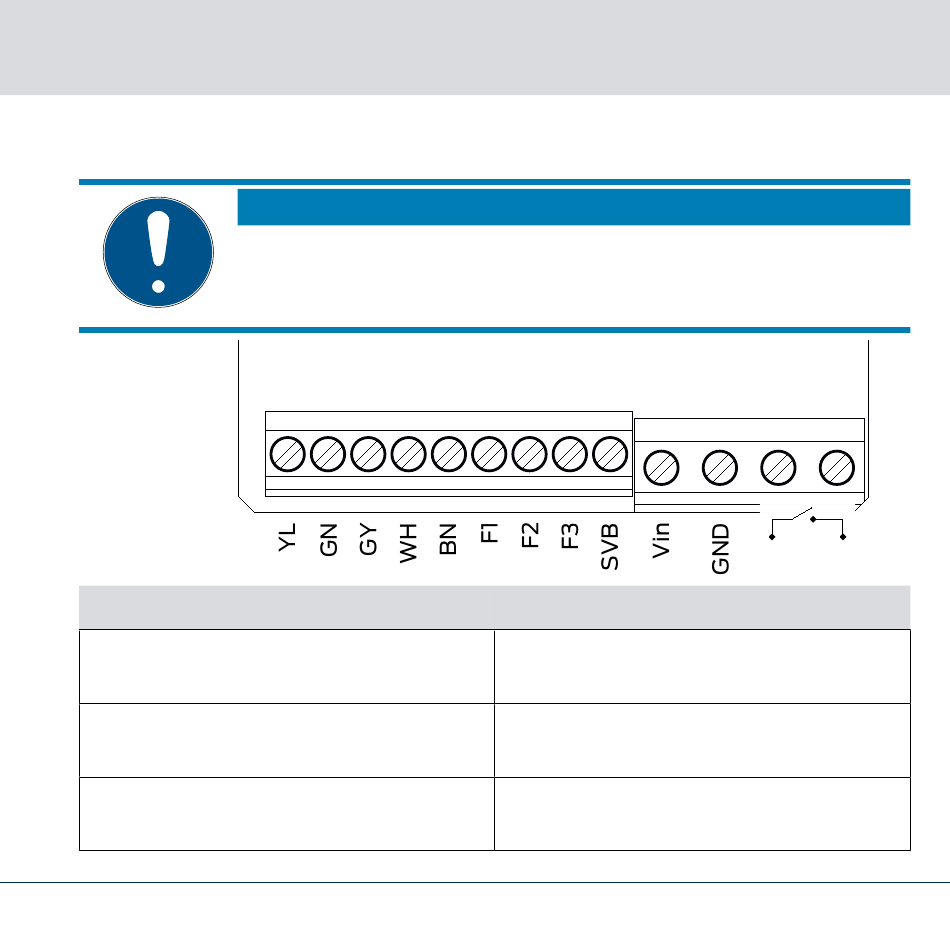

4 Connections

NOTE
Connections depending on equipment
The connectors F1, F2, F3 and SVB are used to connect an external card
reader. They are therefore only available in the MH variant.
Code
YL
GN
GY
EN
1 2 3 4 5 6 7 8 9
1
Position
Connection of an external antenna: Yel-
low cable
Connection of an external antenna Green
cable
Connection of an external antenna: Grey
cable
4. Connections
