GB | Colour Video Doorphone Set
Contents of delivery
Video monitor: 1 pc
Mounting bracket for monitor: 1 pc
Outdoor camera unit: 1 pc
Power supplier PSU 12 V DC: 1 pc
Screws: 6 pcs
Technical description of the video monitor
see Fig. 1
1 – Speaker
2 – Monitor (preview)
3 – Lock 1
4 – Lock 2
5 – Talk
6 – Microphone
Installation
Choosing the location for monitor installation
Choose the place for installation of the video monitor while keeping in mind the preparation of cables. It is recommended to
install the video monitor at approximately eye height of the user.
Installation of the video monitor bracket
Mark the fixing holes for the bracket on the wall. Drill out the holes and insert the wall plugs. It is also necessary to make a
bigger hole in the middle of the bracket to allow for all cables to be connected to the monitor (the camera cable, PSU cable
and door release cables).Screw the bracket onto the wall.
Wiring the camera and monitor
Connect the outdoor camera to the monitor by cable according to the wiring scheme. To avoid damaging the system, please
double check the wiring is correct.
Fitting the monitor on the bracket
Attach the hold points on the back of the monitor to the bracket. Use mild force to press and slide the monitor down onto
the bracket until it clicks in. The monitor is now secured.
PSU connection
Plug the power supplier into the socket with the mains 230 V AC/50 Hz. Plug the power connector into the designated
connection on the back of the video monitor.
Videophone system wiring
Connection description (see Fig. 2)
1 – Audio
2 – GND
3 – Video
4 – Power +12 V

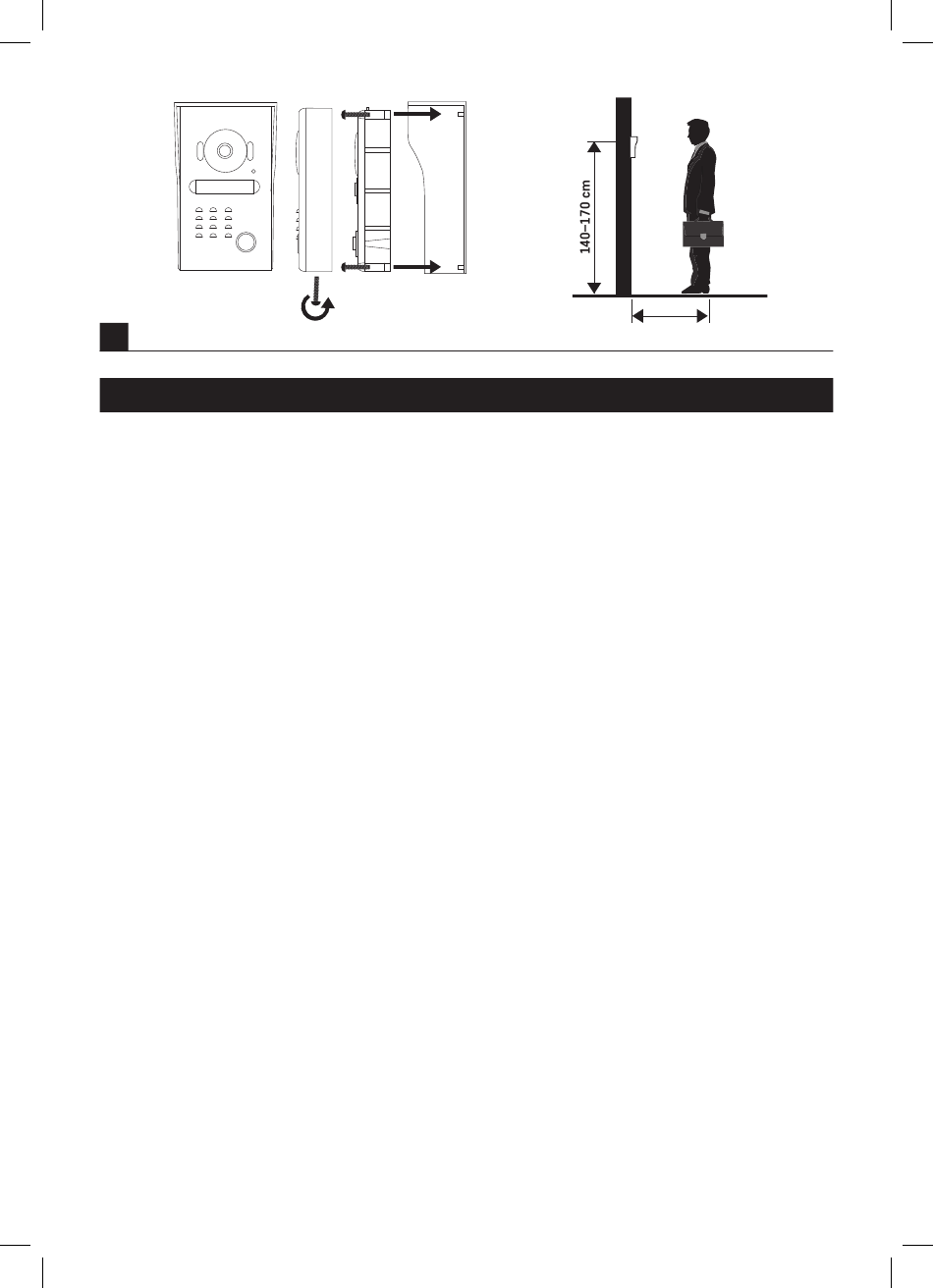

Outdoor camera unit installation
see Fig. 3
1. Unscrew the screw at the bottom of the plastic rain shield and pull the camera unit out of the plastic shield.
2. Take the metallic cover off the outdoor station (optional).
7 – Brightness
8 – Chroma
9 – Speech volume
10 – Melody selection
11 – Melody volume
5 – Electric door release DC 12 V
6 – Electric door release GND
7 – Gate COM
8 – Gate NO
3
40 cm
