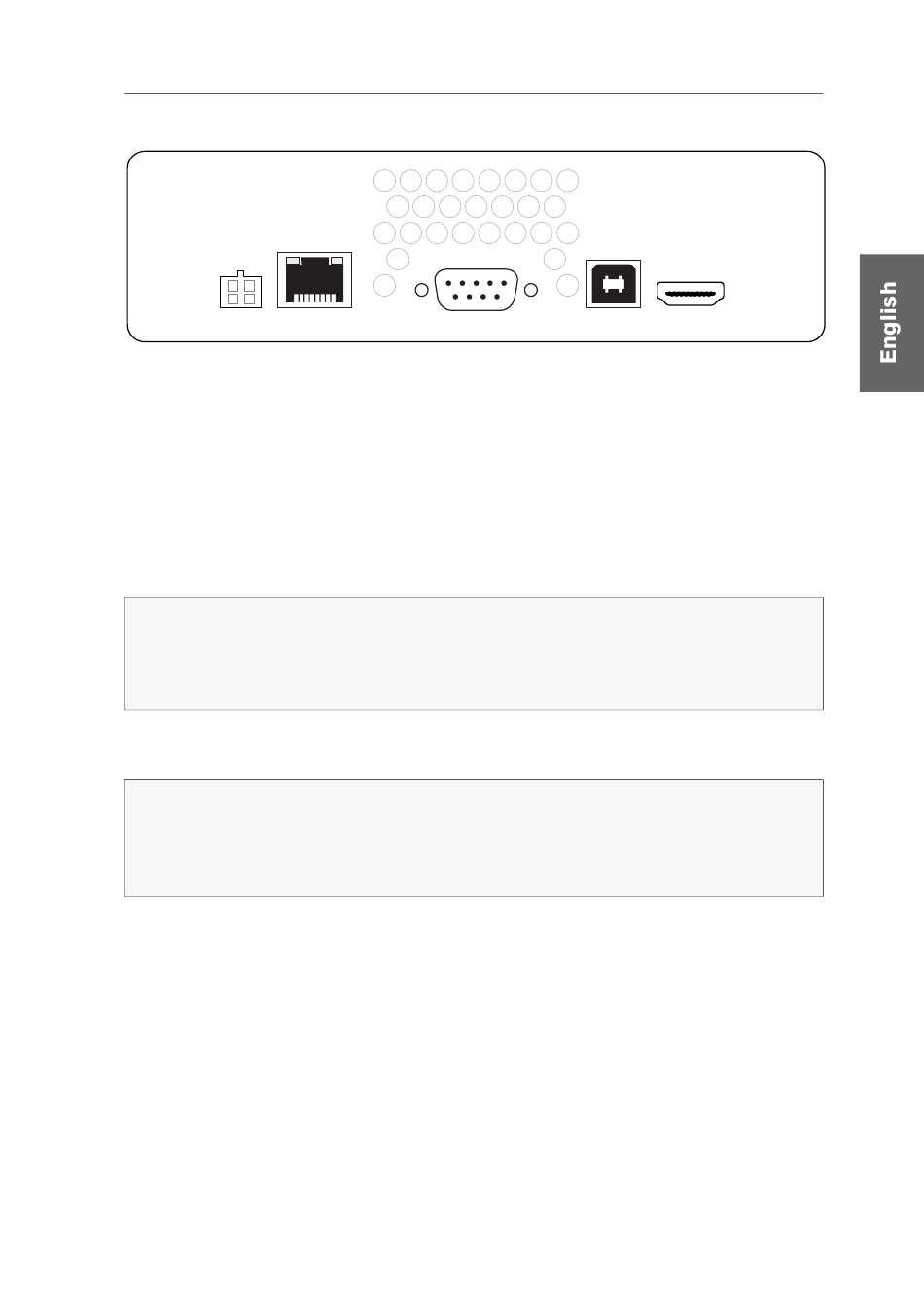

Interfaces on the back panel

Power Network
Plug the connection cable of the supplied table power pack into this interface.
Power:
Connect the table power pack to a mains socket.
Plug in a category 5e (or higher) twisted-pair cable, which is available as
Network:
accessory. Connect the other end of the cable to a gigabit network.
Optionally, connect the computer whose terminal emulator (e.g. Tera Term
Service:
or PuTTY) you want to use to execute CLI commands.
Connect a USB port of a compatible G&D device or a computer to this inter-
USB In:
face.
ADVICE: When connecting a compatible G&D device, it is recommended to set
the single mouse mode in the RemoteAccess-GATE.
For detailed information about the single mouse mode, refer to the section of the sep-
arate Configuration and Operation manual for the client you are using (see page 6).
Connect the HDMI video output of a compatible G&D device or computer
HDMI In:
to this interface.
NOTE: To connect a G&D device including a
HDM-Converter-Cable (A6300156), which is available as accessory.
To connect a G&D device including a
Cable (A6400049), which is available as accessory.
Service USB In
DisplayPort connector, use the DP-
DVI connector, use the DVI-HDMI-Adapter-
G&D RemoteAccess-GATE · 5
Installation
HDMI In
