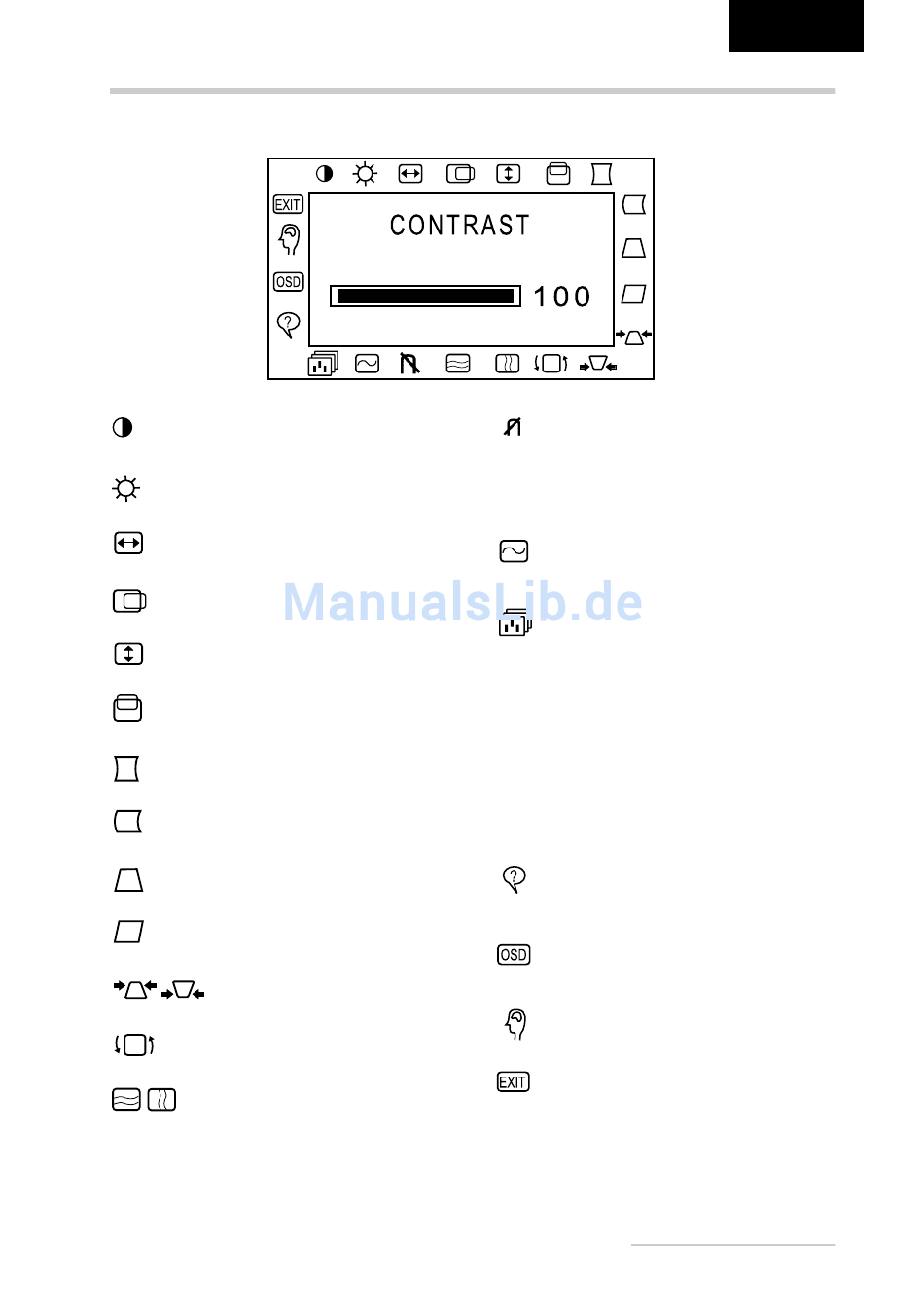

OSD MENU FUNCTIONS

Contrast
Controls the picture contrast.
Brightness
Controls the picture brightness.
H. Size
Controls the horizontal image size.
H. Position
Controls the horizontal position.
V. Size
Controls the vertical image size.
V. Position
Controls the vertical position.
Pincushion
Corrects pincushion distortion.
Pin balance
Corrects parallel distortion of edges.
Trapezoid
Corrects inward/outward slanted edges.
Parallel
Corrects parallel slanted edges.
Top / Bottom corner
Correct distorted corners.
Rotation
Corrects tilted image.
H + V Moiré
Corrects moiré patterns. Moiré patterns are interference
patterns that appear as wave lattices (especially prone
to appear in black-white alternating dot patterns).
Usually, this interference can be removed; however, it
can sometimes only be reduced.
Degauss
Corrects image color distortions. The color distortion
may be due to interference from the earth's magnetic
field, e.g. when the monitor is rotated or moved. This
function is triggered by selecting the function symbol
and pressing the OSD button ENTER.
Disp. freq.
Displays the current graphics mode (horizontal and
vertical frequency).
Color
Using these icons, you can select one of the preset
color temperatures (9300°K or 6500°K). Confirm your
choice by pressing the ENTER button. If you want to
change the color temperatures individually, select USER
and confirm by pressing the OSD button ENTER. Now
you can use the OSD dial to toggle between the settings
R, G and B (red, green and blue foreground). To change
a setting, first press the ENTER button, then choose
the desired value with the OSD dial. To confirm the
setting, press the ENTER button again.
If you don't need to adjust any further settings, choose
the EXIT icon to return to the OSD main menu.
Language
Selection of the OSD menu language: English, Spanish,
French, German, Italian.
OSD position
Adjusts the vertical and horizontal position of the OSD
menu.
Memory recall
Recalls factory settings of the image parameters.
Exit
Closes the OSD menu.
