Installing your DigiSender® XD

Step 2 - Install the Transmitter

The Transmitter will send the audio and video from a connected source (your Satellite Receiver for
example) to the Receiver, located in another room in your home.

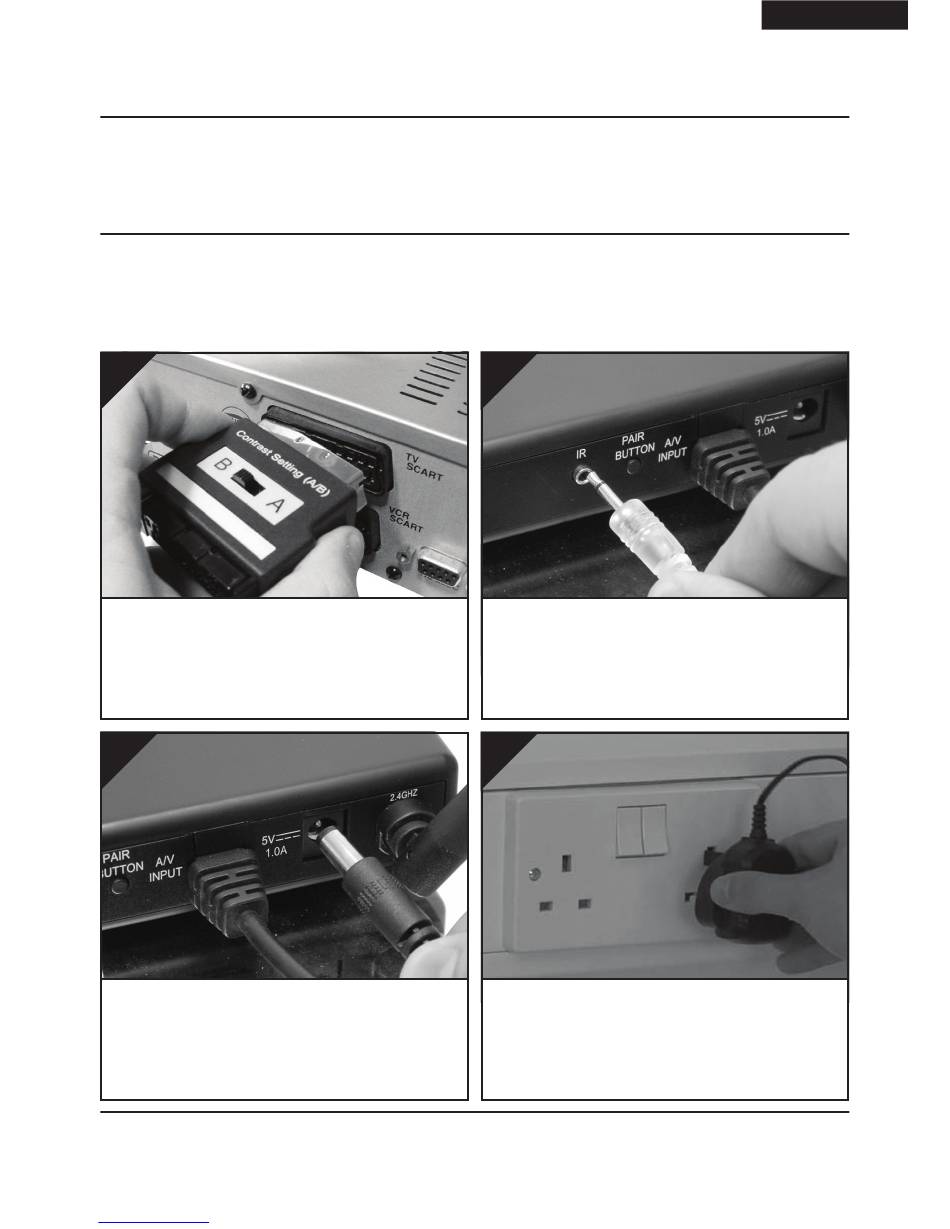

1.
Connect the DigiConnector™ to your Satellite, Ca-
ble or Freeview box. Use the SCART socket labelled
'TV' or 'OUT'. Connect any existing SCART lead into
the rear of the DigiConnector™.
3.
Connect the Power Supply Unit (PSU) to the socket
labelled '5V ~1.0A' on the rear of the Transmitter.
Please read the instructions carefully prior to installation
Downloaded from www.Manualslib.com
DGXDSDV111 - DigiSender® XD - Single Input Digital Wireless AV Sender System
manuals search engine
2.
Connect the IR Emitter to the socket labelled 'IR' on
the back of the Transmitter. See Page 06 for more
information on installing the IR Systeme Technik™.
4.
Connect the PSU to an available mains socket. The
Power Indicator will light up Red to indicate that the
unit is in Standby Mode.
ENGLISH (EN)
Page 05
