Suzuki 93900-318 Serie Montageanleitung

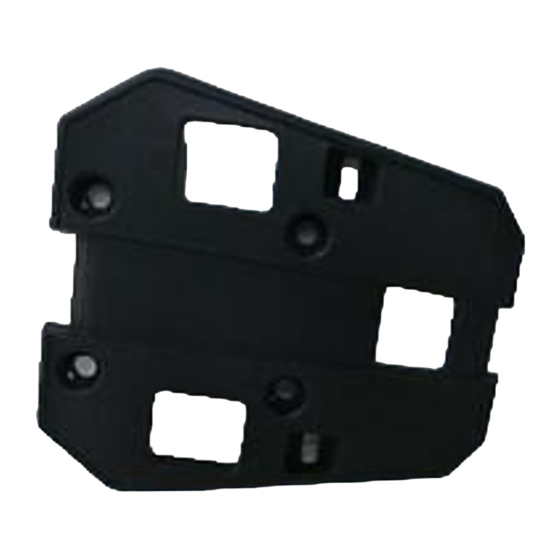

Plastic Top Case Plate
Description:
Applications:
DL650A/XA L7-, DL1000A/XA L4-, DL1050RQ/RC M0
Ref.
Contents
Ref. Description
Tools
Required
(1) Box wrench (13 mm)
(2) T wrench (10, 13 mm)
(3) Hexagon socket (13 mm)
(4) Torque wrench

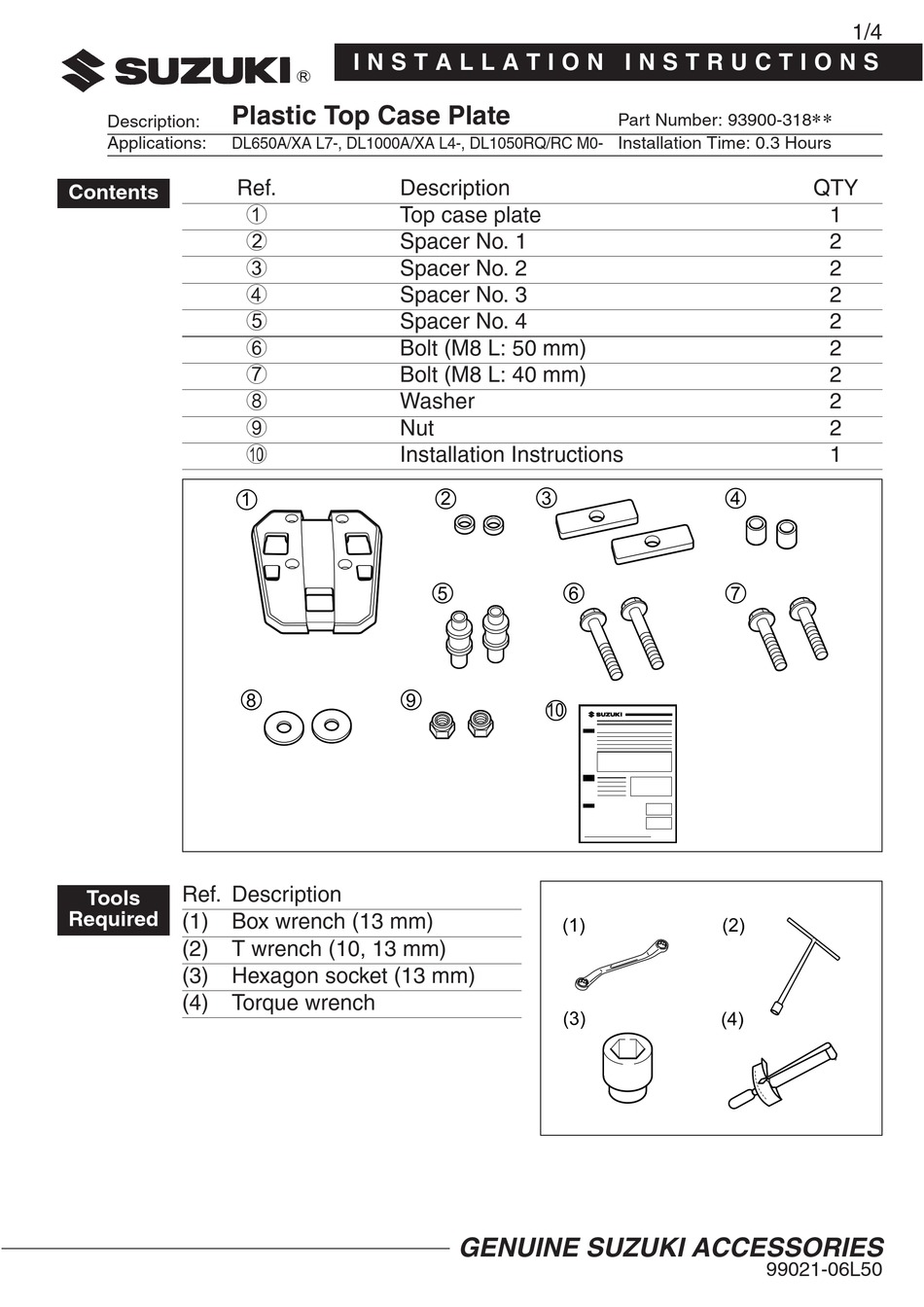

I N S T A L L A T I O N I N S T R U C T I O N S
Description
1
Top case plate
2
Spacer No. 1
3
Spacer No. 2
4
Spacer No. 3
5
Spacer No. 4
6
Bolt (M8 L: 50 mm)
7
Bolt (M8 L: 40 mm)
8
Washer
9
Nut
0
Installation Instructions
8 9
- Installation Time: 0.3 Hours
2 3
5 6
10
(1)
(3)
GENUINE SUZUKI ACCESSORIES
Part Number: 93900-318
4
7
(2)
(4)
99021-06L50
1/4
QTY
1
2
2
2
2
2
2
2
2
1
