Familiarising Yourself With Your Appliance; Basic Operation - Junker JR36DT5 Serie Gebrauchsanleitung

4

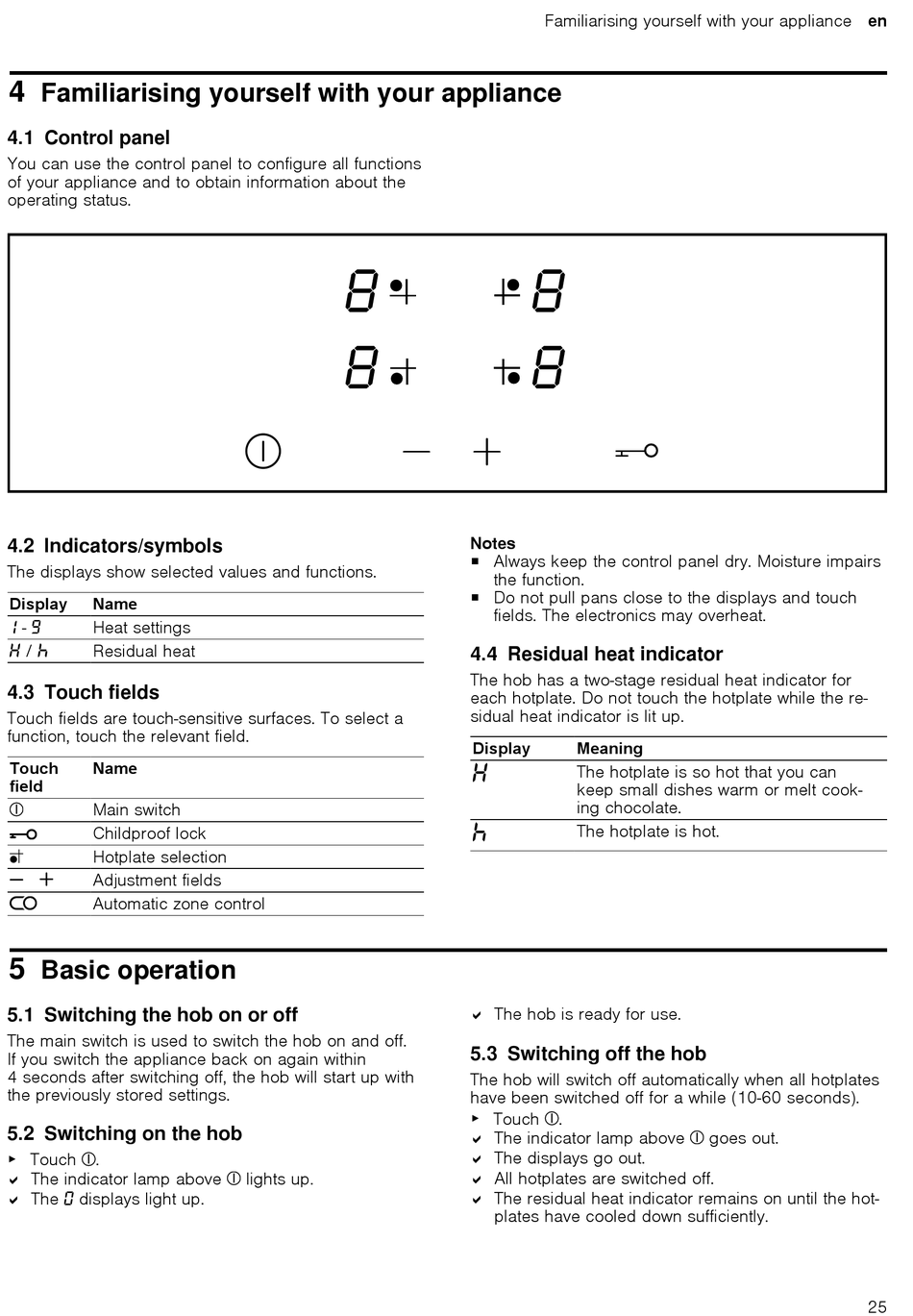

Familiarising yourself with your appliance

4.1 Control panel
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
4.2 Indicators/symbols
The displays show selected values and functions.
Display Name
- Heat settings
/ Residual heat
4.3 Touch fields
Touch fields are touch-sensitive surfaces. To select a
function, touch the relevant field.
Touch Name
field
Main switch
Childproof lock
Hotplate selection
⁠ Adjustment fields
Automatic zone control
5

Basic operation

5.1 Switching the hob on or off
The main switch is used to switch the hob on and off.
If you switch the appliance back on again within
4 seconds after switching off, the hob will start up with
the previously stored settings.
5.2 Switching on the hob
Touch .
▶
a The indicator lamp above
a The displays light up.
lights up.
Familiarising yourself with your appliance en
Notes
¡ Always keep the control panel dry. Moisture impairs
the function.
¡ Do not pull pans close to the displays and touch
fields. The electronics may overheat.
4.4 Residual heat indicator
The hob has a two-stage residual heat indicator for
each hotplate. Do not touch the hotplate while the re-
sidual heat indicator is lit up.
Display Meaning
The hotplate is so hot that you can
keep small dishes warm or melt cook-
ing chocolate.
The hotplate is hot.
a The hob is ready for use.
5.3 Switching off the hob
The hob will switch off automatically when all hotplates
have been switched off for a while (10-60 seconds).
Touch .
▶
a The indicator lamp above
a The displays go out.
a All hotplates are switched off.
a The residual heat indicator remains on until the hot-
plates have cooled down sufficiently.
goes out.
25
