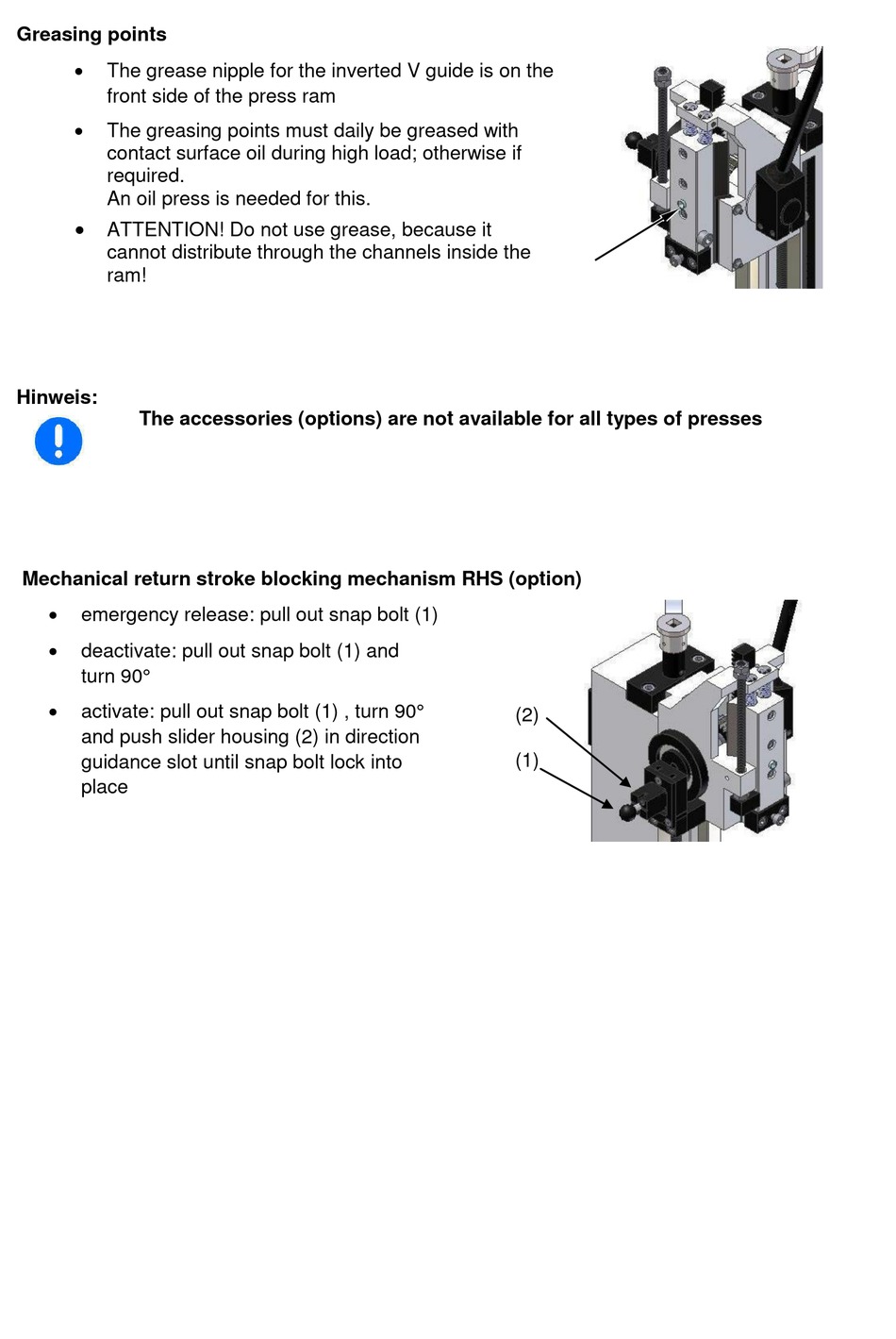

Greasing points
The grease nipple for the inverted V guide is on the
front side of the press ram
The greasing points must daily be greased with
contact surface oil during high load; otherwise if
required.
An oil press is needed for this.
ATTENTION! Do not use grease, because it
cannot distribute through the channels inside the
ram!
Hinweis:
The accessories (options) are not available for all types of presses
Mechanical return stroke blocking mechanism RHS (option)
emergency release: pull out snap bolt (1)
deactivate: pull out snap bolt (1) and
turn 90°
activate: pull out snap bolt (1) , turn 90°
and push slider housing (2) in direction
guidance slot until snap bolt lock into
place
(2)
(1)
