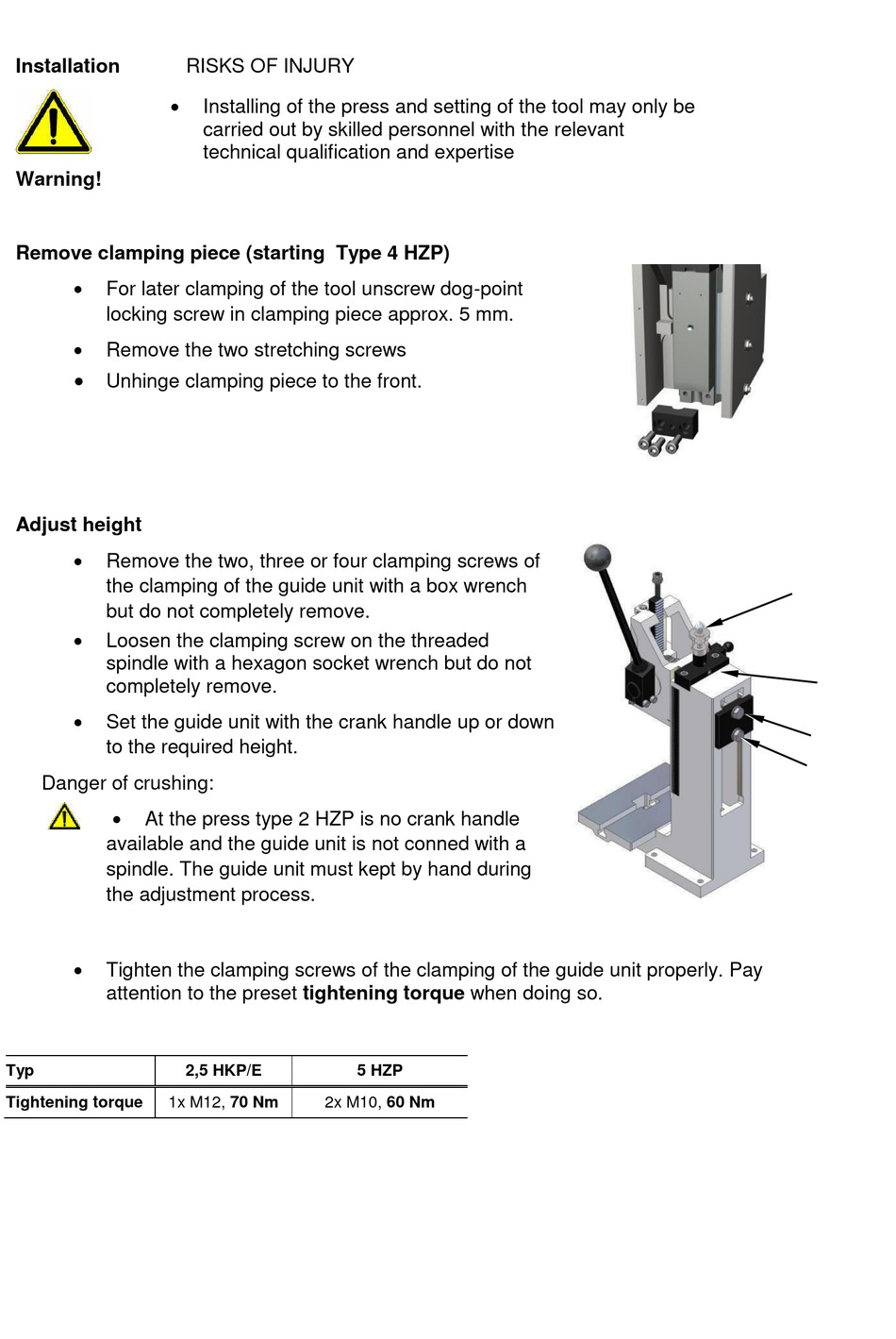

Installation
Warning!
Remove clamping piece (starting Type 4 HZP)
For later clamping of the tool unscrew dog-point
locking screw in clamping piece approx. 5 mm.
Remove the two stretching screws
Unhinge clamping piece to the front.
Adjust height
Remove the two, three or four clamping screws of
the clamping of the guide unit with a box wrench
but do not completely remove.
Loosen the clamping screw on the threaded
spindle with a hexagon socket wrench but do not
completely remove.
Set the guide unit with the crank handle up or down
to the required height.
Danger of crushing:
At the press type 2 HZP is no crank handle
available and the guide unit is not conned with a
spindle. The guide unit must kept by hand during
the adjustment process.
Tighten the clamping screws of the clamping of the guide unit properly. Pay
attention to the preset tightening torque when doing so.
Typ
Tightening torque
1x M12, 70 Nm
RISKS OF INJURY
Installing of the press and setting of the tool may only be
carried out by skilled personnel with the relevant
technical qualification and expertise
2,5 HKP/E
2x M10, 60 Nm
5 HZP
