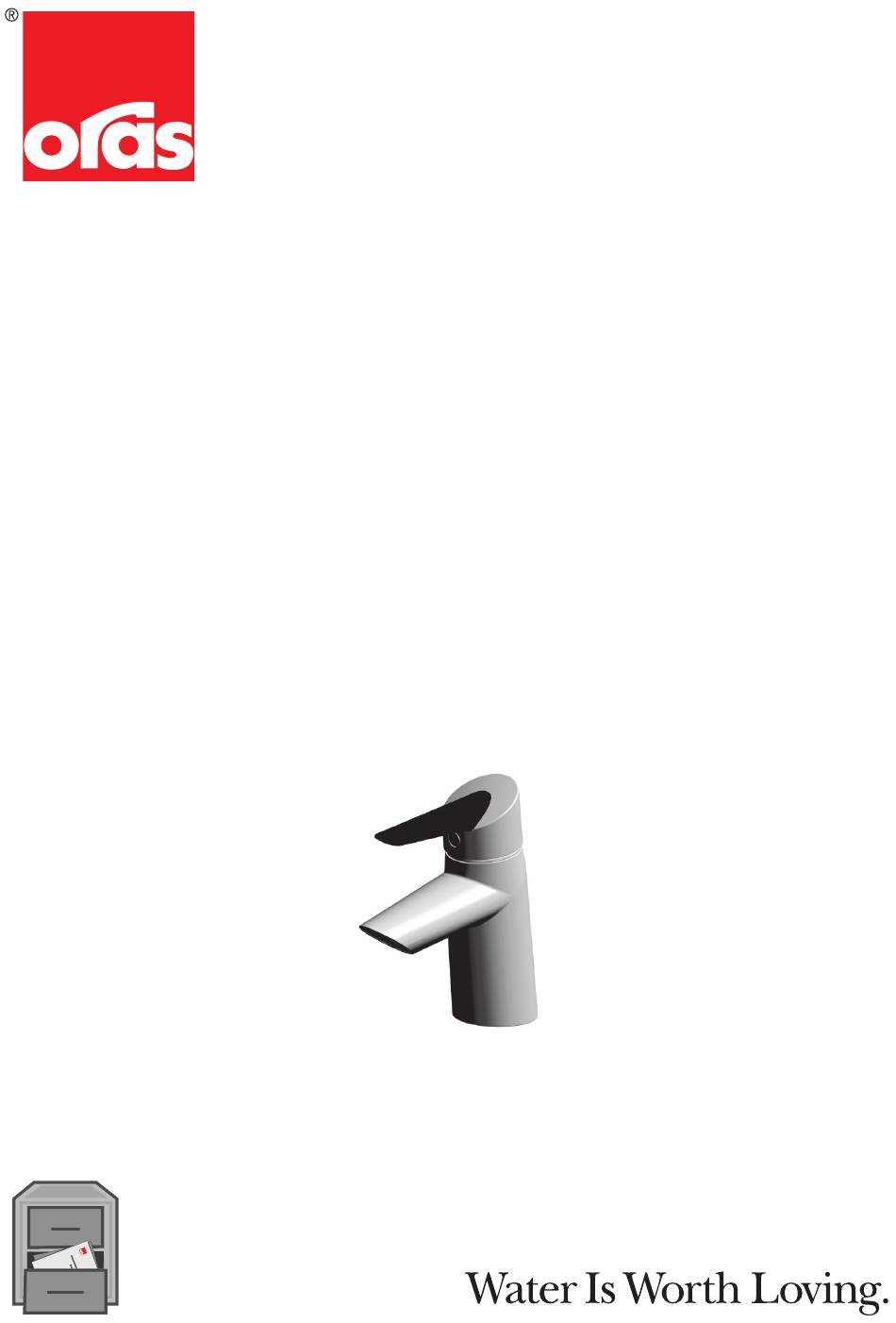

Installation and Maintenance Guide Oras Optima...
Seite 2
Denna produkt är anpassad till Branschregler Säker Vatteninstallation. Oras International Oy garanterar produktens funktion om branschreglerna och monteringsanvisningarna följs.
Seite 3
”Important notes on Oras products”. ES Gracias por seleccionar un producto de Oras. Esta guía de instalación y de mantenimiento le dará a conocer la instalación, las funciones y el uso de la grifería. Por favor, lea la guía cuidadosamente antes de la instalación, y téngala a mano para cualquier mantenimiento que tuviera que realizar en un futuro potencial.
Seite 4
„Svarīgi norādījumi par Oras jaucējkrānu apkopi”. NL Dank u wel voor het kiezen van een Oras product. Deze installatie- en onderhoudsgids zal u de weg wijzen voor installatie, functies en gebruik van de kraan. Gelieve de handleiding aandachtig te lezen alvorens installatie, en houdt het bij de hand voor toekomstig onderhoud.
Contents CZ Obsah ES Contenidos LT Turinys PL Spis treści DE Inhaltsübersicht FI Sisällysluettelo LV Saturs RO Cuprins DK Indholdsfortegnelse FR Sommaire NL Inhoud RU Coдержание EE Sisukord IT Indice NO Innhold SE Innehållsförteckning SK Obsah Technical data ............6-7 Installation ..............
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 2700F, 2710F F-Model Oval<15% R>30mm max 30 9 mm SW 19...
Seite 9
Installation CZ Montáž FI Asennus RO Instalare LV Montāža DE Montage RU Установка FR Installation NL Installatie DK Installation SE Installation IT Montaggio NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 2702F, 2712F F-Model Oval<15% R>30mm max 30 9 mm SW 17...
Seite 10
Installation/Operation PL Instalacja/Działanie CZ Montáž/Funkce FR Installation/Utilisation DE Montage/Funktion RO Instalare /Funcţionare IT Montaggio/Funzionamento DK Installation/Betjening RU Установка/Принцип действия LT Montavimas/Veikimo principas EE Paigaldus/Toimimine SE Installation/Funktion LV Montāža/Darbības princips ES Montaje/Servicio SK Inštalácia/Prevádzka NL Installatie/Bediening FI Asennus/Toiminta NO Montering/Funksjon push up 4 mm push down Rinsing...
Spare parts CZ Náhradní díly FI Varaosat LV Rezerves daļas RO Piese de schimb DE Ersatzteile FR Pièces détachées NL Reserve-onderdelen RU Запасные части DK Reservedele IT Pezzi di ricambio NO Reservedeler SE Reservdelar EE Varuosad PL Części zamienne LT Atsarginės dalys SK Náhradné...
2701F EN 817, EN 15091 ø 52 I (ISO 3822) Oras lab. 100 - 1000 kPa 0.13 l/s (300 kPa) G 1/2 G 1/2 ø 33 - 35 ø 63 170 kPa (0.1 l/s) G 1/2 max. +70°C = 350...
Seite 13
2703F EN 817, EN 15091 I (ISO 3822) Oras lab. 100 - 1000 kPa 0.13 l/s (300 kPa) G 1/2 G 1/2 ø 33 - 35 = 1500 170 kPa (0.1 l/s) ø 63 G 1/2 G 1/2 max. +70°C...
Seite 14
2705F EN 817, EN 15091 ø 52 I (ISO 3822) Oras lab. 100 - 1000 kPa 0.13 l/s (300 kPa) G 1/2 G 1/2 ø 33 - 35 = 1500 170 kPa (0.1 l/s) ø 63 G 1/2 G 1/2 max.
Seite 15
2701FT EN 817, EN 15091 ø 52 I (ISO 3822) Oras lab. 100 - 1000 kPa 0.13 l/s (300 kPa) G 1/2 G 1/2 ø 33 - 35 170 kPa (0.1 l/s) ø 63 G 1/2 max. +70°C = 350...
Seite 16
2705FT EN 817, EN 15091 ø 52 I (ISO 3822) Oras lab. 100 - 1000 kPa G 1/2 G 1/2 0.13 l/s (300 kPa) ø 33 - 35 = 1500 ø 63 170 kPa (0.1 l/s) G 1/2 G 1/2 max.
Installation CZ Montáž RO Instalare FI Asennus LV Montāža RU Установка DE Montage FR Installation NL Installatie SE Installation DK Installation IT Montaggio NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 2701F (AA 1.5 V Lithium x 2) 2711F (AA 1.5 V Lithium x 2) ø...
Seite 19
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje max 30 9 mm SW 24 SW 17 SW 19 F-Model...
Seite 20
Installation CZ Montáž FI Asennus RO Instalare LV Montāža DE Montage RU Установка FR Installation NL Installatie DK Installation SE Installation IT Montaggio NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 2705F 1/4 x SW 24 2705FT 230 V/5 V 1/4 x...
Seite 21
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 1/4 x SW 24 ø 6 ø...
Seite 22
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 38°C 22 (48)
Seite 23
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 2703F, 2713F, 2703FT 2705F, 2715F, 2705FT ø...
Seite 24
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje Connect push 5 s max 1 min push 5 s max 1 min Disconnect...
Seite 25
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje 2705F (AA 1.5 V Lithium x 2) 2705FT (230 /5V) 230 V/5 V 25 (48)
Installation/Operation PL Instalacja/Działanie CZ Montáž/Funkce FR Installation/Utilisation DE Montage/Funktion RO Instalare /Funcţionare IT Montaggio/Funzionamento DK Installation/Betjening RU Установка/Принцип действия LT Montavimas/Veikimo principas EE Paigaldus/Toimimine SE Installation/Funktion LV Montāža/Darbības princips ES Montaje/Servicio SK Inštalácia/Prevádzka NL Installatie/Bediening FI Asennus/Toiminta NO Montering/Funksjon push up 4 mm push down Rinsing...
Seite 27
Operation CZ Funkce ES Servicio LT Veikimo principas PL Działanie DE Funktion FI Toiminta LV Darbības princips RO Funcţionare DK Betjening FR Utilisation NL Bediening RU Принцип действия EE Toimimine IT Funzionamento NO Funksjon SE Funktion SK Prevádzka cold 2701F, 2711F, 2701FT 2705F, 2715F , 2705FT on/off automatic o...
To change the cartridge CZ Výména kartuše LV Regulēšanas mehānisma kasetes maiņa DE Ein- und Ausbau der Kartusche NL Vervangen van het keramische binnenwerk DK Udskiftning af reguleringskassette (unit) NO Skifting av kassett EE Seadeosa vahetus PL Wymiana modułu sterującego ES Montaje del cartucho RO Înlocuirea cartuşului FI Säätöosan vaihto...
Changing the battery CZ Výměna baterie LV Baterijas maiņa DE Wechsel der Batterie NL Batterij vervangen DK Udskiftning af batteri NO Bytting av batteri EE Patarei vahetamine PL Wymiana baterii zasilającej ES Cambiar la batería RO Înlocuirea bateriei electrice FI Pariston vaihto RU Замена...
Seite 30
Changing the battery CZ Výměna baterie LV Baterijas maiņa DE Wechsel der Batterie NL Batterij vervangen DK Udskiftning af batteri NO Bytting av batteri EE Patarei vahetamine PL Wymiana baterii zasilającej ES Cambiar la batería RO Înlocuirea bateriei electrice FI Pariston vaihto RU Замена...
Seite 31
Changing the battery CZ Výměna baterie LV Baterijas maiņa DE Wechsel der Batterie NL Batterij vervangen DK Udskiftning af batteri NO Bytting av batteri EE Patarei vahetamine PL Wymiana baterii zasilającej ES Cambiar la batería RO Înlocuirea bateriei electrice FI Pariston vaihto RU Замена...
Seite 32
Changing the factory settings CZ Změna hodnot předem nastavených výrobcem LV Rūpnīcas iestatījumu maiņa DE Änderung der Werkseinstellungen NL Wijziging factory settings DK Ændring af fabriksindstillinger NO Forandring av fabrikkens forhåndsinnstillinger EE Tehaseseadete muutmine PL Zmiana nastaw fabrycznych RO Modificarea setărilor din fabrică ES Cambio de los ajustes de fábrica FI Tehdasasetusten muuttaminen RU Изменение...
Spare parts Náhradní díly Varaosat Rezerves daļas Piese de schimb Ersatzteile Pièces détachées Reserve-onderdelen Запасные части Reservedele Reservedeler Pezzi di ricambio Reservdelar Varuosad Części zamienne Atsarginės dalys Náhradné diely Piezas de recambio 2701F, 2711F 601319V 159053V 158726 158890 601500V 158727/10 158697 159684 159048V...
Seite 34
Spare parts Náhradní díly Varaosat Rezerves daļas Piese de schimb Ersatzteile Pièces détachées Reserve-onderdelen Запасные части Reservedele Reservedeler Pezzi di ricambio Reservdelar Varuosad Części zamienne Atsarginės dalys Náhradné diely Piezas de recambio 2703F, 2713F, 2705F, 2715F 601319V 159053V 158726 158890 601500V 158727/10 158697...
Seite 35
Spare parts Náhradní díly Varaosat Rezerves daļas Piese de schimb Ersatzteile Pièces détachées Reserve-onderdelen Запасные части Reservedele Reservedeler Pezzi di ricambio Reservdelar Varuosad Części zamienne Atsarginės dalys Náhradné diely Piezas de recambio 2701FT 601319V 159053V 158726 158890 601500V 158727/10 158697 159684 159048V 10 178780V...
Seite 36
Spare parts Náhradní díly Varaosat Rezerves daļas Piese de schimb Ersatzteile Pièces détachées Reserve-onderdelen Запасные части Reservedele Reservedeler Pezzi di ricambio Reservdelar Varuosad Części zamienne Atsarginės dalys Náhradné diely Piezas de recambio 2703FT, 2705FT 601319V 159053V 158726 158890 601500V 158727/10 158697 159684 159048V...
Installation RO Instalare CZ Montáž FI Asennus LV Montāža DE Montage FR Installation RU Установка NL Installatie DK Installation IT Montaggio SE Installation NO Montering EE Paigaldus PL Instalacja SK Inštalácia LT Montavimas ES Montaje F-Model Oval<15% max 30 R>30mm 9 mm SW 19 ø...
Seite 40
Operation CZ Funkce FI Toiminta LV Darbības princips RO Funcţionare DE Funktion FR Utilisation NL Bediening RU Принцип действия DK Betjening IT Funzionamento NO Funksjon SE Funktion EE Toimimine LT Veikimo principas PL Działanie SK Prevádzka ES Servicio Automatic Automatic Cold Cleaning cover LV Tīrīšanas vāks...
Changing the battery CZ Výměna baterie LV Baterijas maiņa DE Wechsel der Batterie NL Batterij vervangen DK Udskiftning af batteri NO Bytting av batteri EE Patarei vahetamine PL Wymiana baterii zasilającej ES Cambiar la batería RO Înlocuirea bateriei electrice FI Pariston vaihto RU Замена...
Cleaning/changing the litter filters LV Dubļu filtru tīrīšana/maiņa CZ Čištění/Výměna filtrů NL Reinigen/veranderen van de filters DE Reinigung/Wechsel der Filter NO Rensing/bytting av filter DK Rensning/udskiftning af filtre PL Czyszczenie/wymiana filtra EE Prügipüüduri puhastamine/vahetamine RO Curăţirea/înlocuirea filtrelor ES Limpieza/cambio de los filtros RU Очистка...
Seite 43
Servicing the solenoid valve CZ Servis solenoidového ventilu LV Elektromagnētiskā vārsta maiņa DE Wartung der Magnetventil NL Vervanging van de magneetventiel DK Rensning/udskiftning af magnetventilens NO Bytting av magnetventil EE Magnetventiili vahetamine PL Wymiana zaworu solenoidowego ES Cambiar la válvula magnética RO Întreţinerea valvei solenoidale FI Magneettiventtiilin vaihto RU Замена...
Seite 44
Servicing the solenoid valve membrane CZ Servis membrány solenoidového ventilu LV Elektromagnētiskā vārsta membrānas serviss DE Wartung der Magnetventilmembrane NL Onderhoud van het membraan DK Rensning/udskiftning af magnetventilens membran NO Rengjøring/bytting av magnetventilens membran EE Magnetventiili membraani hooldus PL Wymiana membrany zaworu solenoidowego ES Cambiar la membrana de la válvula magnética RO Întreţinerea membranei valvei solenoidale FI Magneettiventtiilin kalvon huolto...
Seite 45
Changing the temperature regulator CZ Výměna regulátor teploty LT Temperatūros reguliatoriaus keitimas DE Austausch des Temperatureinstellgriffes LV Temperatūras regulatora maiņa DK Udskiftning af temperatur reguleringsdel NL Vervangen van de temperatuur regeling EE Temperatuuriseadja vahetamine NO Bytting av temperaturreguleringsdel ES Sustitución del juego de regulación de PL Wymiana regulatora temperatury RO Înlocuirea regulatorului de temperaturăă...
Spare parts Náhradní díly Varaosat Rezerves daļas Piese de schimb Ersatzteile Pièces détachées Reserve-onderdelen Запасные части Reservedele Reservedeler Pezzi di ricambio Reservdelar Varuosad Części zamienne Atsarginės dalys Náhradné diely Piezas de recambio 1714F 199257/2 198473/2 600705/10 198330 199417V 199201V 199205V 199206V 601020V 10 600659V...
Seite 48
System to the OHSAS 18001 marketing, sales and after sales standard. The certificates are Oras is owned by Oras Invest, a services of faucets, accessories valid for manufacture, storage, family company. In September 2013 and valves.
