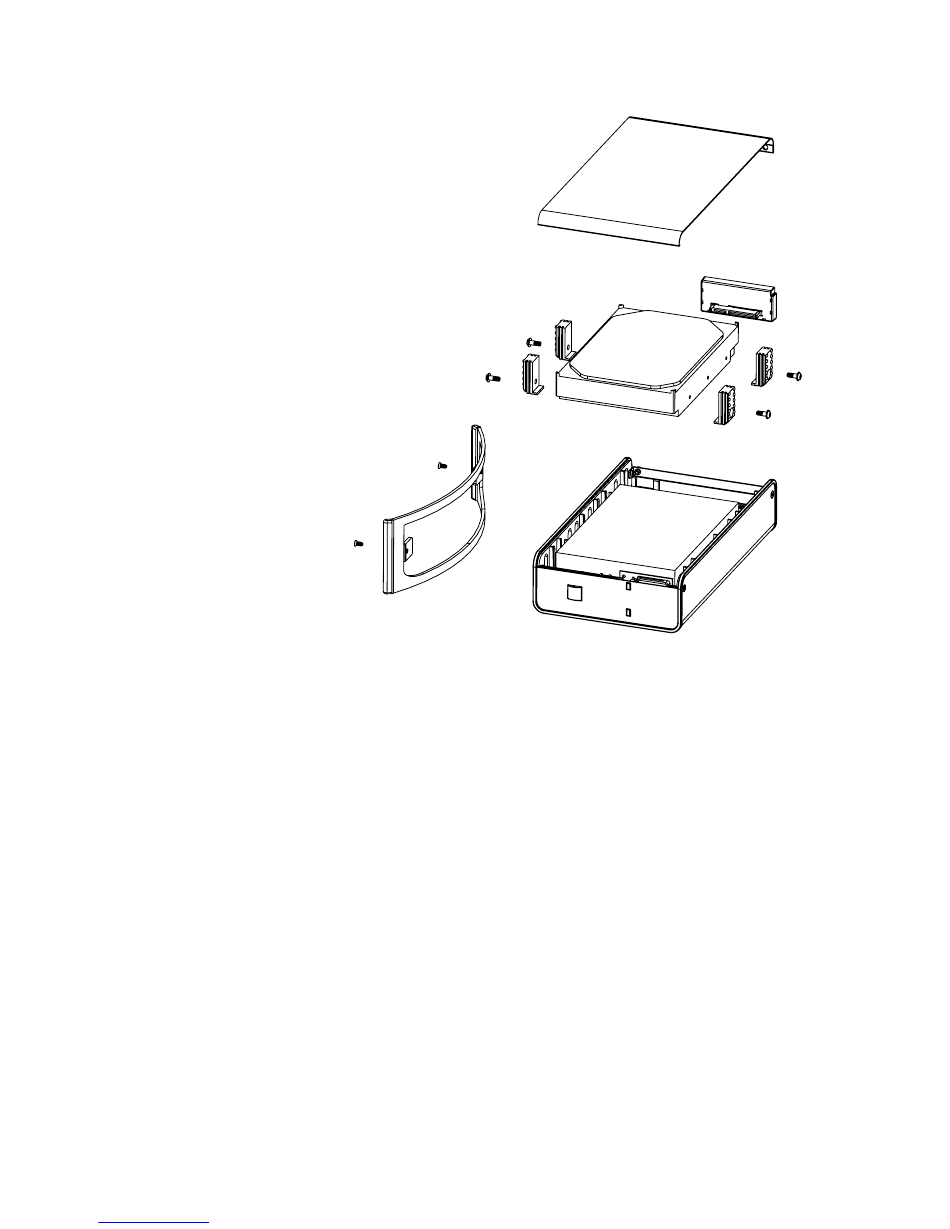

Assembly

1. Unscrew stand
2. Unscrew side cover
3. lift up side cover
4. Screw rubber sockets to hard disk
5. Insert HDD in case
6. Connect
6.1. SATA converter
6.2. IDE Cable and Power cable
7. Replace and screw tight the side cover
8. Replace and screw tight the stand
9. connect to
9.1. USB port of the computer by using
9.2. Network by connecting the RJ-45

Usage as external Storage drive

First come first serve

To use the Icy Box IB-NAS2001 as an external storage enclosure all is required is to
connect to the USB interface of a computer. The decision whether the IB-NAS2001 is
operating as an external storage case or as a NAS is determined by the first come first
serve principle. After turning on the IB-NAS2001 the interface which is connected defines
the operation mode.
Attention:
Once the IB-NAS2001 is connected to USB and power up it acts as a standard external
hard drive.
Attention:
Downloaded from www.Manualslib.com
the USB data cable
cable to either a computer or a
HUB
Do not connect the USB and the Network interface at the same time!
To make sure that the IB-NAS2001 operates appropriate as an
external hard drive and as a NAS it is necessary to initialize and
format the hard drive in the NAS modus as described in chapter
"Hard disk initialization" on page19. This is necessary because the
NAS modus needs 2 additional reserved partitions witch are created
during this procedure. To be able to write on that partition on a
Windows computer the chosen file system of the data partition has to be
FAT32.
