Operating Instructions
Wireless Reversing Camera System
Item No. 2267604
Intended use
The product is a license plate frame reversing camera system. Video with distance and parking lines informa-
tion is transmitted wirelessly to a monitor-receiver. Audible alerts indicate how close nearby objects are to the
rear. Installation is plug and play and the system is triggered when the reverse gear is selected.
Only the camera and sensor modules have an IP67 protection rating. They are protected against dust in-
gress and immersion in water up to 1 m deep. For all other components and wiring, contact with moisture
must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product
for purposes other than those described above, the product may be damaged. In addition, improper use can
result in or other hazards. Read the instructions carefully and store them in a safe place. Make this product
available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company names and prod-
uct names are trademarks of their respective owners. All rights reserved.
Delivery content
•
License plate holder (sensors + camera)
•
Monitor (receiver)
•
Wireless transmitter
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the
QR code shown. Follow the instructions on the website.
Explanation of symbols
The symbol with the exclamation mark in the triangle is used to indicate important information in
these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety instructions
Read the operating instructions
carefully and especially observe
the safety information. If you do not
follow the safety instructions and
information on proper handling in
this manual, we assume no liability
for any resulting personal injury or
damage to property. Such cases will
invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of
children and pets.
• Do not leave packaging material lying around
carelessly. This may become dangerous playing
material for children.
• Protect the appliance from extreme tempera-
tures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical
stress.
• If it is no longer possible to operate the product
safely, take it out of operation and protect it from
any accidental use. Safe operation can no longer
be guaranteed if the product:
•
Sealing ring
•
Speaker
•
Operating instructions
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor
ambient conditions or
- has been subjected to any serious transport-
related stresses.
• Please handle the product carefully. Jolts, im-
pacts or a fall even from a low height can damage
the product.
• Consult an expert when in doubt about the opera-
tion, safety or connection of the appliance.
• Maintenance, modifications and repairs must only
be completed by a technician or an authorised re-
pair centre.
• If you have questions which remain unanswered
by these operating instructions, contact our tech-
nical support service or other technical personnel.
• The reverse camera system is only a driver as-
sist. Always be alert to your surroundings, check
all rear view mirrors and blind spots when back-
ing up.
b) Connected devices
• Also observe the safety and operating instruc-
tions of any other devices which are connected
to the product.

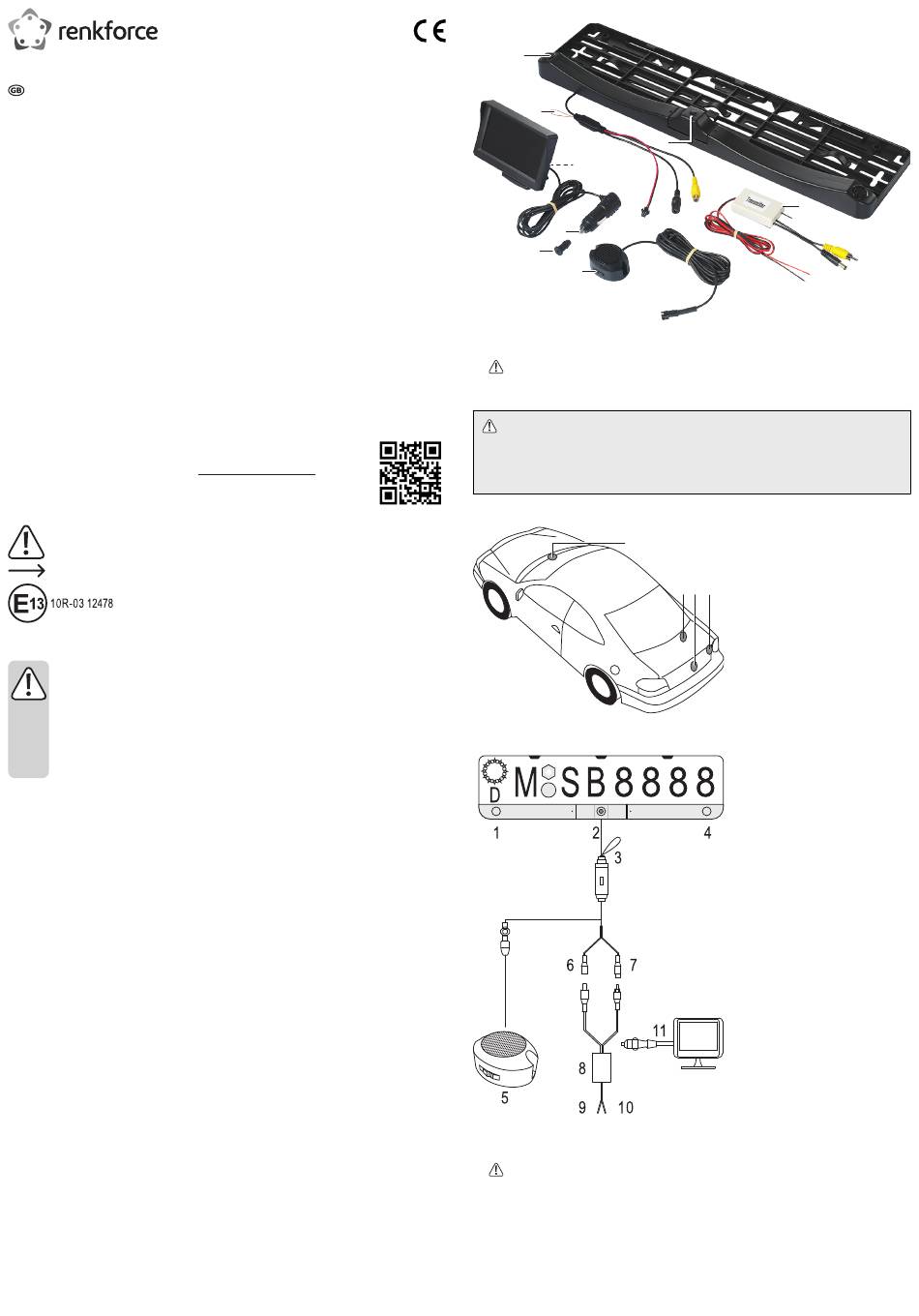

Overview
1
2
3
4
5
6
1 Sensor
3 Monitor settings buttons
2 PAL/NTSC system wire
4 Monitor power plug
Do not cut.
5 Sealing ring
Installation
Important
•
Make sure the vehicle electrics are switched off before installation.
•
Always use best wiring practice. Consult a specialist if in doubt about how to intall the system
correctly.
a) Location
A
b) Connection diagram
1 Left sensor
2 Camera
3
Do not cut system cable:
PAL (default) / NTSC (if cut wire)
4 Right sensor
5 Speaker
6 Camera power input (black)
7
8
6 Speaker: Off, Lo, Hi
7 Camera
8 Transmitter
A Monitor on dashboard
B Speaker in the car boot
C Transmitter / power supply
B C D
D License plate frame
7 Camera output (yellow)
8 Transmitter
9 Black wire to reversing light (GND)
10 Red wire to reversing light (+12 V).
11 Connect to auxiliary power outlet
