Overview

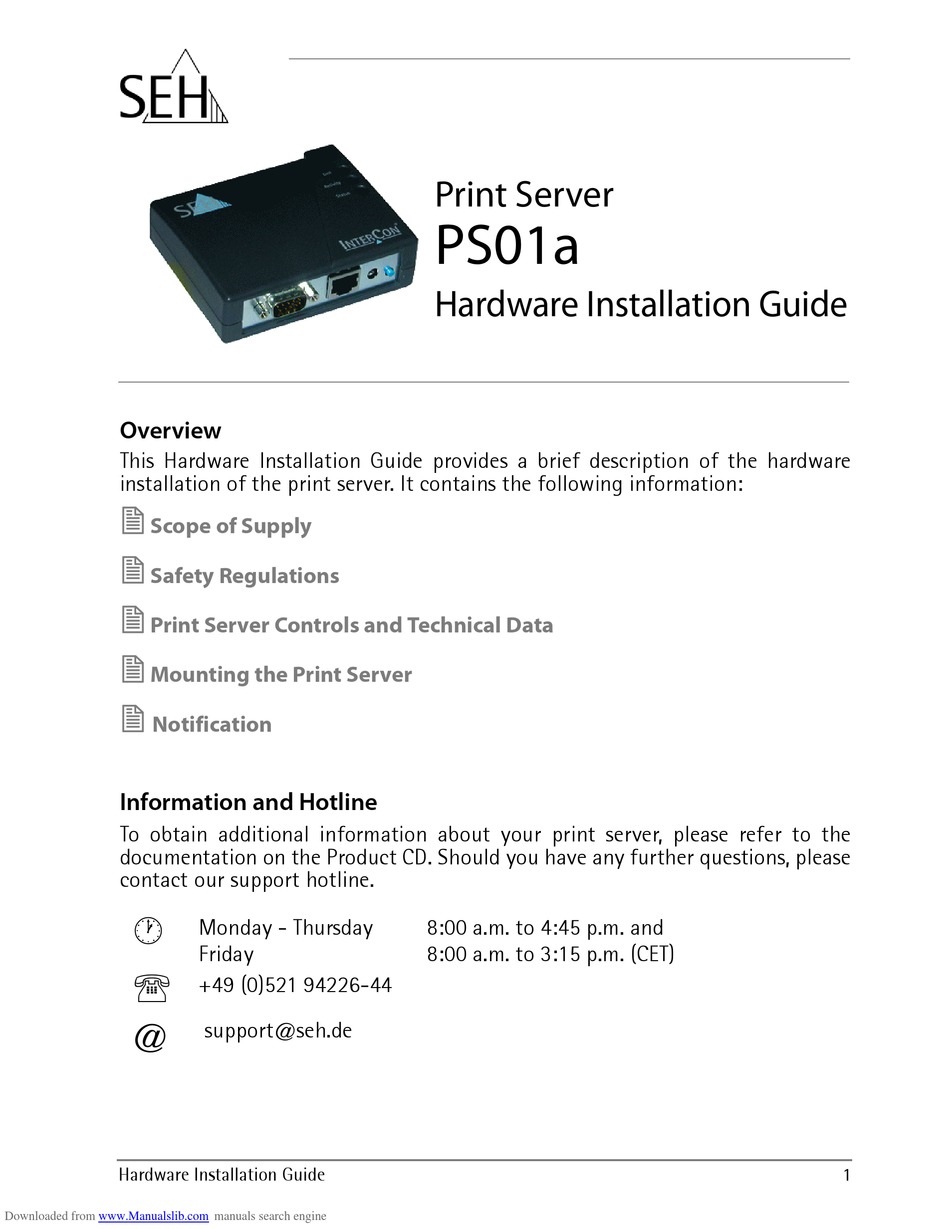

This Hardware Installation Guide provides a brief description of the hardware
installation of the print server. It contains the following information:
Scope of Supply
Safety Regulations
Print Server Controls and Technical Data
Mounting the Print Server
Notification
Information and Hotline
To obtain additional information about your print server, please refer to the
documentation on the Product CD. Should you have any further questions, please
contact our support hotline.
℡
@
Hardware Installation Guide
Downloaded from
www.Manualslib.com
Monday - Thursday
Friday
+49 (0)521 94226-44
support@seh.de
manuals search engine

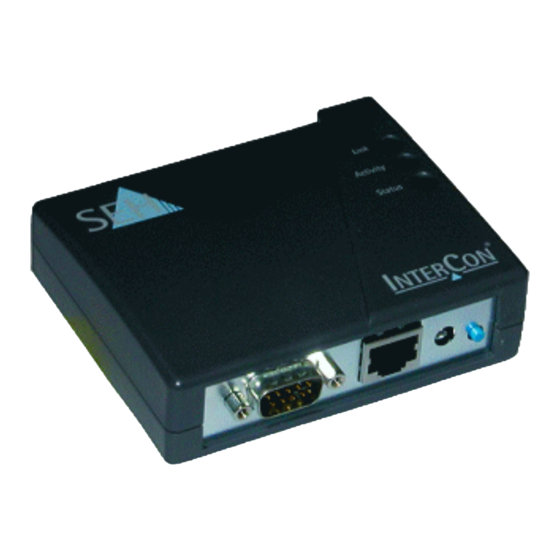

Print Server
PS01a
Hardware Installation Guide
8:00 a.m. to 4:45 p.m. and
8:00 a.m. to 3:15 p.m. (CET)
1
Werbung
Verwandte Anleitungen für SEH PS01a
Inhaltszusammenfassung für SEH PS01a
- Seite 1 Print Server PS01a Hardware Installation Guide Overview This Hardware Installation Guide provides a brief description of the hardware installation of the print server. It contains the following information: Scope of Supply Safety Regulations Print Server Controls and Technical Data Mounting the Print Server...
-
Seite 2: Scope Of Supply
- Installation Manuals (The pdf files provide a detailed description of the software installation under each of the supported operating systems.) - InterCon-NetTool (Administration tool), - SEH Printer Wizard (Printer Installation Wizard), - SEH Print Monitor, - SEH Private-MIB, - Adobe Reader... -
Seite 3: Safety Regulations
Safety Regulations English [en] Print servers are network interfaces for printers in office environments and are designed for the direct integration of printers into networks. Before starting the initial operation procedure of your device, please note the following safety regulations: •... - Seite 4 • Le périphérique doit être connecté et exploité uniquement en parfait état de fonctionnement. • Assurez-vous que personne ne trébuche sur les câbles. • Ne branchez aucune ligne téléphonique au connecteur RJ-45. Les connecteurs RJ-45 ne doivent être connectés qu'aux tensions SELV. Pour la connexion au connecteur RJ-45, seuls les câbles STP (catégorie 5 ou supérieur) peuvent être utilisés.
- Seite 5 Antes de colocar o seu dispositivo em funcionamento, observe os seguintes avisos de segurança: • Leia a documentação e certifique-se de que o seu sistema corresponde aos requisitos indicados. • O dispositivo não pode entrar em contacto com humidade ou líquidos. •...
- Seite 6 • Apparatet må kun drives med den medleverede strømforsyning. Suomi [fi] Tulostinpalvelimet ovat tulostimille tarkoitettuja, toimistoympäristössä käytettäviä verkkoliittymiä, ja niiden käyttötarkoitus on liittää tulostimet tietoverkkoihin. Ennen laitteen käyttöönottoa tulee ottaa huomioon seuraavat turvamääräykset: • Lue dokumentaatio ja varmista, että järjestelmäsi täyttää siinä esitetyt vaatimukset. •...
- Seite 7 • Μη συνδέετε καλώδια τηλεφώνου στο φις RJ-45. Σ’ αυτό επιτρέπεται μόνο η σύνδεση μικρής τάσης ασφαλείας. Για τη σύνδεση με το φις RJ-45 χρησιμοποιείτε αποκλειστικά καλώδια STP (κατηγορία 5 ή καλύτερα). Το περίβλημα καλωδίου και το περίβλημα του φις του καλωδίου πρέπει να ενώνονται επίπεδα. •...
- Seite 8 nurodymus dėl saugos: • Perskaitykite dokumentus ir įsitikinkite, ar jūsų sistema atitinka nurodytus reikalavi- mus. • Prietaisui kenkia drėgmė ar skystis. • Tik nepriekaištingos būklės priet aisą galima prijungti ir juo naudotis. • Ištieskite visus kabelius taip, kad niekas jų neužmintų ir už jų neužkliūtų. •...
- Seite 9 Polski [pl] Serwery druku stanowią interfejsy sieciowe dla drukarek w otoczeniach biurowych i służą do bezpośredniego integrowania drukarek w sieci. Przed uruchomieniem urzadzenie należy przestrzegać następujących przepisów bezpieczeństwa: • Przeczytać dokumentację i upewnić się, że posiadany system spełnia podane tam wymagania.
- Seite 10 használjon csak STP kábelt (5. kategóriához tartozót vagy jobbat). A kábel árnyékolás és a kábel dugó árnyékolás felületei megfelelően kell legyenek összenyomva. • A készüléket csak a hozzá adott tápegységgel szabad üzemeltetni. Malti [mt] Il-print servers huma interfaces ta' netwerk ghall-printers f'uffiććju u huma ddisinjati ghall- integrazzjoni diretta ta' printers ma' netwerks.
- Seite 11 • Amplasaţi toate cablurile în poziţii în care pericolul de împiedicare este exclus. • Nu conectaţi fire de telefon la fişa RJ-45. La aceasta este permisă numai conectarea tensiunilor de siguranţă scăzute. Pentru conectarea la fişa RJ-45, utilizaţi numai cablul STP (categoria 5 sau superioară).
- Seite 12 3) Status indicator LED (green): The LED shows that the print server is operational. 4) Status button 5) Connector for SEH power pack 6) RJ-45 connector for 100BaseTX and 10BaseT 7) 9-pin D-Sub connector as serial interface (COM1)
- Seite 13 Mounting the Print Server The print server allows printers and plotters to be connected to the network via the serial interface. Integrate the print server in the network Print Server Connect the print server to the printer Proceed as follows: 1.
- Seite 14 Connect the print server to the network Proceed as follows: 1. Connect the network cable (RJ-45) to the print server. 2. Connect the power pack's power cord to the print server. 3. Connect the printer's power cord to the printer. 4.
- Seite 15 Attach the print server to the printer (optional) You can attach the print server to the printer using the enclosed hook and loop fasteners. Proceed as follows: 1. Put both halves of the hook and loop fastener together. 2. Stick the hook and loop fasteners to the cavities at the bottom of the print server.
- Seite 16 Notification The latest version of the EC declaration of conformity can be downloaded from the homepage of SEH Computertechnik GmbH: http://www.seh-technology.com/services/ce-notification.html FCC - Class B Hardware Installation Guide Downloaded from www.Manualslib.com manuals search engine...
- Seite 17 FCC - Class B Hardware Installation Guide Downloaded from www.Manualslib.com manuals search engine...
- Seite 18 Hardware Installation Guide Downloaded from www.Manualslib.com manuals search engine...
- Seite 19 Hardware Installation Guide Downloaded from www.Manualslib.com manuals search engine...
- Seite 20 © 2011 SEH Computertechnik GmbH All trademarks, registered trademarks, logos and product names are property of their respective owners. This product uses ’Open Source Software’ . For further information, please contact http://www.seh.de. The product documentation gives you valuable information about your product.
