6. Connect the NJ2000G to the Network
The method for connecting the NJ2000G to the network is determined by
how the network cable is terminated, as described in step 5.
If the end of the cable is terminated with a female RJ-45 connector, use
•
one of the RJ-45 coupler cables included in the NJ2000G package to
connect the NJ2000G to the network cable.
If the end of the cable is terminated with a male connector, connect the
•
network cable directly into the Ethernet uplink port.
7. Mount the NJ2000G to the Wall

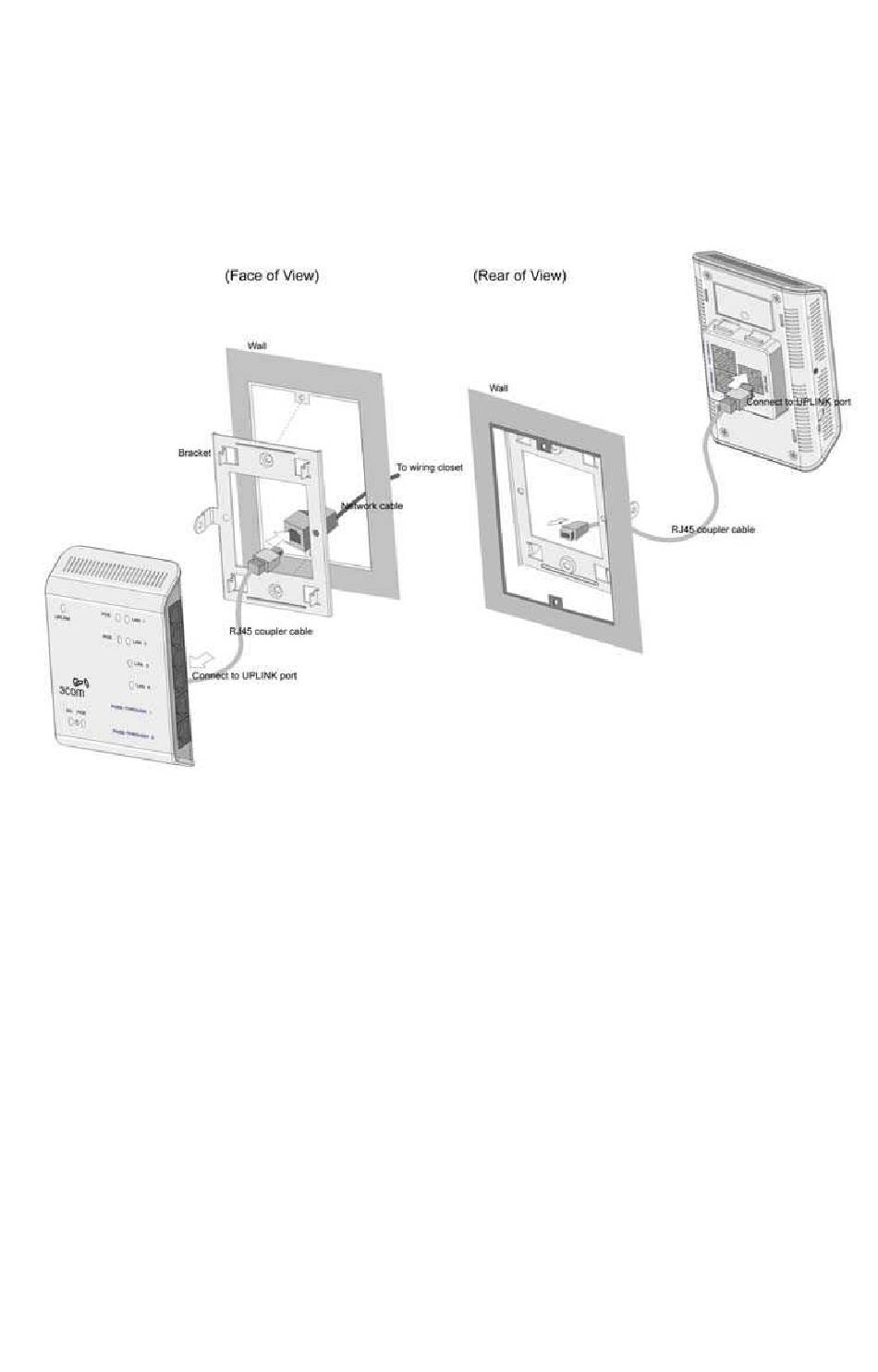

After you connect the NJ2000G to the network, follow these steps, as shown
in the next figure:
Mount the NJ2000G to the wall-mount bracket.
1
CAUTION: Make sure that the vents along the edges of the NJ2000G
faceplate are clear of any obstructions to allow airflow to vents.
Slide the NJ2000G onto the wall-mount bracket, ensuring that the 4
2
hooks on the bracket fit into the 4 slots on the back of the NJ2000G.
Pull the NJ2000G down to lock the hooks tightly into the slots. Be sure to
3
match the screwholes in the bracket and the NJ2000G. Secure the
NJ2000G using the T-10 torx screw that came in the NJ2000G package
