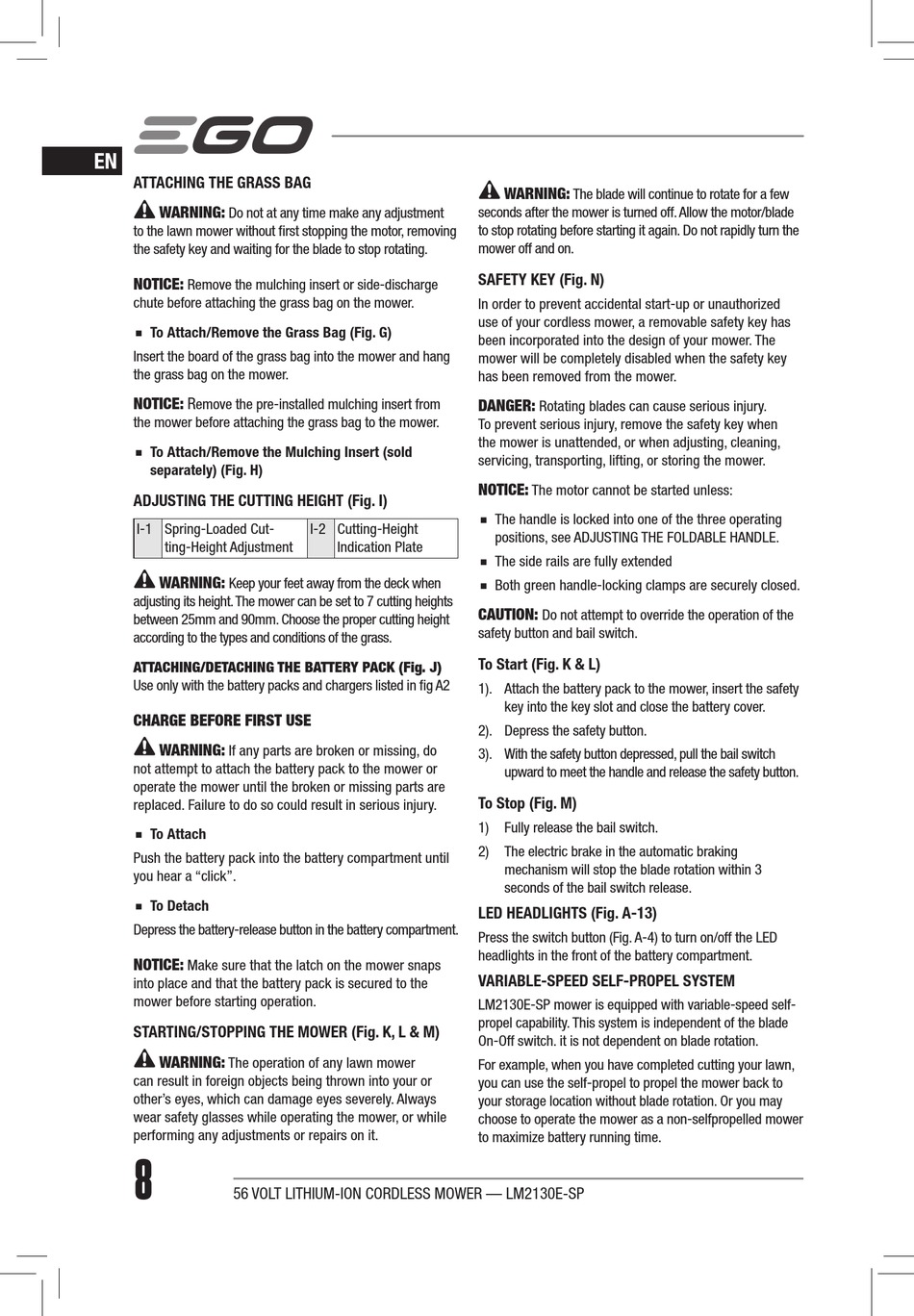

EGO Power+ LM2130E-SP Übersetzung Der Originalanleitungen Seite 8

EN
ATTACHING THE GRASS BAG
WARNING:
Do not at any time make any adjustment
to the lawn mower without first stopping the motor, removing
the safety key and waiting for the blade to stop rotating.
NOTICE:
Remove the mulching insert or side-discharge
chute before attaching the grass bag on the mower.
◾
To Attach/Remove the Grass Bag (Fig. G)
Insert the board of the grass bag into the mower and hang
the grass bag on the mower.
NOTICE: R
emove the pre-installed mulching insert from
the mower before attaching the grass bag to the mower.
◾
To Attach/Remove the Mulching Insert (sold
separately) (Fig. H)
ADJUSTING THE CUTTING HEIGHT (Fig. I)
I-1 Spring-Loaded Cut-
ting-Height Adjustment
WARNING:
Keep your feet away from the deck when
adjusting its height. The mower can be set to 7 cutting heights
between 25mm and 90mm. Choose the proper cutting height
according to the types and conditions of the grass.
ATTACHING/DETACHING THE BATTERY PACK (Fig. J)
Use only with the battery packs and chargers listed in fig A2
CHARGE BEFORE FIRST USE
WARNING:
If any parts are broken or missing, do
not attempt to attach the battery pack to the mower or
operate the mower until the broken or missing parts are
replaced. Failure to do so could result in serious injury.
◾
To Attach
Push the battery pack into the battery compartment until
you hear a "click".
◾
To Detach
Depress the battery-release button in the battery compartment.
NOTICE:
Make sure that the latch on the mower snaps
into place and that the battery pack is secured to the
mower before starting operation.
STARTING/STOPPING THE MOWER (Fig. K, L & M)
WARNING:
The operation of any lawn mower
can result in foreign objects being thrown into your or
other's eyes, which can damage eyes severely. Always
wear safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
8
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2130E-SP
seconds after the mower is turned off. Allow the motor/blade
to stop rotating before starting it again. Do not rapidly turn the
mower off and on.
SAFETY KEY (Fig. N)
In order to prevent accidental start-up or unauthorized
use of your cordless mower, a removable safety key has
been incorporated into the design of your mower. The
mower will be completely disabled when the safety key
has been removed from the mower.
DANGER:
To prevent serious injury, remove the safety key when
the mower is unattended, or when adjusting, cleaning,
servicing, transporting, lifting, or storing the mower.
NOTICE:
◾
I-2 Cutting-Height
Indication Plate
◾
◾
CAUTION:
safety button and bail switch.
To Start (Fig. K & L)
1). Attach the battery pack to the mower, insert the safety
2). Depress the safety button.
3). With the safety button depressed, pull the bail switch
To Stop (Fig. M)
1) Fully release the bail switch.
2) The electric brake in the automatic braking
LED HEADLIGHTS (Fig. A-13)
Press the switch button (Fig. A-4) to turn on/off the LED
headlights in the front of the battery compartment.
VARIABLE-SPEED SELF-PROPEL SYSTEM
LM2130E-SP mower is equipped with variable-speed self-
propel capability. This system is independent of the blade
On-Off switch. it is not dependent on blade rotation.
For example, when you have completed cutting your lawn,
you can use the self-propel to propel the mower back to
your storage location without blade rotation. Or you may
choose to operate the mower as a non-selfpropelled mower
to maximize battery running time.
WARNING:
The blade will continue to rotate for a few
Rotating blades can cause serious injury.
The motor cannot be started unless:
The handle is locked into one of the three operating
positions, see ADJUSTING THE FOLDABLE HANDLE.
The side rails are fully extended
Both green handle-locking clamps are securely closed.
Do not attempt to override the operation of the
key into the key slot and close the battery cover.
upward to meet the handle and release the safety button.
mechanism will stop the blade rotation within 3
seconds of the bail switch release.
