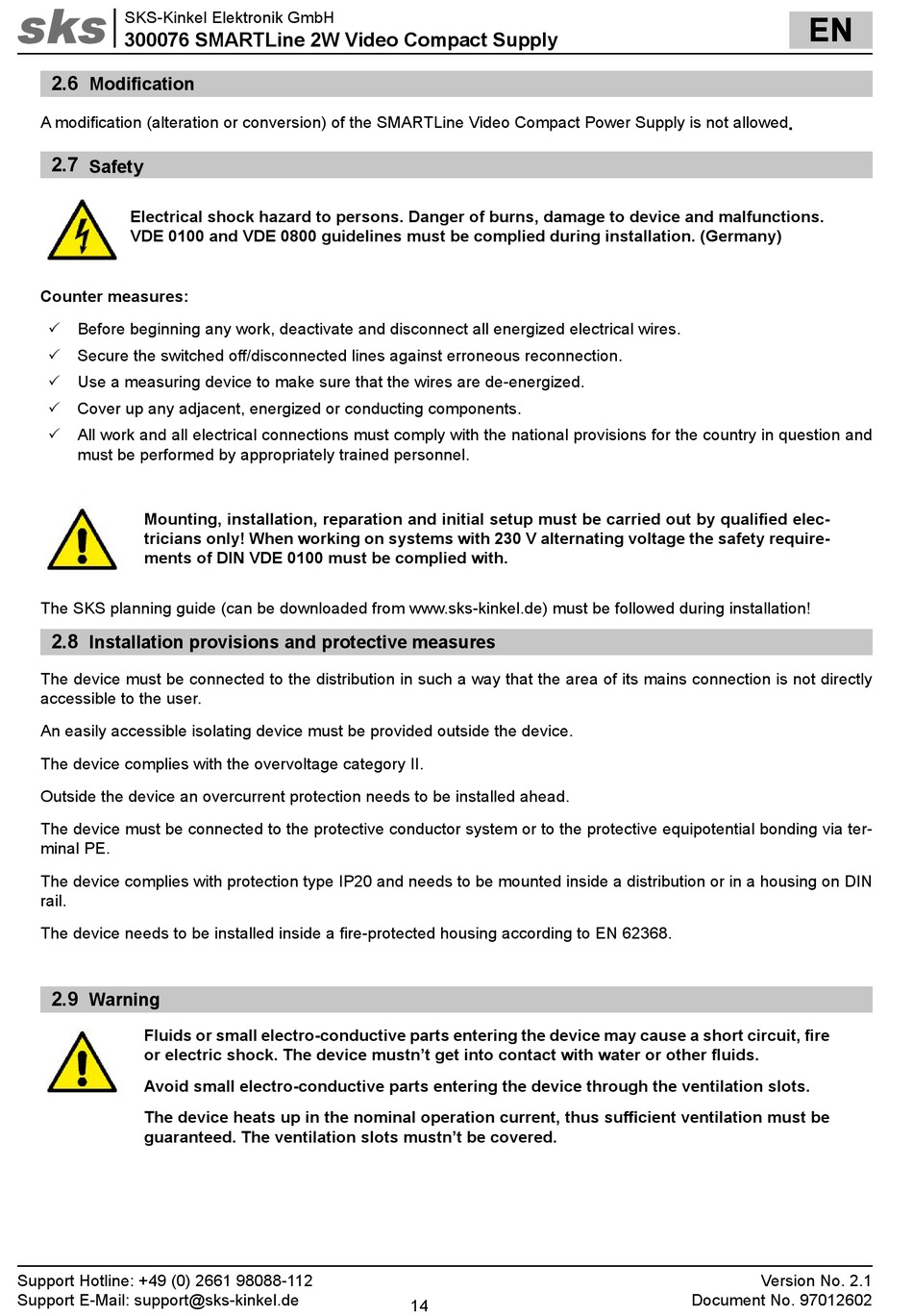

SKS-Kinkel Elektronik GmbH
300076 SMARTLine 2W Video Compact Supply
2.6

Modification

A modification (alteration or conversion) of the SMARTLine Video Compact Power Supply is not allowed
2.7
Safety
Electrical shock hazard to persons. Danger of burns, damage to device and malfunctions.
VDE 0100 and VDE 0800 guidelines must be complied during installation. (Germany)
Counter measures:
3 Before beginning any work, deactivate and disconnect all energized electrical wires.
3 Secure the switched off/disconnected lines against erroneous reconnection.
3 Use a measuring device to make sure that the wires are de-energized.
3 Cover up any adjacent, energized or conducting components.
3 All work and all electrical connections must comply with the national provisions for the country in question and
must be performed by appropriately trained personnel.
Mounting, installation, reparation and initial setup must be carried out by qualified elec-
tricians only! When working on systems with 230 V alternating voltage the safety require-
ments of DIN VDE 0100 must be complied with.
The SKS planning guide (can be downloaded from www.sks-kinkel.de) must be followed during installation!
2.8

Installation provisions and protective measures

The device must be connected to the distribution in such a way that the area of its mains connection is not directly
accessible to the user.
An easily accessible isolating device must be provided outside the device.
The device complies with the overvoltage category II.
Outside the device an overcurrent protection needs to be installed ahead.
The device must be connected to the protective conductor system or to the protective equipotential bonding via ter-
minal PE.
The device complies with protection type IP20 and needs to be mounted inside a distribution or in a housing on DIN
rail.
The device needs to be installed inside a fire-protected housing according to EN 62368.
2.9

Warning

Fluids or small electro-conductive parts entering the device may cause a short circuit, fire
or electric shock. The device mustn't get into contact with water or other fluids.
Avoid small electro-conductive parts entering the device through the ventilation slots.
The device heats up in the nominal operation current, thus sufficient ventilation must be
guaranteed. The ventilation slots mustn't be covered.
