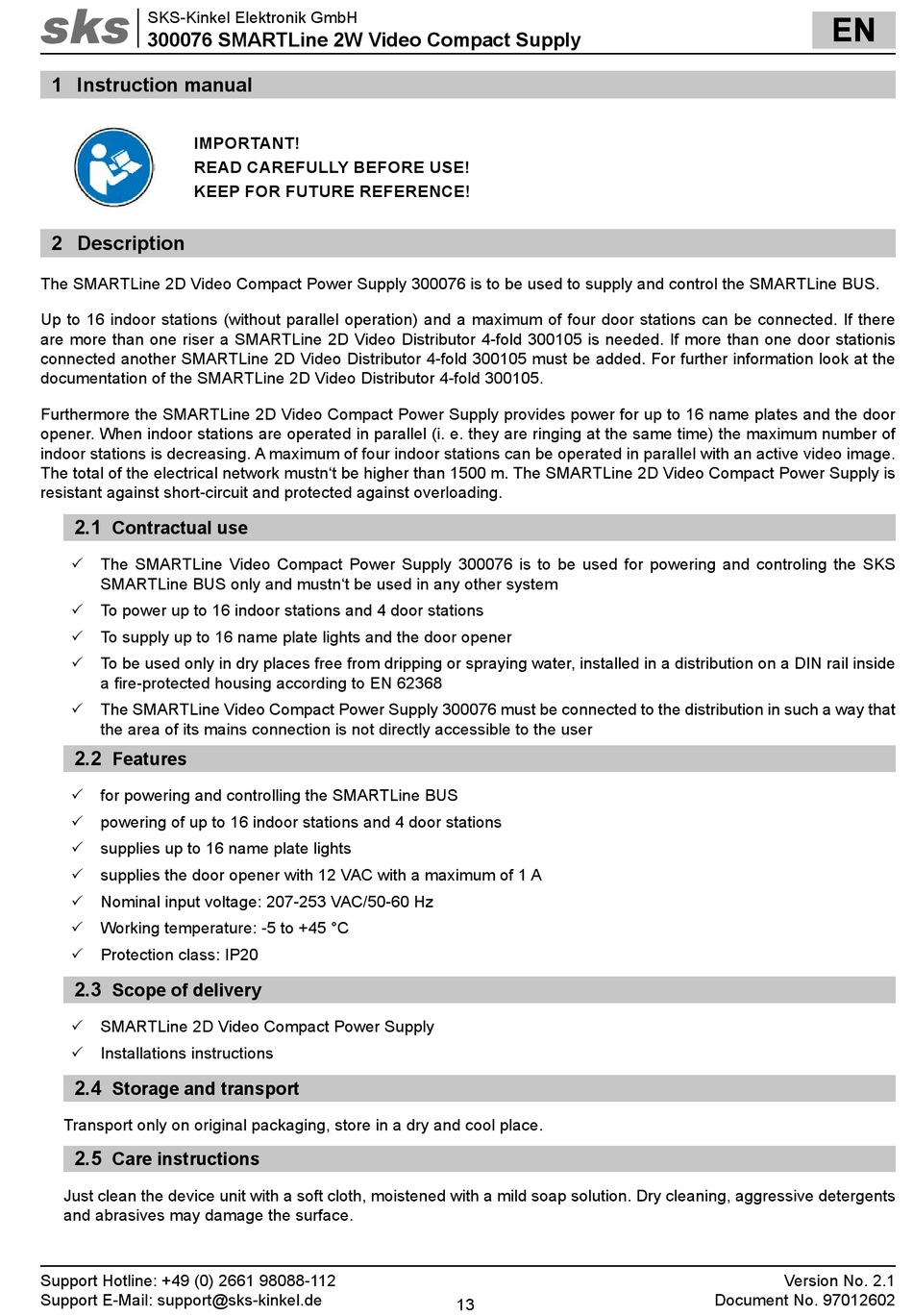

Instruction Manual; Description; Contractual Use; Features - sks SMARTLine 2D Installationsanleitung

SKS-Kinkel Elektronik GmbH
300076 SMARTLine 2W Video Compact Supply

1 Instruction manual

IMPORTANT!
READ CAREFULLY BEFORE USE!
KEEP FOR FUTURE REFERENCE!

2 Description

The SMARTLine 2D Video Compact Power Supply 300076 is to be used to supply and control the SMARTLine BUS.
Up to 16 indoor stations (without parallel operation) and a maximum of four door stations can be connected. If there
are more than one riser a SMARTLine 2D Video Distributor 4-fold 300105 is needed. If more than one door stationis
connected another SMARTLine 2D Video Distributor 4-fold 300105 must be added. For further information look at the
documentation of the SMARTLine 2D Video Distributor 4-fold 300105.
Furthermore the SMARTLine 2D Video Compact Power Supply provides power for up to 16 name plates and the door
opener. When indoor stations are operated in parallel (i. e. they are ringing at the same time) the maximum number of
indoor stations is decreasing. A maximum of four indoor stations can be operated in parallel with an active video image.
The total of the electrical network mustn't be higher than 1500 m. The SMARTLine 2D Video Compact Power Supply is
resistant against short-circuit and protected against overloading.
2.1

Contractual use

3 The SMARTLine Video Compact Power Supply 300076 is to be used for powering and controling the SKS
SMARTLine BUS only and mustn't be used in any other system
3 To power up to 16 indoor stations and 4 door stations
3 To supply up to 16 name plate lights and the door opener
3 To be used only in dry places free from dripping or spraying water, installed in a distribution on a DIN rail inside
a fire-protected housing according to EN 62368
3 The SMARTLine Video Compact Power Supply 300076 must be connected to the distribution in such a way that
the area of its mains connection is not directly accessible to the user
2.2

Features

3 for powering and controlling the SMARTLine BUS
3 powering of up to 16 indoor stations and 4 door stations
3 supplies up to 16 name plate lights
3 supplies the door opener with 12 VAC with a maximum of 1 A
3 Nominal input voltage: 207-253 VAC/50-60 Hz
3 Working temperature: -5 to +45 °C
3 Protection class: IP20
2.3

Scope of delivery

3 SMARTLine 2D Video Compact Power Supply
3 Installations instructions
2.4

Storage and transport

Transport only on original packaging, store in a dry and cool place.
2.5

Care instructions

Just clean the device unit with a soft cloth, moistened with a mild soap solution. Dry cleaning, aggressive detergents
and abrasives may damage the surface.
Support Hotline: +49 (0) 2661 98088-112
Support E-Mail: support@sks-kinkel.de
13
EN
Version No. 2.1
Document No. 97012602
