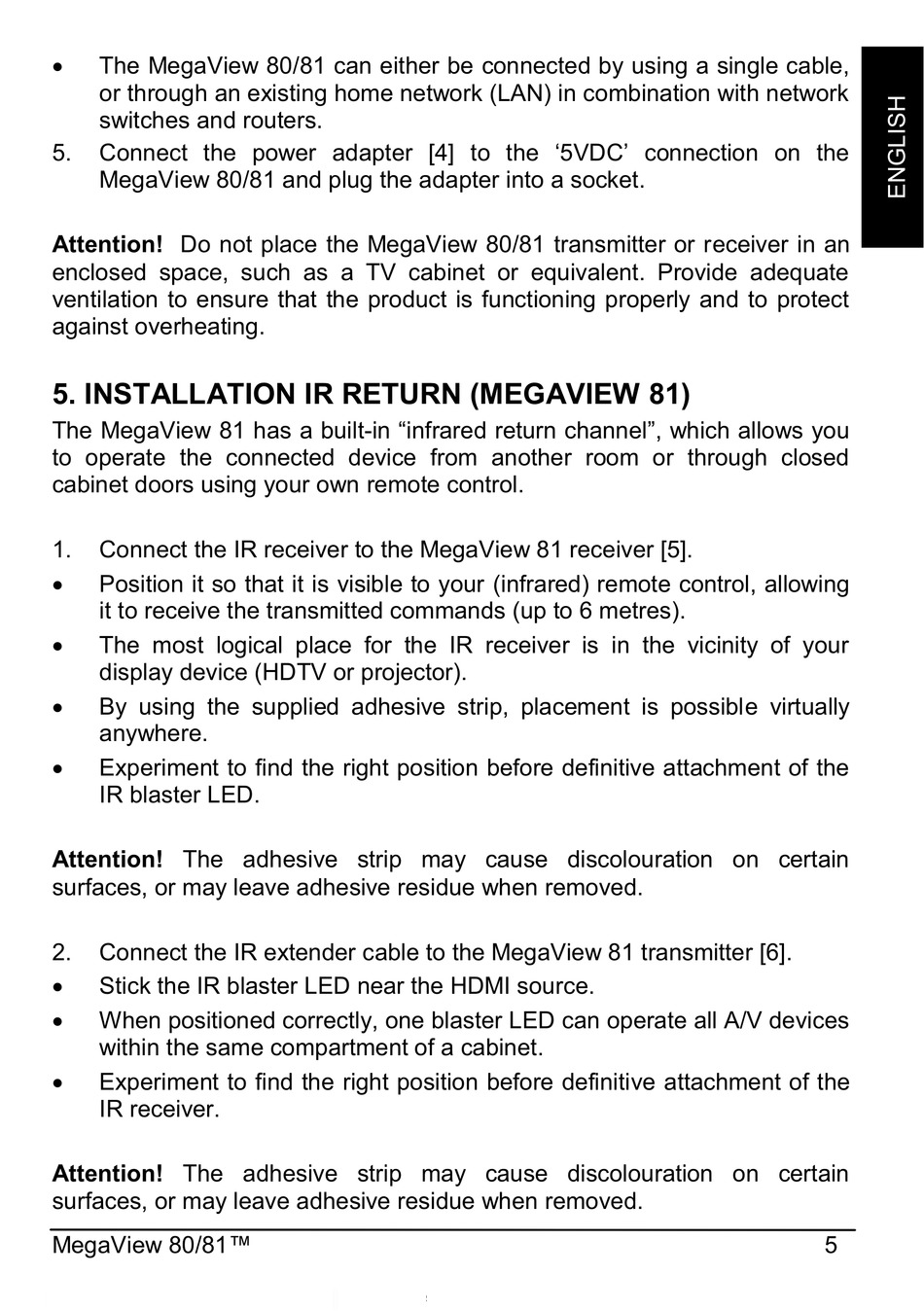

The MegaView 80/81 can either be connected by using a single cable,
or through an existing home network (LAN) in combination with network
switches and routers.
5. Connect the power adapter [4] to the '5VDC' connection on the
MegaView 80/81 and plug the adapter into a socket.
Attention! Do not place the MegaView 80/81 transmitter or receiver in an
enclosed space, such as a TV cabinet or equivalent. Provide adequate
ventilation to ensure that the product is functioning properly and to protect
against overheating.
5. INSTALLATION IR RETURN (MEGAVIEW 81)
The MegaView 81 has a built-in "infrared return channel", which allows you
to operate the connected device from another room or through closed
cabinet doors using your own remote control.
1. Connect the IR receiver to the MegaView 81 receiver [5].
x
Position it so that it is visible to your (infrared) remote control, allowing
it to receive the transmitted commands (up to 6 metres).
x
The most logical place for the IR receiver is in the vicinity of your
display device (HDTV or projector).
x
By using the supplied adhesive strip, placement is possible virtually
anywhere.
x
Experiment to find the right position before definitive attachment of the
IR blaster LED.
Attention! The adhesive strip may cause discolouration on certain
surfaces, or may leave adhesive residue when removed.
2. Connect the IR extender cable to the MegaView 81 transmitter [6].
x
Stick the IR blaster LED near the HDMI source.
x
When positioned correctly, one blaster LED can operate all A/V devices
within the same compartment of a cabinet.
x
Experiment to find the right position before definitive attachment of the
IR receiver.
Attention! The adhesive strip may cause discolouration on certain
surfaces, or may leave adhesive residue when removed.
MegaView 80/81™ 5
