j) Check the calibration

1. Double-click the image of the ruler in the saved images window (B7) to enter the "Image Preview" interface.
2. Select the measure
3. Select "Any Angle Line" from the drop down menu, then click and drag the start and end points across 1 mm on
the ruler.
4. Calibration is successful if the software ruler value is same as value of the measured increment on the ruler.

12. Output to T.V. / monitor

You can use your television screen or computer monitor as a large display for viewing. Refer to your T.V. or monitor
operating instructions for information about viewing HDMI inputs.
1. Connect one end of the supplied HDMI cable to the HDMI-out on the microscope, and the other end to an available
HDMI input on the T.V or monitor.
You can also connect via the TV-out port using an AV cable.
2. Press the power
3. Press mode button
- An icon indicates you are in photo mode.
- An icon indicates you are in video mode.
- An indicates you are in playback mode.
4. Press to enter setup.
5. Press ▲/ ▼to find "TV Out", then press OK.
6. Press ▲/ ▼to find "NTSC" or "PAL", then press OK.
7. Press to exit the microscope setup.

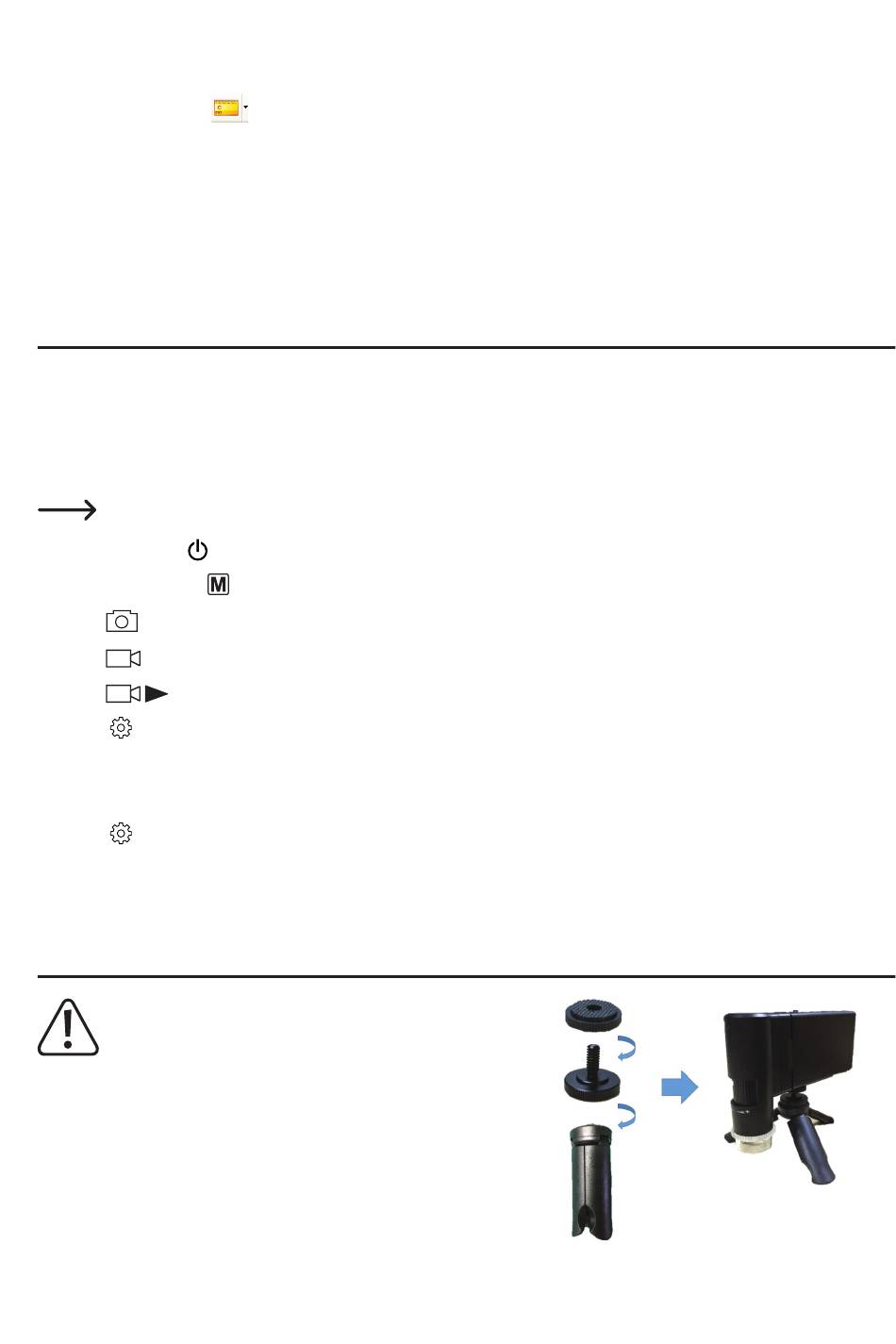

13. Tripod mount

Do not use force to screw the tripod into the mount as
this may damage the screw hole.
34
icon.
button to switch the microscope ON.
to switch between photo or video modes.
