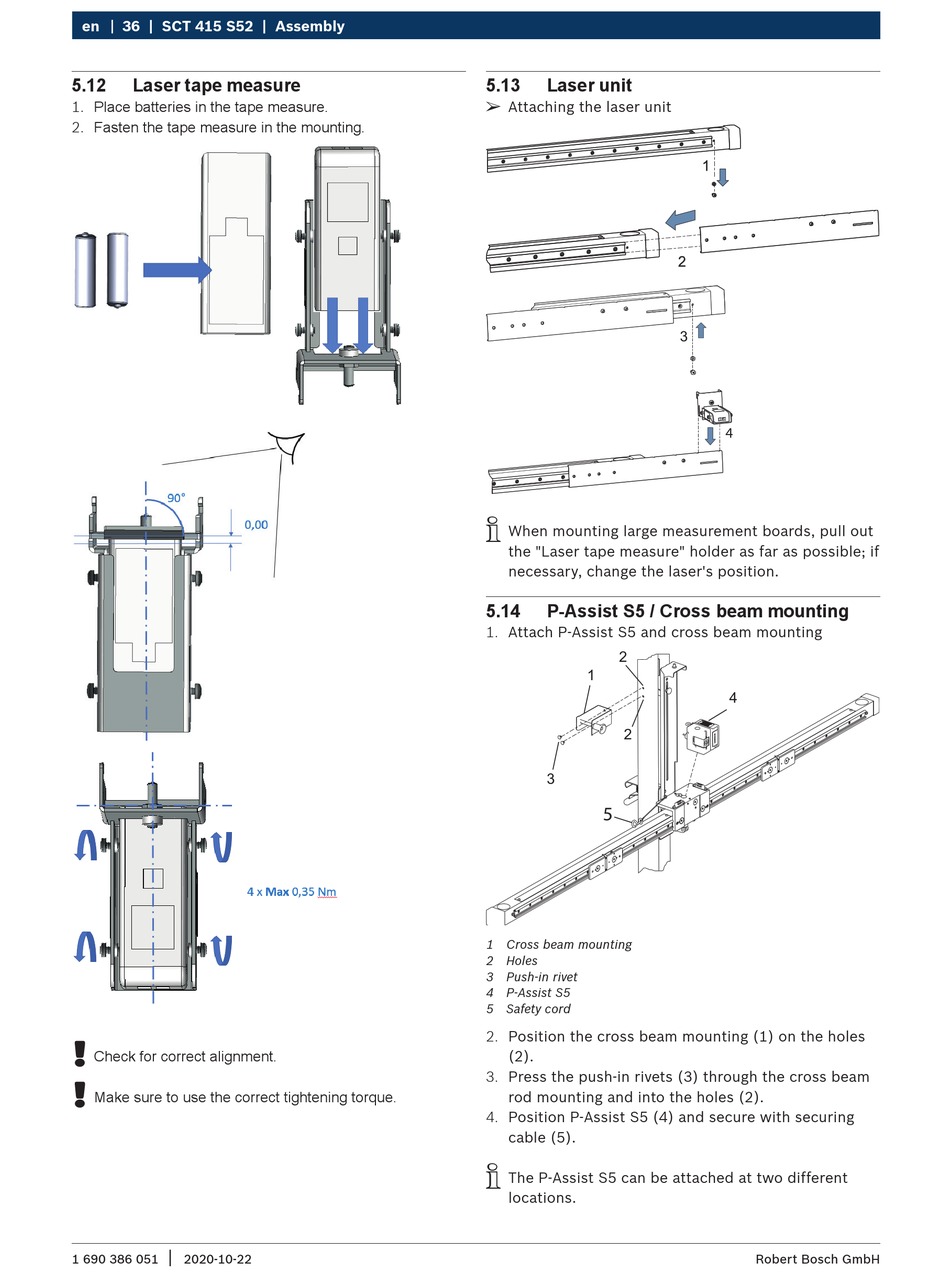

5.12 Laser tape measure
1. Place batteries in the tape measure.
2. Fasten the tape measure in the mounting.
!
Check for correct alignment.
!
Make sure to use the correct tightening torque.
|
1 690 386 051 2020-10-22
5.13

Laser unit

¶
Attaching the laser unit
i
When mounting large measurement boards, pull out
the "Laser tape measure" holder as far as possible; if
necessary, change the laser's position.
5.14

P-Assist S5 / Cross beam mounting

1. Attach P-Assist S5 and cross beam mounting
2
1
2
3
5
1 Cross beam mounting
2 Holes
3 Push-in rivet
4 P-Assist S5
5 Safety cord
2. Position the cross beam mounting (1) on the holes
(2).
3. Press the push-in rivets (3) through the cross beam
rod mounting and into the holes (2).
4. Position P-Assist S5 (4) and secure with securing
cable (5).
i
The P-Assist S5 can be attached at two different
locations.
3
4
4
