6. OPERATION
6.1 Connection to power supply, interfaces
1.
Main switch
(power switch)
2.
Fuse holder
(recessed)
3.
Power cable socket
(3-pin)
The rear panel of the TOPITEC
1. Main switch (power switch)
When this switch is ON, the TOPITEC
2. Fuse holder (recessed)
containing 2 fuses (5 x 20 mm, 10 A T (slow-acting, sand-filled)
3. Power socket (3-pin)
with phases and PE conductor; socket for conventional IEC-60320 C13/C14 cable plug. The power cable
must be connected to a properly earthed power socket with a PE conductor.
4. USB interface for maintenance purposes
Interface connection for the TOPITEC
5. Printer interface (RS 232, serial port)
The serial interface allows for the connection of an external printer for the printing of product labels or the
identification of dispensing jars.
6. PC interface (USB)
The USB port allows you to connect device to a PC or the apotec
34
TOPITEC
®
TOUCH User Manual | 11-2020
Warning
The TOPITEC
Touch must only be operated by competent personnel (operating personnel)
®
who have been properly instructed in its operation.
Note
Before starting production, ensure that there are no objects
(e.g. tools, residual material, etc.) near the
TOPITEC
TOUCH mixing system.
®

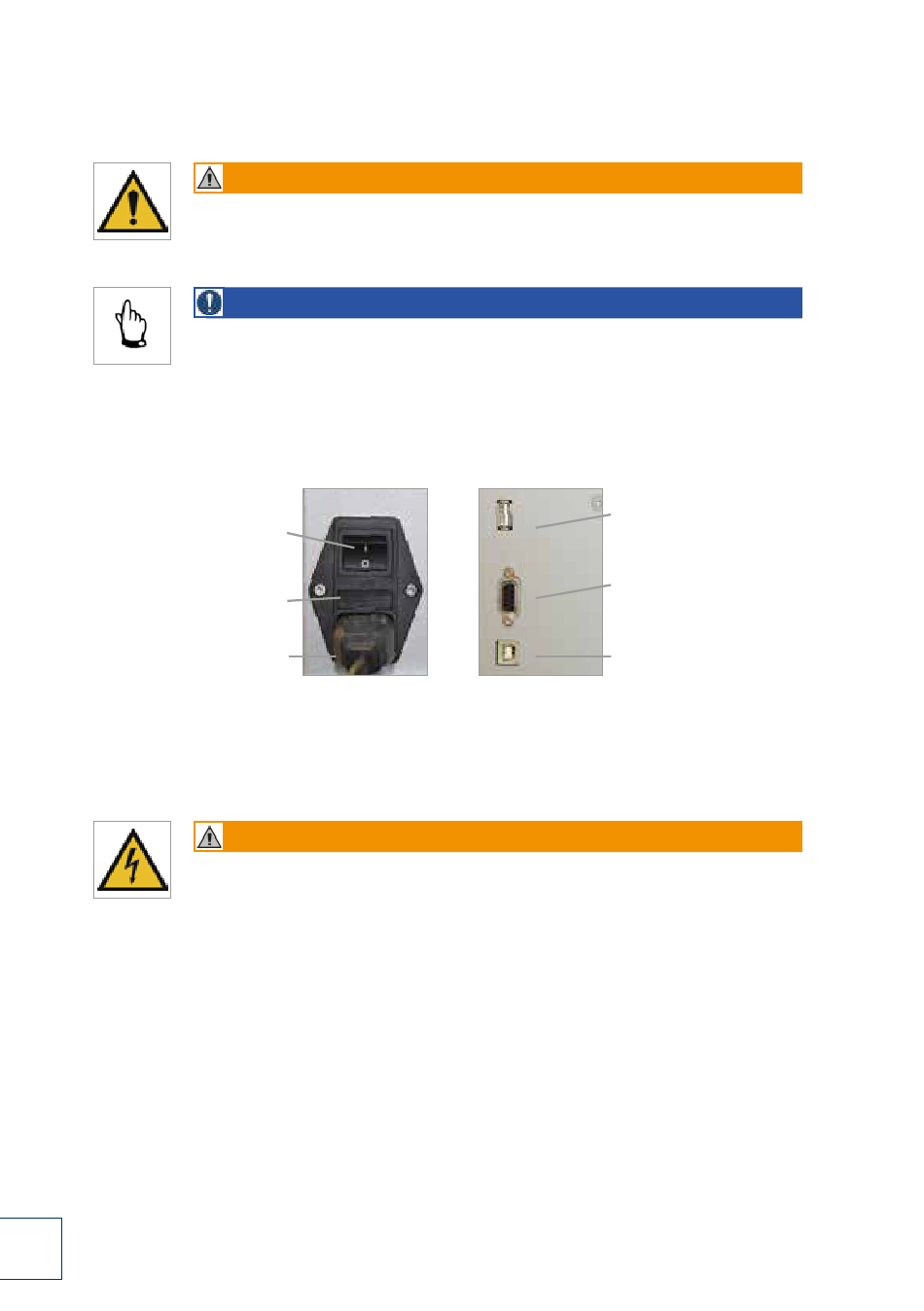

Fig. 6-1 Power connection, interfaces
TOUCH contains the following control devices and interfaces:
®
TOUCH is powered from the power mains.
®
Warning
If the main switch needs to be switched off for cleaning, maintenance or repair work,
always disconnect the power cable from the power socket
(to prevent inadvertent switching on).
TOUCH data memory or technician.
®
4.
USB interface for
maintenance purposes
5.
Printer interface
(RS 232, serial port)
6.
PC interface (USB)
.
connect.
®
